Description

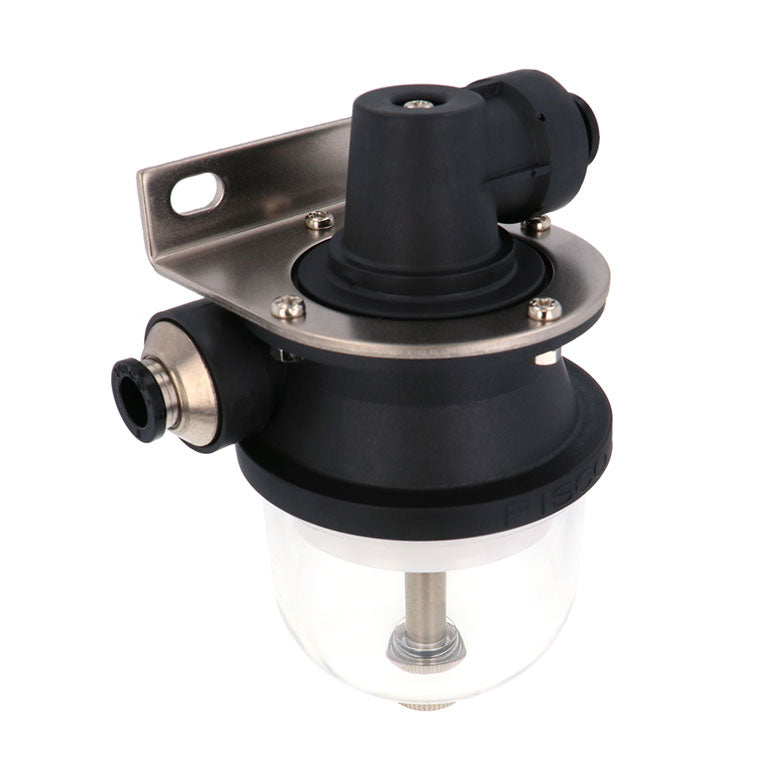

PISCO VFR20 — Vacuum Filter Large-Capacity Union Type, genuine PISCO product.
Overview
PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.
Key Features
- Genuine PISCO vacuum component
- Select by pad diameter, material and mounting
- Wide range of buffers and fittings
Specifications
| Part No. |
Material |
Fluid |
Operating Temperature Range (℃) |
Compatible Tube O.D. D (Ømm) |
Material (Element) |
Material (Rubber) |
Filtration Rating (μm) |
Mass (g) |
Operating Pressure Range (kPa) |
Body Material |
| VFR20-10-10 |
Filter Cover: PCTG Resin |
Air |
0 ~ 60 |
10 × 10 |
Polyvinyl Formal (PVF) |
Nitrile Rubber (NBR) |
10 |
224.5 |
-100 ~ 0 |
Brass + Electroless Nickel Plating + Polybutylene Terephthalate (PBT) |
| VFR20-12-12 |
Filter Cover: PCTG Resin |
Air |
0 ~ 60 |
12 × 12 |
Polyvinyl Formal (PVF) |
Nitrile Rubber (NBR) |
10 |
217 |
-100 ~ 0 |
Brass + Electroless Nickel Plating + Polybutylene Terephthalate (PBT) |
| VFR20-6-6 |
Filter Cover: PCTG Resin |
Air |
0 ~ 60 |
6 × 6 |
Polyvinyl Formal (PVF) |
Nitrile Rubber (NBR) |
10 |
232 |
-100 ~ 0 |
Brass + Electroless Nickel Plating + Polybutylene Terephthalate (PBT) |
| VFR20-8-8 |
Filter Cover: PCTG Resin |
Air |
0 ~ 60 |
8 × 8 |
Polyvinyl Formal (PVF) |
Nitrile Rubber (NBR) |
10 |
230.5 |
-100 ~ 0 |
Brass + Electroless Nickel Plating + Polybutylene Terephthalate (PBT) |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About PISCO
PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.
Ordering & Shipping
- Genuine PISCO product sourced through Korean distribution
- Lead time varies by model; most items ship within 2-3 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
