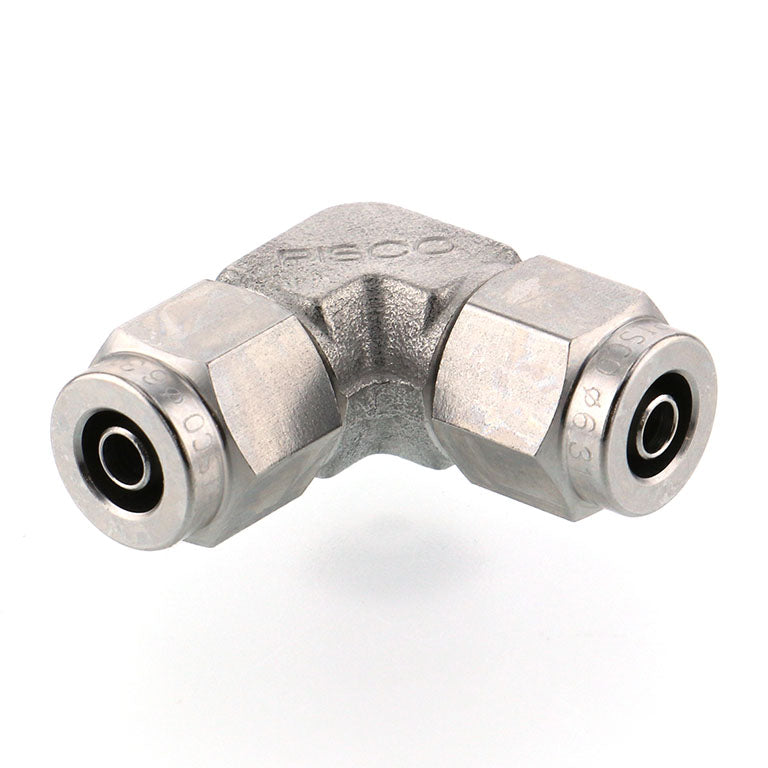

PISCO NSV — SUS316 Compression Fitting Union Elbow, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Operating Temperature Range (℃) |
Material |
Cross-Sectional Area (㎟) |
Max. Operating Pressure (MPa) |
RoHS Regulation |
Orifice Dia. (Ømm) |
Operating Vacuum Pressure (kPa) |
Width Across Flats H1 (mm) |
Fluid |
Mass (g) |
Dimension E1 (mm) |
Tube I.D. (Ømm) |
Shape |
Width Across Flats H2 (mm) |
Dimension C (mm) |
Tube O.D. (mm) |
Seal |
Dimension E2 (mm) |
Dimension B (mm) |
Type |
| NSV0420 |
Depends on tube specifications (no freezing). |
|
|
Per tube max. operating pressure. |
|
1.3 |
|
|
Air, Water, Other |
|
21.0 |
|
Union Elbow |
12.0 |
5.5 |
|
without Seal Tape |
11.5 |
27.9 |
Corrosion-Resistant Type |
| NSV0425 |
|
|
|
Per tube max. operating pressure. |
Supported |
1.4 |
-100.0 |
10.0 |
Air, Water, Other |
30.0 |
21.0 |
2.5 |
|
12.0 |
|
4.0 |
|
11.5 |
|
|
| NSV0640 |
|
SUS316 |
|
Per tube max. operating pressure. |
Supported |
3.0 |
|
12.0 |
|
33.0 |
|
4.0 |
Union Elbow |
12.0 |
|
6.0 |
|
11.5 |
27.9 |
|
| NSV0860 |
Depends on tube specifications (no freezing). |
SUS316 |
14.5 |
Per tube max. operating pressure. |
|
|
-100.0 |
14.0 |
|
65.0 |
25.0 |
|
Union Elbow |
|
7.0 |
|
|
|
34.8 |
Corrosion-Resistant Type |
| NSV1075 |
|
SUS316 |
|
Per tube max. operating pressure. |
|
6.0 |
-100.0 |
|
|
97.0 |
29.0 |
7.5 |
Union Elbow |
19.0 |
9.0 |
|
|
16.5 |
40.0 |
|
| NSV1080 |
Depends on tube specifications (no freezing). |
SUS316 |
|
|
Supported |
6.5 |
-100.0 |
|
|
|
29.0 |
8.0 |
Union Elbow |
|
9.0 |
|
|
16.5 |
40.0 |
Corrosion-Resistant Type |
| NSV1210 |
Depends on tube specifications (no freezing). |
SUS316 |
38.0 |
|
Supported |
8.5 |
-100.0 |
19.0 |
Air, Water, Other |
|
29.0 |
|
|
|
|
|
|
16.5 |
40.0 |
Corrosion-Resistant Type |
| NSV1290 |
Depends on tube specifications (no freezing). |
SUS316 |
30.0 |
Per tube max. operating pressure. |
|
7.5 |
|
19.0 |
Air, Water, Other |
103.0 |
29.0 |
|
|
19.0 |
|
12.0 |
|
|
|
Corrosion-Resistant Type |
| NSV1613 |
|
SUS316 |
64.0 |
Per tube max. operating pressure. |
Supported |
11.5 |
-100.0 |
|
Air, Water, Other |
146.0 |
32.0 |
13.0 |
|
23.0 |
|
|
|
18.0 |
|
|
