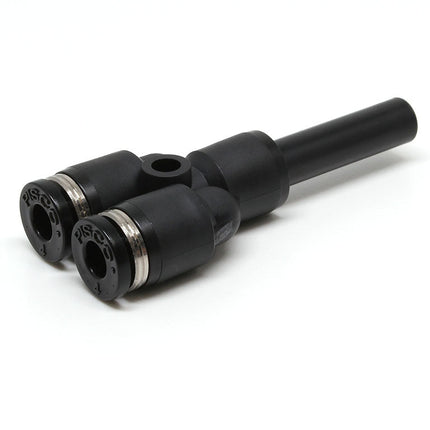

PISCO PWJ — Reducing Branch Union Y, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Dimension B (mm) |
Mass (g) |
Cross-Sectional Area (㎟) |
Dimension E (mm) |
Type |
Color |
Tube O.D. (mm) |
RoHS Regulation |
Dimension D (Ømm) |
Material (Metal Hood)/Finish |
Packaging |
Dimension J (mm) |
Compatible Fitting Dia. D2 (Ømm) |
Dimension P2 (Ømm) |
Shape |
Material |
Orifice Dia. (Ømm) |
Fluid |
Dimension P1 (Ømm) |
Max. Operating Pressure (MPa) |
Operating Vacuum Pressure (kPa) |
Dimension F (mm) |
Dimension C (mm) |
Operating Temperature Range (℃) |
| PWJ10-8 |
|
13.0 |
16.5 |
24.0 |
|
|
8.0 |
|
|
|
Standard Packaging |
14.0 |
10.0 |
|
|
|
|
Air, Water (conditional) |
14.5 |
|
-100.0 |
17.2 |
|
0 ~ 60 (no freezing) |
| PWJ10-8W |
57.6 |
|
16.5 |
24.0 |
|
Release Ring / Resin Body: Light Gray |
|
|
3.2 |
|
Standard Packaging |
|
|
15.0 |
|
|
5.9 |
Air, Water (conditional) |
14.5 |
|
|
17.2 |
18.1 |
|
| PWJ12-10 |
|
|
27.0 |
28.0 |
|
Release Ring / Resin Body: Black |
10.0 |
|
4.5 |
|
Standard Packaging |
18.0 |
|
|
Reducing Branch Union Y |
|
|
|
17.5 |
|
|
19.9 |
20.2 |
0 ~ 60 (no freezing) |
| PWJ12-10W |
67.2 |
22.0 |
27.0 |
|
|
|
|
|
|
Brass (Electroless Nickel Plating) |
|
|
|
18.0 |
|
Release Ring / POM Resin Body / PBT |
|
Air, Water (conditional) |
17.5 |
1.0 |
-100.0 |
19.9 |
|
0 ~ 60 (no freezing) |
| PWJ16-12 |
73.3 |
32.0 |
|
|
Standard Type |
|
12.0 |
Supported |
|
|
Standard Packaging |
|
|
|
Reducing Branch Union Y |
|
|
Air, Water (conditional) |
21.0 |
|
|
22.2 |
23.4 |
0 ~ 60 (no freezing) |
| PWJ16-12W |
73.3 |
32.0 |
55.0 |
30.0 |
Standard Type |
Release Ring / Resin Body: Light Gray |
12.0 |
|
|
Brass (Electroless Nickel Plating) |
|
20.0 |
16.0 |
|
Reducing Branch Union Y |
Release Ring / POM Resin Body / PBT |
|
|
|
|
|
|
|
|
| PWJ6-4 |
|
|
4.2 |
|
Standard Type |
|
4.0 |
Supported |
3.4 |
|
Standard Packaging |
|
|
|
|
|
2.6 |
Air, Water (conditional) |
10.0 |
1.0 |
-100.0 |
14.1 |
|
|
| PWJ8-6 |
54.2 |
8.8 |
|
22.5 |
|
Release Ring / Resin Body: Black |
6.0 |
|
|
|
|
12.0 |
|
12.8 |
Reducing Branch Union Y |
|
|
Air, Water (conditional) |
|
1.0 |
|
15.8 |
|
0 ~ 60 (no freezing) |
| PWJ8-6W |
|
8.8 |
10.0 |
|
|
Release Ring / Resin Body: Light Gray |
6.0 |
|
3.2 |
|
|
12.0 |
8.0 |
|
|
Release Ring / POM Resin Body / PBT |
|
Air, Water (conditional) |
|
1.0 |
|
|
17.0 |
0 ~ 60 (no freezing) |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
