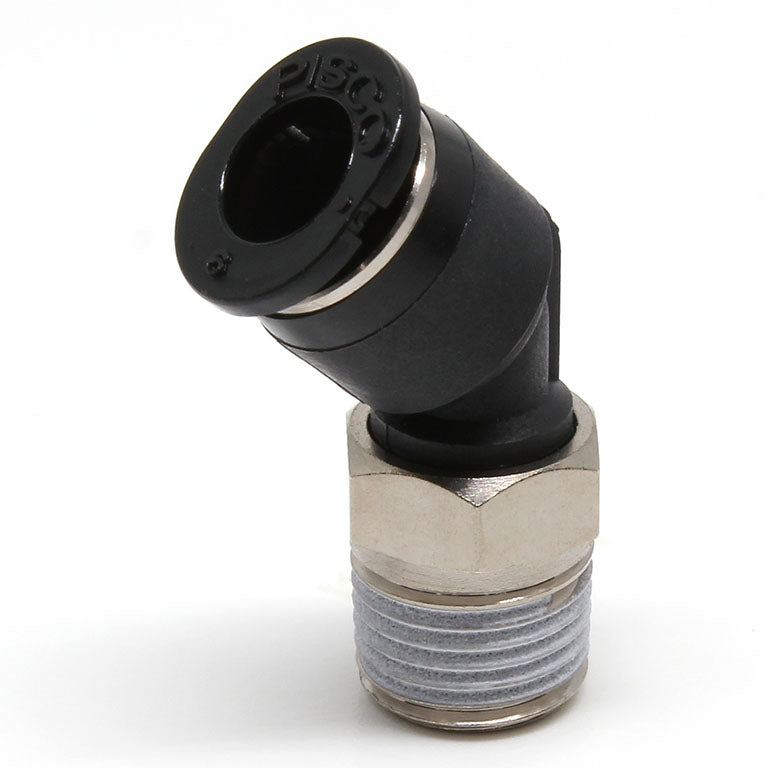

PISCO PLH — Mini Type 45 ° Elbow, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Dimension C (mm) |
Operating Temperature Range (℃) |
Type |
Max. Operating Pressure (MPa) |
Connection Thread |
Material (Metal Hood)/Finish |
Tube O.D. (mm) |
Dimension P (Ømm) |
Operating Vacuum Pressure (kPa) |
RoHS Regulation |
Shape |
Mass (g) |
Color |
Connection Thread Type |
Width Across Flats H (mm) |
Packaging |
Fluid |
Dimension B (mm) |
Dimension a (mm) |
Cross-Sectional Area (㎟) |
| PLH4-01M |
11.0 |
|
Mini Type |
1.0 |
|
|
4.0 |
8.0 |
|
|
45 ° Elbow |
6.1 |
Release Ring / Resin Body: Black |
R |
|
Standard Packaging |
Air |
|
|
5.0 |
| PLH4-01MC |
11.0 |
0 ~ 60 (no freezing) |
Mini Type |
1.0 |
|
Brass (Electroless Nickel Plating) |
4.0 |
8.0 |
-100.0 |
|
|
6.1 |
|
R |
|
Clean Room Packaging |
|
|
8.0 |
|
| PLH4-M5MC |
|
|
Mini Type |
|
M5X0.8 |
|
4.0 |
|
-100.0 |
|
45 ° Elbow |
3.3 |
|
M |
8.0 |
Clean Room Packaging |
Air |
12.3 |
3.2 |
|
| PLH4-M5MW |
11.0 |
|
|
1.0 |
M5X0.8 |
|
|
|
-100.0 |
|
45 ° Elbow |
3.3 |
|
|
8.0 |
Standard Packaging |
Air |
12.3 |
3.0 |
|
| PLH4-M6M |
11.0 |
0 ~ 60 (no freezing) |
Mini Type |
|
|
|
|
8.0 |
|
Supported |
45 ° Elbow |
3.6 |
Release Ring / Resin Body: Black |
|
8.0 |
Standard Packaging |
Air |
|
3.9 |
|
| PLH4-M6MC |
|
0 ~ 60 (no freezing) |
Mini Type |
|
|
Brass (Electroless Nickel Plating) |
|
8.0 |
|
|
45 ° Elbow |
|
Release Ring / Resin Body: Light Gray |
|
|
Clean Room Packaging |
Air |
13.3 |
4.0 |
4.0 |
| PLH6-01M |
11.6 |
|
|
1.0 |
43838.0 |
|
|
10.5 |
|
Supported |
45 ° Elbow |
|
Release Ring / Resin Body: Black |
|
10.0 |
Standard Packaging |
Air |
16.6 |
|
|
| PLH6-01MC |
11.6 |
0 ~ 60 (no freezing) |
Mini Type |
1.0 |
|
Brass (Electroless Nickel Plating) |
|
10.5 |
-100.0 |
|
|
6.8 |
|
|
|
Clean Room Packaging |
|
16.6 |
|
8.7 |
| PLH6-01MW |
11.6 |
0 ~ 60 (no freezing) |
|
1.0 |
|
Brass (Electroless Nickel Plating) |
6.0 |
10.5 |
-100.0 |
|
|
|
|
|
10.0 |
Standard Packaging |
Air |
16.6 |
|
8.7 |
| PLH6-02M |
11.6 |
0 ~ 60 (no freezing) |
|
1.0 |
43834.0 |
Brass (Electroless Nickel Plating) |
|
10.5 |
|
|
45 ° Elbow |
|
Release Ring / Resin Body: Black |
R |
|
|
|
21.6 |
11.0 |
|
| PLH6-02MW |
11.6 |
0 ~ 60 (no freezing) |
|
1.0 |
43834.0 |
Brass (Electroless Nickel Plating) |
6.0 |
|
-100.0 |
|
45 ° Elbow |
18.0 |
|
|
14.0 |
|
Air |
21.6 |
|
|
| PLH6-M5M |
|
0 ~ 60 (no freezing) |
Mini Type |
1.0 |
M5X0.8 |
|
6.0 |
10.5 |
|
Supported |
|
3.9 |
|
|
8.0 |
|
|
14.1 |
|
3.6 |
| PLH6-M5MC |
11.6 |
0 ~ 60 (no freezing) |
|
|
M5X0.8 |
|
6.0 |
10.5 |
-100.0 |
|
45 ° Elbow |
3.9 |
Release Ring / Resin Body: Light Gray |
M |
|
|
|
|
|
3.6 |
| PLH6-M5MW |
|
0 ~ 60 (no freezing) |
Mini Type |
|
M5X0.8 |
|
6.0 |
|
-100.0 |
|
45 ° Elbow |
3.9 |
|
M |
8.0 |
|
Air |
14.1 |
3.0 |
|
| PLH6-M6M |
|
|
|
1.0 |
M6X1 |
|
6.0 |
10.5 |
|
Supported |
|
4.2 |
Release Ring / Resin Body: Black |
M |
8.0 |
Standard Packaging |
Air |
15.1 |
|
|
| PLHJ6MW |
11.6 |
0 ~ 60 (no freezing) |
Mini Type |
1.0 |
|
|
|
|
-100.0 |
|
45 ° Elbow |
2.1 |
Release Ring / Resin Body: Light Gray |
|
|
Standard Packaging |
|
24.6 |
|
5.9 |
