Description

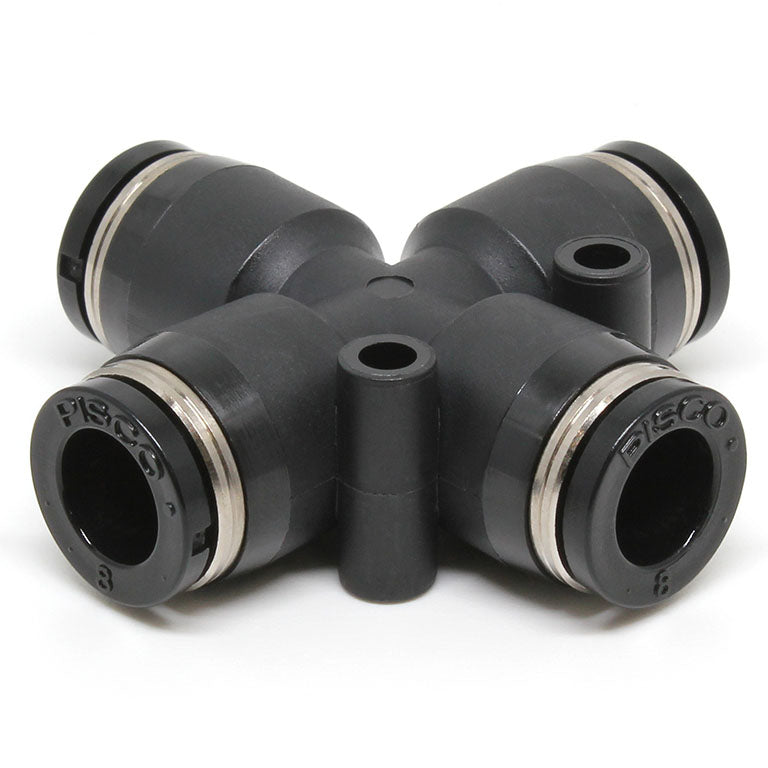

PISCO PZA — Mini Type Cross A, genuine PISCO product.
Overview
Genuine PISCO product.
Key Features
- Genuine PISCO product
- Confirm the full part number against your existing part before ordering
Specifications
| Part No. |
Type |
Color |
Release Ring Dimension (mm) |
Compatible Tube O.D. (inch) |
Dimension B1 (mm) |
Dimension F2 (mm) |
Dimension C (mm) |
Operating Temperature Range (℃) |
Dimension E (mm) |
Max. Operating Pressure (MPa) |
Fluid |
Dimension E2 (mm) |
Material (Metal Hood)/Finish |
Compatible Tube O.D. D (Ømm) |
Packaging |
Dimension F1 (mm) |
Dimension P (Ømm) |
Material |
Cross-Sectional Area (㎟) |
Shape |
Operating Vacuum Pressure (kPa) |
Mass (g) |
Dimension B2 (mm) |
| PZA1/8M |
Mini Type |
Black |
|
1 / 8B |
|
5.6 |
11.0 |
|
13.05 |
|
|
|
Brass (Electroless Nickel Plating) |
|
|
11.2 |
8.0 |
Release Ring / POM Resin Body / PBT |
4.8 |
|
|
4.5 |
|
| PZA1/8MW |
Mini Type |
Light Gray |
9.8X7.8 |
|
|
5.6 |
11.0 |
|
13.05 |
|
|
|
Brass (Electroless Nickel Plating) |
|
|
11.2 |
8.0 |
Release Ring / POM Resin Body (PBT) |
|
|
-100.0 |
4.5 |
|
| PZA3M |
|
Black |
9.8 × 7.8 |
|
|
5.6 |
11.0 |
0 ~ 60 (no freezing) |
|
|
Air |
13.05 |
|
|
|
11.2 |
8.0 |
|
|
Mini Type Cross A |
-100.0 |
|
26.1 |
| PZA3MW |
Mini Type |
|
|
|
|
|
11.0 |
0 ~ 60 (no freezing) |
13.05 |
1.0 |
Air |
|
|
3.0 |
Standard Packaging |
11.2 |
8.0 |
|
|
Mini Type Cross A |
-100.0 |
|
|
| PZA4MW |
Mini Type |
Light Gray |
9.8X7.8 |
|
26.1 |
5.6 |
11.0 |
|
|
|
Air |
|
Brass (Electroless Nickel Plating) |
|
Standard Packaging |
|
|
Release Ring / POM Resin Body (PBT) |
|
|
-100.0 |
4.3 |
|
| PZA6MW |
|
|
11.8X9.8 |
|
29.9 |
6.6 |
|
0 ~ 60 (no freezing) |
14.95 |
1.0 |
Air |
|
|
6.0 |
Standard Packaging |
|
|
Release Ring / POM Resin Body (PBT) |
|
Mini Type Cross A |
|
|
29.9 |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About PISCO
PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.
Ordering & Shipping
- Genuine PISCO product sourced through Korean distribution
- Lead time varies by model; most items ship within 2-3 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
