PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
| Part No. |
Shape |
Type |
Material (Thread) |
Seal |
Max. Operating Pressure (MPa) |
Fluid |
Rubber Part Material |
Compatible Tube O.D. D (Ømm) |
Operating Vacuum Pressure (kPa) |
Operating Temperature Range (℃) |
Mass (g) |
Packaging |
Operating Pressure (MPa) |
Tube O.D. (mm) |
| PPU10-C |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
EPDM |
|
-100.0 |
0 ~ 80 (no freezing) |
13.0 |
Clean Room Packaging |
|
10.0 |
| PPU10-F |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
FKM |
|
-100.0 |
0 ~ 80 (no freezing) |
13.0 |
Standard Packaging |
|
10.0 |
| PPU10-F-C |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
FKM |
|
-100.0 |
0 ~ 80 (no freezing) |
13.0 |
Clean Room Packaging |
|
10.0 |
| PPU10-HN |
Union Straight |
|
PP (Polypropylene) |
Thread Locking, without Seal Tape |
0.9 |
Air, Water (conditional) Other Chemicals (conditional) |
EPDM |
10.0 |
-100.0 |
0 ~ 80 |
|
Standard Packaging |
0.9(0 ~ 20 ℃) |
|
| PPU12 |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
EPDM |
|
-100.0 |
0 ~ 80 (no freezing) |
19.0 |
Standard Packaging |
|
12.0 |
| PPU12-C |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
EPDM |
|
-100.0 |
0 ~ 80 (no freezing) |
19.0 |
Clean Room Packaging |
|
12.0 |
| PPU12-F |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
FKM |
|
-100.0 |
0 ~ 80 (no freezing) |
19.0 |
Standard Packaging |
|
12.0 |
| PPU12-F-C |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
FKM |
|
-100.0 |
0 ~ 80 (no freezing) |
19.0 |
Clean Room Packaging |
|
12.0 |
| PPU12-HN |
Union Straight |
|
PP (Polypropylene) |
Thread Locking, without Seal Tape |
0.9 |
Air, Water (conditional) Other Chemicals (conditional) |
EPDM |
12.0 |
-100.0 |
0 ~ 80 |
|
Standard Packaging |
0.9(0 ~ 20 ℃) |
|
| PPU4-C |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
EPDM |
|
-100.0 |
0 ~ 80 (no freezing) |
4.0 |
Clean Room Packaging |
|
4.0 |
| PPU4-F |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
FKM |
|
-100.0 |
0 ~ 80 (no freezing) |
4.0 |
Standard Packaging |
|
4.0 |
| PPU4-F-C |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
FKM |
|
-100.0 |
0 ~ 80 (no freezing) |
4.0 |
Clean Room Packaging |
|
4.0 |
| PPU4-HN |
Union Straight |
|
PP (Polypropylene) |
Thread Locking, without Seal Tape |
0.9 |
Air, Water (conditional) Other Chemicals (conditional) |
EPDM |
4.0 |
-100.0 |
0 ~ 80 |
|
Standard Packaging |
0.9(0 ~ 20 ℃) |
|

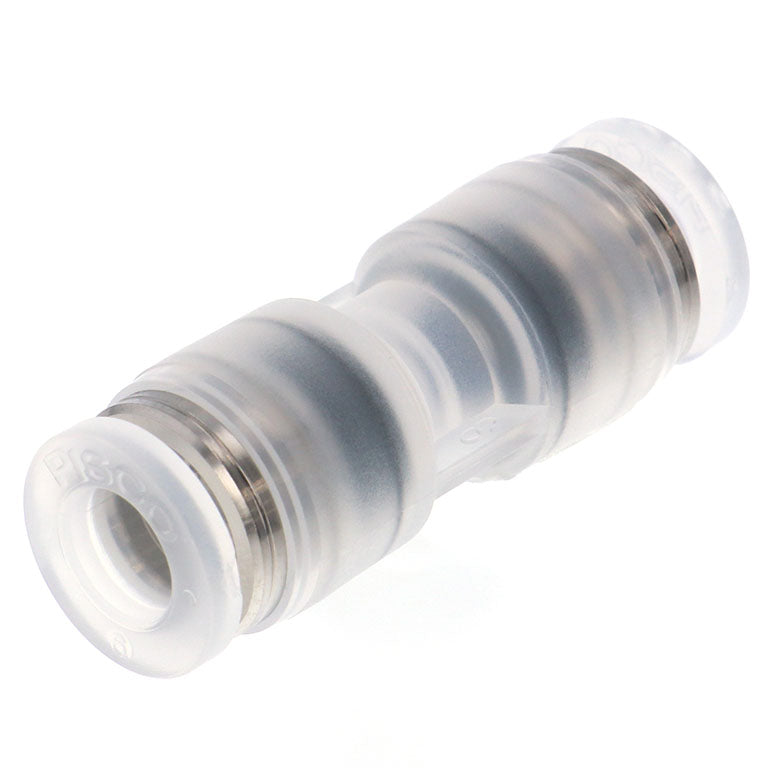

| PPU6-C |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
EPDM |
|
-100.0 |
0 ~ 80 (no freezing) |
5.5 |
Clean Room Packaging |
|
6.0 |
| PPU6-F |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
FKM |
|
-100.0 |
0 ~ 80 (no freezing) |
5.5 |
Standard Packaging |
|
6.0 |
| PPU6-F-C |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
FKM |
|
-100.0 |
0 ~ 80 (no freezing) |
5.5 |
Clean Room Packaging |
|
6.0 |
| PPU6-HN |
Union Straight |
|
PP (Polypropylene) |
Thread Locking, without Seal Tape |
0.9 |
Air, Water (conditional) Other Chemicals (conditional) |
EPDM |
6.0 |
-100.0 |
0 ~ 80 |
|
Standard Packaging |
0.9(0 ~ 20 ℃) |
|
| PPU8-C |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
EPDM |
|
-100.0 |
0 ~ 80 (no freezing) |
8.0 |
Clean Room Packaging |
|
8.0 |
| PPU8-F |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
FKM |
|
-100.0 |
0 ~ 80 (no freezing) |
8.0 |
Standard Packaging |
|
8.0 |
| PPU8-F-C |
Union Straight |
Clean Environment Type |
PP (Polypropylene) |
Thread Locking, without Seal Tape |
1.0(at 0 ~ 20 ℃) |
Air, Water (conditional), Other (conditional) |
FKM |
|
-100.0 |
0 ~ 80 (no freezing) |
8.0 |
Clean Room Packaging |
|
8.0 |
| PPU8-HN |
Union Straight |
|
PP (Polypropylene) |
Thread Locking, without Seal Tape |
0.9 |
Air, Water (conditional) Other Chemicals (conditional) |
EPDM |
8.0 |
-100.0 |
0 ~ 80 |
|
Standard Packaging |
0.9(0 ~ 20 ℃) |
|
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
