PISCO Tube Fitting PP Branch Wye (SUS304), PPX

Description

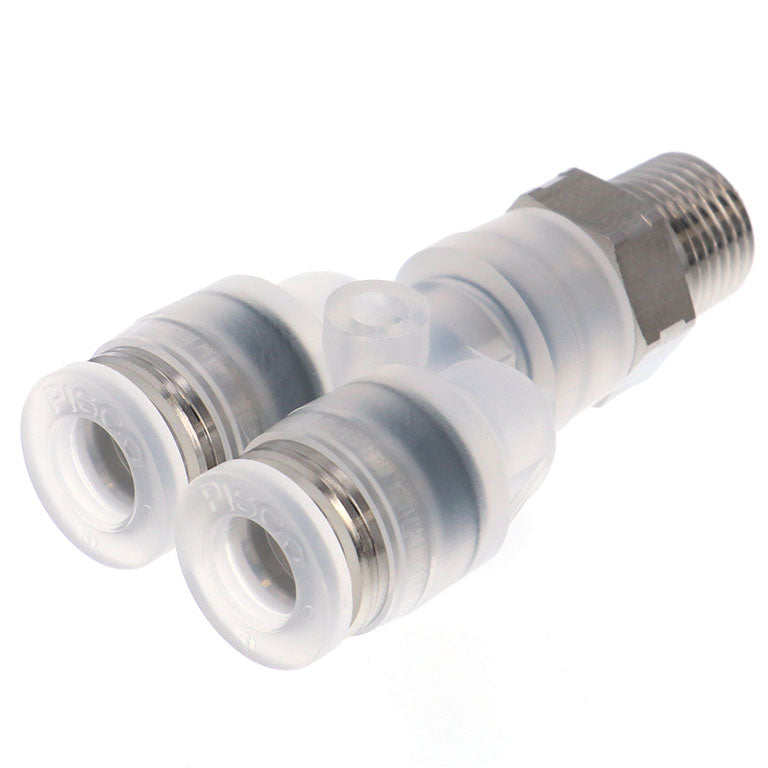

PISCO PPX — Tube Fitting PP Branch Wye (SUS304), genuine PISCO product.

Overview

PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.

Key Features

  • Genuine PISCO fitting
  • Select by tube OD and connection thread (R, Rc, G, M, UNF)
  • Fast one-touch tube connection

Specifications

Part No. Thread Size R Tube O.D. (mm) Operating Temperature Range (℃) Thread Size Connection Thread Fluid Operating Vacuum Pressure (kPa) Rubber Part Material Connection Thread Type Max. Operating Pressure (MPa) Mass (g) Shape Packaging Type Compatible Tube O.D. D (Ømm) Material (Thread) Seal
PPX10-02SUS 10.0 0 ~ 80 (no freezing) 43834.0 Air, Water (conditional), Other (conditional) -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 38.0 Branch Wye Standard Packaging Thread Locking, without Seal Tape
PPX10-02SUS-F 10.0 0 ~ 80 (no freezing) 43834.0 Air, Water (conditional), Other (conditional) -100.0 FKM 1.0(at 0 ~ 20 ℃) 38.0 Branch Wye Standard Packaging Clean Environment Type Thread Locking, without Seal Tape
PPX10-02SUS-F-S 10.0 0 ~ 80 (no freezing) 43834.0 Air, Water (conditional), Other (conditional) FKM R 1.0(at 0 ~ 20 ℃) 38.0 Branch Wye Clean Environment Type SUS304 with Sea Lock
PPX10-02SUS-HN R1 / 4 0 ~ 80 Air, Water, Other Chemicals -100.0 EPDM 0.9 Branch Wye (SUS304) Standard Packaging 10.0 SUS304 Thread Locking, without Seal Tape
PPX10-02SUS-S 10.0 43834.0 Air, Water (conditional), Other (conditional) -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 38.0 Branch Wye Standard Packaging Clean Environment Type SUS304
PPX10-02SUS-TP 10.0 0 ~ 80 (no freezing) 43834.0 Air, Water (conditional), Other (conditional) EPDM R 38.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Seal Tape Roll Spec
PPX10-03SUS 10.0 0 ~ 80 (no freezing) 43898.0 -100.0 R 1.0(at 0 ~ 20 ℃) 46.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX10-03SUS-F 10.0 0 ~ 80 (no freezing) 43898.0 Air, Water (conditional), Other (conditional) R 1.0(at 0 ~ 20 ℃) 46.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX10-03SUS-F-S 0 ~ 80 (no freezing) 43898.0 Air, Water (conditional), Other (conditional) -100.0 R 1.0(at 0 ~ 20 ℃) 46.0 Branch Wye Standard Packaging Clean Environment Type SUS304 with Sea Lock
PPX10-03SUS-HN R3 / 8 0 ~ 80 Air, Water, Other Chemicals -100.0 EPDM 0.9 Branch Wye (SUS304) Standard Packaging 10.0 SUS304 Thread Locking, without Seal Tape
PPX10-03SUS-S 10.0 0 ~ 80 (no freezing) 43898.0 Air, Water (conditional), Other (conditional) -100.0 EPDM R 1.0(at 0 ~ 20 ℃) Branch Wye Standard Packaging Clean Environment Type with Sea Lock
PPX10-03SUS-TP 0 ~ 80 (no freezing) 43898.0 Air, Water (conditional), Other (conditional) -100.0 EPDM 1.0(at 0 ~ 20 ℃) 46.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Seal Tape Roll Spec
PPX12-03SUS 12.0 0 ~ 80 (no freezing) -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 57.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX12-03SUS-F 0 ~ 80 (no freezing) 43898.0 -100.0 FKM R 1.0(at 0 ~ 20 ℃) 57.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX12-03SUS-F-S 12.0 0 ~ 80 (no freezing) 43898.0 Air, Water (conditional), Other (conditional) -100.0 R 1.0(at 0 ~ 20 ℃) 57.0 Branch Wye Standard Packaging Clean Environment Type SUS304
PPX12-03SUS-HN R3 / 8 0 ~ 80 Air, Water, Other Chemicals -100.0 EPDM 0.9 Branch Wye (SUS304) Standard Packaging 12.0 SUS304 Thread Locking, without Seal Tape
PPX12-03SUS-S 12.0 0 ~ 80 (no freezing) 43898.0 Air, Water (conditional), Other (conditional) -100.0 EPDM R 1.0(at 0 ~ 20 ℃) Branch Wye Standard Packaging Clean Environment Type SUS304
PPX12-03SUS-TP 0 ~ 80 (no freezing) 43898.0 -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 57.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Seal Tape Roll Spec
PPX12-04SUS 12.0 0 ~ 80 (no freezing) 43832.0 Air, Water (conditional), Other (conditional) -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 71.0 Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX12-04SUS-F 12.0 0 ~ 80 (no freezing) 43832.0 Air, Water (conditional), Other (conditional) -100.0 FKM 1.0(at 0 ~ 20 ℃) 71.0 Branch Wye Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX12-04SUS-F-S 0 ~ 80 (no freezing) 43832.0 Air, Water (conditional), Other (conditional) -100.0 FKM R 1.0(at 0 ~ 20 ℃) 71.0 Branch Wye Clean Environment Type SUS304 with Sea Lock
PPX12-04SUS-HN R1 / 2 0 ~ 80 Air, Water, Other Chemicals -100.0 EPDM 0.9 Branch Wye (SUS304) Standard Packaging 12.0 SUS304 Thread Locking, without Seal Tape
PPX12-04SUS-S 12.0 0 ~ 80 (no freezing) 43832.0 Air, Water (conditional), Other (conditional) EPDM 1.0(at 0 ~ 20 ℃) 71.0 Branch Wye Standard Packaging Clean Environment Type SUS304 with Sea Lock
PPX12-04SUS-TP 12.0 0 ~ 80 (no freezing) 43832.0 -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 71.0 Branch Wye Clean Environment Type SUS304 Seal Tape Roll Spec
PPX4-01SUS 4.0 0 ~ 80 (no freezing) 43838.0 Air, Water (conditional), Other (conditional) -100.0 R 1.0(at 0 ~ 20 ℃) 13.0 Branch Wye Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX4-01SUS-F 4.0 0 ~ 80 (no freezing) 43838.0 Air, Water (conditional), Other (conditional) -100.0 FKM R 1.0(at 0 ~ 20 ℃) 13.0 Branch Wye SUS304 Thread Locking, without Seal Tape
PPX4-01SUS-F-S 4.0 43838.0 Air, Water (conditional), Other (conditional) -100.0 FKM R 1.0(at 0 ~ 20 ℃) Branch Wye Standard Packaging Clean Environment Type SUS304 with Sea Lock
PPX4-01SUS-HN R1 / 8 0 ~ 80 Air, Water, Other Chemicals -100.0 EPDM 0.9 Branch Wye (SUS304) Standard Packaging 4.0 SUS304 Thread Locking, without Seal Tape
PPX4-01SUS-S 4.0 0 ~ 80 (no freezing) 43838.0 Air, Water (conditional), Other (conditional) -100.0 EPDM R 13.0 Branch Wye Standard Packaging SUS304 with Sea Lock
PPX4-02SUS 4.0 0 ~ 80 (no freezing) 43834.0 Air, Water (conditional), Other (conditional) -100.0 EPDM 1.0(at 0 ~ 20 ℃) 21.0 Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX4-02SUS-F 4.0 0 ~ 80 (no freezing) 43834.0 Air, Water (conditional), Other (conditional) -100.0 FKM R 1.0(at 0 ~ 20 ℃) 21.0 Branch Wye Standard Packaging Clean Environment Type
PPX4-02SUS-F-S 4.0 43834.0 -100.0 FKM R 1.0(at 0 ~ 20 ℃) 21.0 Branch Wye Standard Packaging Clean Environment Type SUS304 with Sea Lock
PPX4-02SUS-HN R1 / 4 0 ~ 80 Air, Water, Other Chemicals -100.0 EPDM 0.9 Branch Wye (SUS304) Standard Packaging 4.0 SUS304 Thread Locking, without Seal Tape
PPX4-02SUS-S 4.0 0 ~ 80 (no freezing) 43834.0 Air, Water (conditional), Other (conditional) EPDM R 1.0(at 0 ~ 20 ℃) 21.0 Branch Wye Clean Environment Type SUS304 with Sea Lock
PPX4-M3SUS 4.0 0 ~ 80 (no freezing) M3X0.5 Air, Water (conditional), Other (conditional) -100.0 M 1.0(at 0 ~ 20 ℃) 8.7 Branch Wye Standard Packaging Clean Environment Type
PPX4-M3SUS-F 4.0 0 ~ 80 (no freezing) M3X0.5 Air, Water (conditional), Other (conditional) -100.0 M 1.0(at 0 ~ 20 ℃) 8.7 Branch Wye Standard Packaging Clean Environment Type
PPX4-M3SUS-HN M3 × 0.5 Branch Wye
PPX4-M5SUS 4.0 0 ~ 80 (no freezing) M5X0.8 Air, Water (conditional), Other (conditional) EPDM M 1.0(at 0 ~ 20 ℃) 9.5 Branch Wye Standard Packaging Clean Environment Type Thread Locking, without Seal Tape
PPX4-M5SUS-F 0 ~ 80 (no freezing) M5X0.8 Air, Water (conditional), Other (conditional) -100.0 FKM M 1.0(at 0 ~ 20 ℃) 9.5 Branch Wye Standard Packaging Clean Environment Type SUS304
PPX4-M5SUS-HN M5 × 0.8 0 ~ 80 Air, Water, Other Chemicals -100.0 EPDM 0.9 Branch Wye (SUS304) Standard Packaging 4.0 SUS304 Thread Locking, without Seal Tape
PPX6-01SUS 6.0 0 ~ 80 (no freezing) Air, Water (conditional), Other (conditional) -100.0 EPDM 1.0(at 0 ~ 20 ℃) 16.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX6-01SUS-F 6.0 0 ~ 80 (no freezing) 43838.0 Air, Water (conditional), Other (conditional) FKM R 16.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX6-01SUS-F-S 6.0 0 ~ 80 (no freezing) 43838.0 Air, Water (conditional), Other (conditional) -100.0 FKM R 16.0 Standard Packaging Clean Environment Type SUS304 with Sea Lock
PPX6-01SUS-HN R1 / 8 0 ~ 80 Air, Water, Other Chemicals -100.0 EPDM 0.9 Branch Wye (SUS304) Standard Packaging 6.0 SUS304 Thread Locking, without Seal Tape
PPX6-01SUS-S 6.0 0 ~ 80 (no freezing) 43838.0 Air, Water (conditional), Other (conditional) -100.0 EPDM R Branch Wye Standard Packaging Clean Environment Type SUS304 with Sea Lock
PPX6-01SUS-TP 6.0 0 ~ 80 (no freezing) Air, Water (conditional), Other (conditional) -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 16.0 Branch Wye Clean Environment Type SUS304 Seal Tape Roll Spec
PPX6-02SUS 6.0 0 ~ 80 (no freezing) Air, Water (conditional), Other (conditional) -100.0 EPDM R 1.0(at 0 ~ 20 ℃) Branch Wye Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX6-02SUS-F 6.0 0 ~ 80 (no freezing) 43834.0 Air, Water (conditional), Other (conditional) FKM R 1.0(at 0 ~ 20 ℃) 23.0 Branch Wye Standard Packaging Clean Environment Type SUS304
PPX6-02SUS-F-S 6.0 0 ~ 80 (no freezing) 43834.0 Air, Water (conditional), Other (conditional) R 1.0(at 0 ~ 20 ℃) 23.0 Branch Wye Standard Packaging Clean Environment Type SUS304 with Sea Lock
PPX6-02SUS-HN R1 / 4 0 ~ 80 Air, Water, Other Chemicals -100.0 EPDM 0.9 Branch Wye (SUS304) Standard Packaging 6.0 SUS304 Thread Locking, without Seal Tape
PPX6-02SUS-S 6.0 0 ~ 80 (no freezing) 43834.0 Air, Water (conditional), Other (conditional) -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 23.0 Branch Wye Clean Environment Type with Sea Lock
PPX6-02SUS-TP 6.0 0 ~ 80 (no freezing) 43834.0 -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 23.0 Standard Packaging Clean Environment Type SUS304 Seal Tape Roll Spec
PPX6-03SUS 6.0 0 ~ 80 (no freezing) 43898.0 -100.0 EPDM R 21.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX6-03SUS-F 0 ~ 80 (no freezing) Air, Water (conditional), Other (conditional) -100.0 FKM R 1.0(at 0 ~ 20 ℃) 21.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX6-03SUS-F-S 0 ~ 80 (no freezing) 43898.0 Air, Water (conditional), Other (conditional) -100.0 FKM 1.0(at 0 ~ 20 ℃) 21.0 Branch Wye Standard Packaging Clean Environment Type SUS304 with Sea Lock
PPX6-03SUS-HN R3 / 8 0 ~ 80 Air, Water, Other Chemicals -100.0 EPDM 0.9 Branch Wye (SUS304) Standard Packaging 6.0 SUS304 Thread Locking, without Seal Tape
PPX6-03SUS-S 0 ~ 80 (no freezing) 43898.0 Air, Water (conditional), Other (conditional) -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 21.0 Standard Packaging Clean Environment Type SUS304 with Sea Lock
PPX6-03SUS-TP 6.0 0 ~ 80 (no freezing) 43898.0 -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 21.0 Branch Wye Standard Packaging Clean Environment Type Seal Tape Roll Spec
PPX6-M5SUS 6.0 0 ~ 80 (no freezing) M5X0.8 Air, Water (conditional), Other (conditional) -100.0 EPDM 14.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX6-M5SUS-F 6.0 0 ~ 80 (no freezing) M5X0.8 -100.0 FKM M 1.0(at 0 ~ 20 ℃) Branch Wye Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX6-M5SUS-HN M5 × 0.8 0 ~ 80 Air, Water, Other Chemicals -100.0 EPDM 0.9 Branch Wye (SUS304) Standard Packaging 6.0 SUS304 Thread Locking, without Seal Tape
PPX8-01SUS 8.0 43838.0 Air, Water (conditional), Other (conditional) -100.0 EPDM 1.0(at 0 ~ 20 ℃) 21.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX8-01SUS-F 8.0 0 ~ 80 (no freezing) Air, Water (conditional), Other (conditional) -100.0 R 1.0(at 0 ~ 20 ℃) 21.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX8-01SUS-F-S 8.0 0 ~ 80 (no freezing) 43838.0 -100.0 FKM R 1.0(at 0 ~ 20 ℃) 21.0 Standard Packaging Clean Environment Type SUS304 with Sea Lock
PPX8-01SUS-HN R1 / 8 0 ~ 80 Air, Water, Other Chemicals -100.0 EPDM 0.9 Branch Wye (SUS304) Standard Packaging 8.0 SUS304 Thread Locking, without Seal Tape
PPX8-01SUS-S 8.0 0 ~ 80 (no freezing) 43838.0 Air, Water (conditional), Other (conditional) -100.0 EPDM 1.0(at 0 ~ 20 ℃) 21.0 Standard Packaging Clean Environment Type SUS304 with Sea Lock
PPX8-01SUS-TP 8.0 0 ~ 80 (no freezing) 43838.0 Air, Water (conditional), Other (conditional) -100.0 R 1.0(at 0 ~ 20 ℃) Branch Wye Standard Packaging Clean Environment Type SUS304 Seal Tape Roll Spec
PPX8-02SUS 8.0 0 ~ 80 (no freezing) 43834.0 Air, Water (conditional), Other (conditional) -100.0 EPDM 1.0(at 0 ~ 20 ℃) 26.0 Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX8-02SUS-F 8.0 0 ~ 80 (no freezing) 43834.0 Air, Water (conditional), Other (conditional) -100.0 FKM R 1.0(at 0 ~ 20 ℃) 26.0 Branch Wye Standard Packaging Clean Environment Type
PPX8-02SUS-F-S 8.0 0 ~ 80 (no freezing) Air, Water (conditional), Other (conditional) -100.0 FKM R 1.0(at 0 ~ 20 ℃) 26.0 Standard Packaging Clean Environment Type SUS304 with Sea Lock
PPX8-02SUS-HN R1 / 4 0 ~ 80 Air, Water, Other Chemicals -100.0 EPDM 0.9 Branch Wye (SUS304) Standard Packaging 8.0 SUS304 Thread Locking, without Seal Tape
PPX8-02SUS-S 8.0 43834.0 Air, Water (conditional), Other (conditional) -100.0 EPDM R 1.0(at 0 ~ 20 ℃) Branch Wye Standard Packaging Clean Environment Type SUS304 with Sea Lock
PPX8-02SUS-TP 8.0 0 ~ 80 (no freezing) 43834.0 Air, Water (conditional), Other (conditional) -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 26.0 Branch Wye SUS304 Seal Tape Roll Spec
PPX8-03SUS 8.0 0 ~ 80 (no freezing) 43898.0 -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 25.0 Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX8-03SUS-F 8.0 0 ~ 80 (no freezing) 43898.0 Air, Water (conditional), Other (conditional) -100.0 1.0(at 0 ~ 20 ℃) 25.0 Branch Wye Standard Packaging Clean Environment Type SUS304 Thread Locking, without Seal Tape
PPX8-03SUS-F-S 8.0 43898.0 Air, Water (conditional), Other (conditional) -100.0 R 1.0(at 0 ~ 20 ℃) 25.0 Branch Wye Standard Packaging Clean Environment Type SUS304 with Sea Lock
PPX8-03SUS-HN R3 / 8 0 ~ 80 Air, Water, Other Chemicals -100.0 EPDM 0.9 Branch Wye (SUS304) Standard Packaging 8.0 SUS304 Thread Locking, without Seal Tape
PPX8-03SUS-S 8.0 0 ~ 80 (no freezing) 43898.0 Air, Water (conditional), Other (conditional) -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 25.0 Branch Wye Clean Environment Type with Sea Lock
PPX8-03SUS-TP 8.0 43898.0 Air, Water (conditional), Other (conditional) -100.0 EPDM R 1.0(at 0 ~ 20 ℃) 25.0 Branch Wye Clean Environment Type SUS304 Seal Tape Roll Spec

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

PISCO PPX — Tube Fitting PP Branch Wye (SUS304), genuine PISCO product.OverviewPISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers... Read more

SKU: PPX10-02SUS

$20.76 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
