Name: PISCO Tube Fitting PP Type Union Elbow, PPV - PPV10-C
Brand: PISCO
SKU: PPV10-C
Price: 12.3 USD

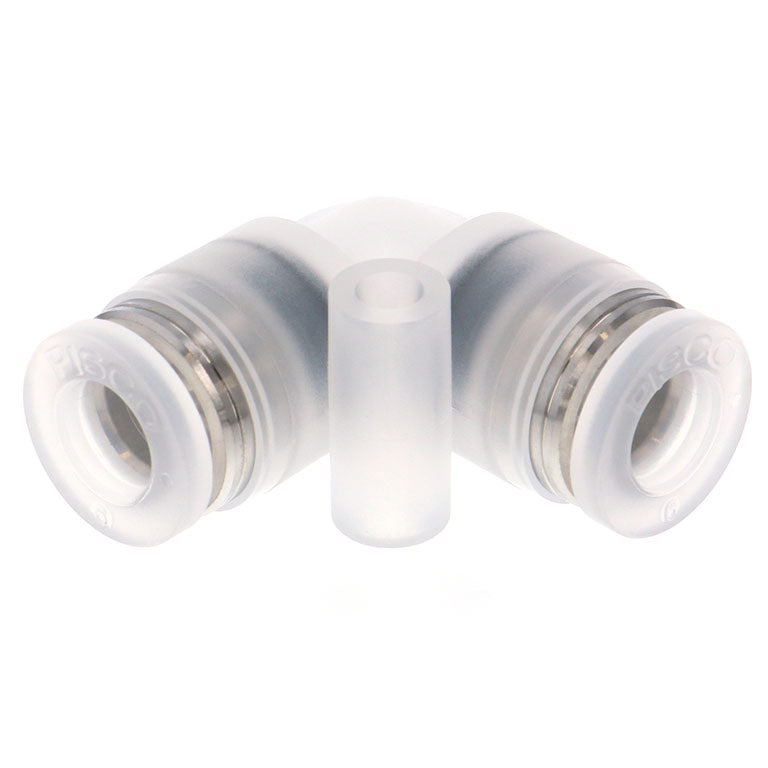

PISCO Tube Fitting PP Type Union Elbow, PPV - PPV10-C

VendorPISCO

Description

PISCO PPV — Tube Fitting PP Type Union Elbow, genuine PISCO product.

Overview

PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.

Key Features

Genuine PISCO fitting
Select by tube OD and connection thread (R, Rc, G, M, UNF)
Fast one-touch tube connection

Specifications

Part No.	Operating Temperature Range (℃)	Type	Fluid	Mass (g)	Shape	Rubber Part Material	Max. Operating Pressure (MPa)	Operating Vacuum Pressure (kPa)	Compatible Tube O.D. D (Ømm)	Material (Thread)	Seal	Packaging
PPV10-C	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	14.0	Union Elbow	EPDM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Clean Room Packaging
PPV10-F	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	14.0	Union Elbow	FKM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Standard Packaging
PPV10-F-C	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	14.0	Union Elbow	FKM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Clean Room Packaging
PPV10-HN	0 ~ 80		Air, Water (conditional) Other Chemicals (conditional)		Union Elbow	EPDM	0.9	-100.0	10.0	PP (Polypropylene)	Thread Locking, without Seal Tape	Standard Packaging
PPV12-C	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	20.0	Union Elbow	EPDM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Clean Room Packaging
PPV12-F	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	20.0	Union Elbow	FKM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Standard Packaging
PPV12-F-C	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	20.0	Union Elbow	FKM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Clean Room Packaging
PPV12-HN	0 ~ 80		Air, Water (conditional) Other Chemicals (conditional)		Union Elbow	EPDM	0.9	-100.0	12.0	PP (Polypropylene)	Thread Locking, without Seal Tape	Standard Packaging
PPV4-C	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	4.5	Union Elbow	EPDM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Clean Room Packaging
PPV4-F	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	4.5	Union Elbow	FKM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Standard Packaging
PPV4-F-C	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	4.5	Union Elbow	FKM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Clean Room Packaging
PPV4-HN	0 ~ 80		Air, Water (conditional) Other Chemicals (conditional)		Union Elbow	EPDM	0.9	-100.0	4.0	PP (Polypropylene)	Thread Locking, without Seal Tape	Standard Packaging
PPV6-C	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	6.0	Union Elbow	EPDM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Clean Room Packaging
PPV6-F	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	6.0	Union Elbow	FKM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Standard Packaging
PPV6-F-C	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	6.0	Union Elbow	FKM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Clean Room Packaging
PPV6-HN	0 ~ 80		Air, Water (conditional) Other Chemicals (conditional)		Union Elbow	EPDM	0.9	-100.0	6.0	PP (Polypropylene)	Thread Locking, without Seal Tape	Standard Packaging
PPV8-C	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	9.0	Union Elbow	EPDM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Clean Room Packaging
PPV8-F	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	9.0	Union Elbow	FKM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Standard Packaging
PPV8-F-C	0 ~ 80 (no freezing)	Clean Environment Type	Air, Water (conditional), Other (conditional)	9.0	Union Elbow	FKM	1.0(at 0 ~ 20 ℃)	-100.0		PP (Polypropylene)	Thread Locking, without Seal Tape	Clean Room Packaging
PPV8-HN	0 ~ 80		Air, Water (conditional) Other Chemicals (conditional)		Union Elbow	EPDM	0.9	-100.0	8.0	PP (Polypropylene)	Thread Locking, without Seal Tape	Standard Packaging

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

Genuine PISCO product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
