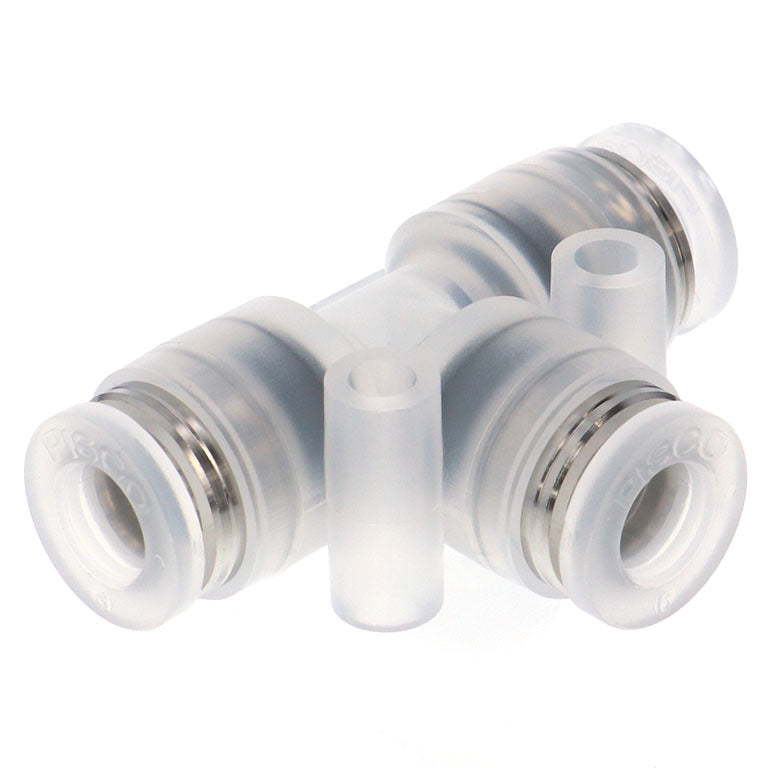

PISCO Tube Fitting PP Type Union Tee, PPE - PPE10-C

Description

PISCO PPE — Tube Fitting PP Type Union Tee, genuine PISCO product.

Overview

PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.

Key Features

  • Genuine PISCO fitting
  • Select by tube OD and connection thread (R, Rc, G, M, UNF)
  • Fast one-touch tube connection

Specifications

Part No. Packaging Rubber Part Material Shape Material (Thread) Fluid Type Seal Operating Vacuum Pressure (kPa) Max. Operating Pressure (MPa) Mass (g) Compatible Tube O.D. D (Ømm) Tube O.D. (mm) Operating Temperature Range (℃)
PPE10-C Clean Room Packaging EPDM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 21.0 10.0 0 ~ 80 (no freezing)
PPE10-F Standard Packaging FKM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 21.0 10.0 0 ~ 80 (no freezing)
PPE10-F-C Clean Room Packaging FKM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 21.0 10.0 0 ~ 80 (no freezing)
PPE10-HN Standard Packaging EPDM Union Tee PP (Polypropylene) Air, Water (conditional) Other Chemicals (conditional) Thread Locking, without Seal Tape -100.0 0.9 10.0 0 ~ 80
PPE12 Standard Packaging Union Tee Air, Water (conditional), Other (conditional) Clean Environment Type -100.0 1.0(at 0 ~ 20 ℃) 30.0 12.0 0 ~ 80 (no freezing)
PPE12-C Clean Room Packaging EPDM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 30.0 12.0 0 ~ 80 (no freezing)
PPE12-F Standard Packaging FKM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 30.0 12.0 0 ~ 80 (no freezing)
PPE12-F-C Clean Room Packaging FKM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 30.0 12.0 0 ~ 80 (no freezing)
PPE12-HN Standard Packaging EPDM Union Tee PP (Polypropylene) Air, Water (conditional) Other Chemicals (conditional) Thread Locking, without Seal Tape -100.0 0.9 12.0 0 ~ 80
PPE4-C Clean Room Packaging EPDM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 6.5 4.0 0 ~ 80 (no freezing)
PPE4-F Standard Packaging FKM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 6.5 4.0 0 ~ 80 (no freezing)
PPE4-F-C Clean Room Packaging FKM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 6.5 4.0 0 ~ 80 (no freezing)
PPE4-HN Standard Packaging EPDM Union Tee PP (Polypropylene) Air, Water (conditional) Other Chemicals (conditional) Thread Locking, without Seal Tape -100.0 0.9 4.0 0 ~ 80
PPE6-C Clean Room Packaging EPDM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 9.0 6.0 0 ~ 80 (no freezing)
PPE6-F Standard Packaging FKM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 9.0 6.0 0 ~ 80 (no freezing)
PPE6-F-C Clean Room Packaging FKM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 9.0 6.0 0 ~ 80 (no freezing)
PPE6-HN Standard Packaging EPDM Union Tee PP (Polypropylene) Air, Water (conditional) Other Chemicals (conditional) Thread Locking, without Seal Tape -100.0 0.9 6.0 0 ~ 80
PPE8-C Clean Room Packaging EPDM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 13.0 8.0 0 ~ 80 (no freezing)
PPE8-F Standard Packaging FKM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 13.0 8.0 0 ~ 80 (no freezing)
PPE8-F-C Clean Room Packaging FKM Union Tee PP (Polypropylene) Air, Water (conditional), Other (conditional) Clean Environment Type Thread Locking, without Seal Tape -100.0 1.0(at 0 ~ 20 ℃) 13.0 8.0 0 ~ 80 (no freezing)
PPE8-HN Standard Packaging EPDM Union Tee PP (Polypropylene) Air, Water (conditional) Other Chemicals (conditional) Thread Locking, without Seal Tape -100.0 0.9 8.0 0 ~ 80

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

PISCO PPE — Tube Fitting PP Type Union Tee, genuine PISCO product.OverviewPISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers... Read more

SKU: PPE10-C

$17.68 Excl. VAT
