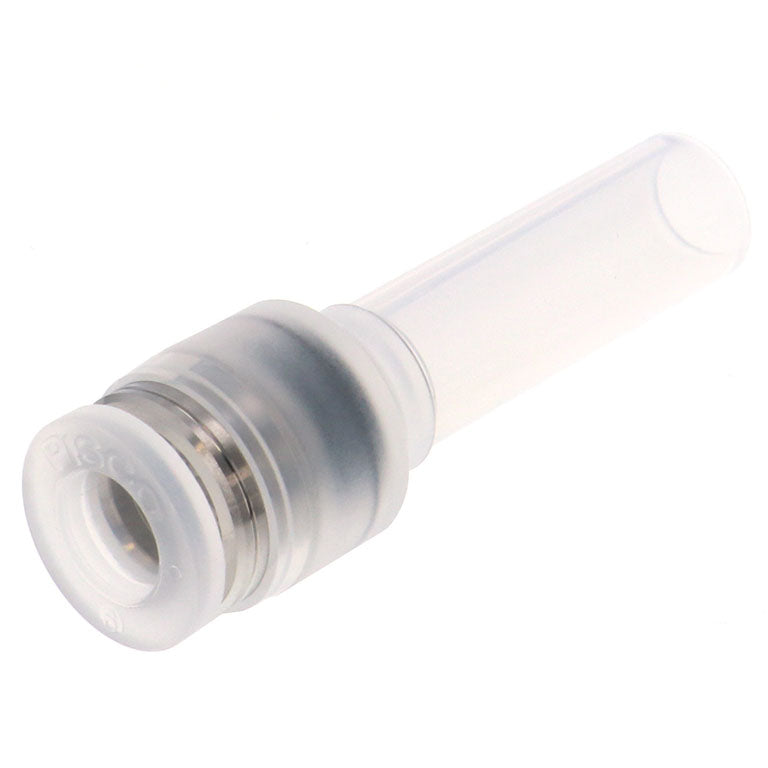

PISCO Tube Fitting PP Reducer, PPGJ - PPGJ10-6-F

Description

PISCO PPGJ — Tube Fitting PP Reducer, genuine PISCO product.

Overview

PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.

Key Features

  • Genuine PISCO fitting
  • Select by tube OD and connection thread (R, Rc, G, M, UNF)
  • Fast one-touch tube connection

Specifications

Part No. Shape Material (Thread) Operating Vacuum Pressure (kPa) Rubber Part Material Compatible Fitting Dia. D2 (Ømm) Operating Temperature Range (℃) Compatible Tube O.D. D2 (Ømm) Tube O.D. (mm) Compatible Tube O.D. D1 (Ømm) Seal Type Packaging Max. Operating Pressure (MPa) Fluid Mass (g)
PPGJ10-6-F Reducer PP (Polypropylene) -100.0 FKM 10.0 0 ~ 80 (no freezing) 6.0 Thread Locking, without Seal Tape Clean Environment Type Standard Packaging Air, Water (conditional), Other (conditional) 3.6
PPGJ10-6-HN Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 6.0 10.0 Thread Locking, without Seal Tape 0.9 Air, Water, Other Chemicals
PPGJ10-8 Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 (no freezing) 8.0 Thread Locking, without Seal Tape Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 4.7
PPGJ10-8-F Reducer PP (Polypropylene) FKM 10.0 0 ~ 80 (no freezing) 8.0 Thread Locking, without Seal Tape Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 4.7
PPGJ10-8-HN Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 8.0 10.0 Thread Locking, without Seal Tape 0.9 Air, Water, Other Chemicals
PPGJ12-10 Reducer PP (Polypropylene) -100.0 EPDM 12.0 0 ~ 80 (no freezing) Thread Locking, without Seal Tape Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 7.9
PPGJ12-10-F PP (Polypropylene) -100.0 FKM 12.0 0 ~ 80 (no freezing) 10.0 Thread Locking, without Seal Tape Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 7.9
PPGJ12-10-HN Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 10.0 12.0 Thread Locking, without Seal Tape 0.9 Air, Water, Other Chemicals
PPGJ12-8-F Reducer PP (Polypropylene) -100.0 FKM 12.0 0 ~ 80 (no freezing) Thread Locking, without Seal Tape Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 5.4
PPGJ12-8-HN Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 8.0 12.0 Thread Locking, without Seal Tape 0.9 Air, Water, Other Chemicals
PPGJ6-4-F Reducer PP (Polypropylene) -100.0 FKM 6.0 0 ~ 80 (no freezing) 4.0 Thread Locking, without Seal Tape Clean Environment Type 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 2.4
PPGJ6-4-HN Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 4.0 6.0 Thread Locking, without Seal Tape 0.9 Air, Water, Other Chemicals
PPGJ8-4 Reducer PP (Polypropylene) -100.0 EPDM 8.0 0 ~ 80 (no freezing) 4.0 Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 3.0
PPGJ8-4-F Reducer PP (Polypropylene) -100.0 FKM 8.0 0 ~ 80 (no freezing) 4.0 Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 3.0
PPGJ8-4-HN Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 4.0 8.0 Thread Locking, without Seal Tape 0.9 Air, Water, Other Chemicals
PPGJ8-6-F Reducer PP (Polypropylene) -100.0 8.0 0 ~ 80 (no freezing) 6.0 Thread Locking, without Seal Tape Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 3.2
PPGJ8-6-HN Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 6.0 8.0 Thread Locking, without Seal Tape 0.9 Air, Water, Other Chemicals

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

PISCO PPGJ — Tube Fitting PP Reducer, genuine PISCO product.OverviewPISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs... Read more

SKU: PPGJ10-6-F

$5.53 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    PISCO PPGJ — Tube Fitting PP Reducer, genuine PISCO product.

    Overview

    PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.

    Key Features

    • Genuine PISCO fitting
    • Select by tube OD and connection thread (R, Rc, G, M, UNF)
    • Fast one-touch tube connection

    Specifications

    Part No. Shape Material (Thread) Operating Vacuum Pressure (kPa) Rubber Part Material Compatible Fitting Dia. D2 (Ømm) Operating Temperature Range (℃) Compatible Tube O.D. D2 (Ømm) Tube O.D. (mm) Compatible Tube O.D. D1 (Ømm) Seal Type Packaging Max. Operating Pressure (MPa) Fluid Mass (g)
    PPGJ10-6-F Reducer PP (Polypropylene) -100.0 FKM 10.0 0 ~ 80 (no freezing) 6.0 Thread Locking, without Seal Tape Clean Environment Type Standard Packaging Air, Water (conditional), Other (conditional) 3.6
    PPGJ10-6-HN Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 6.0 10.0 Thread Locking, without Seal Tape 0.9 Air, Water, Other Chemicals
    PPGJ10-8 Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 (no freezing) 8.0 Thread Locking, without Seal Tape Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 4.7
    PPGJ10-8-F Reducer PP (Polypropylene) FKM 10.0 0 ~ 80 (no freezing) 8.0 Thread Locking, without Seal Tape Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 4.7
    PPGJ10-8-HN Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 8.0 10.0 Thread Locking, without Seal Tape 0.9 Air, Water, Other Chemicals
    PPGJ12-10 Reducer PP (Polypropylene) -100.0 EPDM 12.0 0 ~ 80 (no freezing) Thread Locking, without Seal Tape Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 7.9
    PPGJ12-10-F PP (Polypropylene) -100.0 FKM 12.0 0 ~ 80 (no freezing) 10.0 Thread Locking, without Seal Tape Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 7.9
    PPGJ12-10-HN Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 10.0 12.0 Thread Locking, without Seal Tape 0.9 Air, Water, Other Chemicals
    PPGJ12-8-F Reducer PP (Polypropylene) -100.0 FKM 12.0 0 ~ 80 (no freezing) Thread Locking, without Seal Tape Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 5.4
    PPGJ12-8-HN Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 8.0 12.0 Thread Locking, without Seal Tape 0.9 Air, Water, Other Chemicals
    PPGJ6-4-F Reducer PP (Polypropylene) -100.0 FKM 6.0 0 ~ 80 (no freezing) 4.0 Thread Locking, without Seal Tape Clean Environment Type 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 2.4
    PPGJ6-4-HN Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 4.0 6.0 Thread Locking, without Seal Tape 0.9 Air, Water, Other Chemicals
    PPGJ8-4 Reducer PP (Polypropylene) -100.0 EPDM 8.0 0 ~ 80 (no freezing) 4.0 Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 3.0
    PPGJ8-4-F Reducer PP (Polypropylene) -100.0 FKM 8.0 0 ~ 80 (no freezing) 4.0 Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 3.0
    PPGJ8-4-HN Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 4.0 8.0 Thread Locking, without Seal Tape 0.9 Air, Water, Other Chemicals
    PPGJ8-6-F Reducer PP (Polypropylene) -100.0 8.0 0 ~ 80 (no freezing) 6.0 Thread Locking, without Seal Tape Clean Environment Type Standard Packaging 1.0(at 0 ~ 20 ℃) Air, Water (conditional), Other (conditional) 3.2
    PPGJ8-6-HN Reducer PP (Polypropylene) -100.0 EPDM 0 ~ 80 6.0 8.0 Thread Locking, without Seal Tape 0.9 Air, Water, Other Chemicals

    How to Order

    Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

    About PISCO

    PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

    Ordering & Shipping

    • Genuine PISCO product sourced through Korean distribution
    • Lead time varies by model; most items ship within 2-3 weeks
    • Ships worldwide from South Korea by FedEx International Priority Express
    • Import duties and taxes are payable by the recipient
    • Bulk and trade pricing available on request
