Description

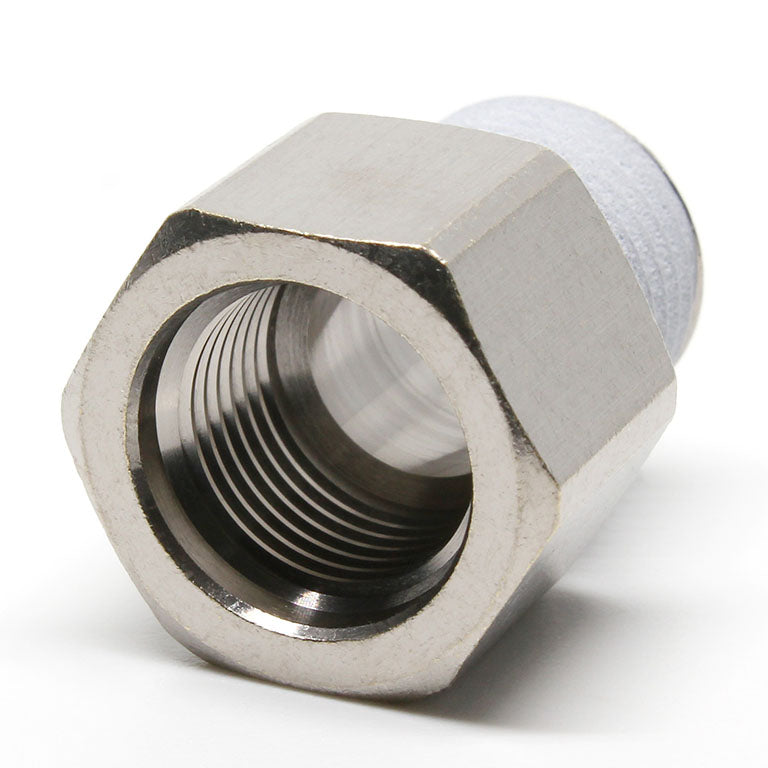

PISCO MBA — Main Block Bushing A, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Connection Thread Type |
Mass (g) |
Dimension B (mm) |
Shape |
Type |
Connection Thread |
Operating Vacuum Pressure (kPa) |
Fluid |
Max. Operating Pressure (MPa) |
Recommended Tightening Torque (N·m) |
Operating Temperature Range (℃) |
RoHS Regulation |
Width Across Flats H (mm) |
Cross-Sectional Area (㎟) |
Dimension A1 (mm) |
Size A2 (mm) |
Dimension l (mm) |
| MBA0801 |
MXR |
11.0 |
20.0 |
|
Distribution Type |
M8X1X1 / 8 |
|
|
1.0 (0.9 with QMC20 Coupling Module) |
3.0 ~ 5.0 |
|
Supported |
|
24.5 |
8.0 |
8.0 |
|
| MBA1201 |
|
18.0 |
20.0 |
Bushing A |
Distribution Type |
M12X1X1 / 8 |
-100.0 |
|
|
5.0 ~ 10.0 |
0 ~ 60 (no freezing) |
|
|
24.7 |
8.0 |
8.5 |
|
| MBA1203 |
MXR |
27.0 |
|
|
Distribution Type |
M12X1X3 / 8 |
|
Air |
1.0 (0.9 with QMC20 Coupling Module) |
5.0 ~ 10.0 |
0 ~ 60 (no freezing) |
|
17.0 |
42.3 |
|
8.5 |
17.7 |
| MBA1402 |
|
23.0 |
23.0 |
Bushing A |
Distribution Type |
M14X1X1 / 4 |
|
|
1.0 (0.9 with QMC20 Coupling Module) |
|
0 ~ 60 (no freezing) |
Supported |
19.0 |
42.7 |
|
8.5 |
17.0 |
| MBA1403 |
MXR |
25.0 |
24.0 |
Bushing A |
|
M14X1X3 / 8 |
-100.0 |
Air |
1.0 (0.9 with QMC20 Coupling Module) |
|
0 ~ 60 (no freezing) |
Supported |
|
42.7 |
12.0 |
|
|
| MBA1404 |
MXR |
46.0 |
|
Bushing A |
|
M14X1X1 / 2 |
|
Air |
1.0 (0.9 with QMC20 Coupling Module) |
|
0 ~ 60 (no freezing) |
Supported |
22.0 |
56.1 |
13.0 |
|
16.8 |
| MBA1803 |
MXR |
29.0 |
|
Bushing A |
Distribution Type |
|
-100.0 |
Air |
1.0 (0.9 with QMC20 Coupling Module) |
10.0 ~ 20.0 |
0 ~ 60 (no freezing) |
Supported |
22.0 |
|
12.0 |
|
|
| MBA1804 |
|
45.0 |
|
Bushing A |
Distribution Type |
|
-100.0 |
Air |
1.0 (0.9 with QMC20 Coupling Module) |
|
0 ~ 60 (no freezing) |
Supported |
24.0 |
56.1 |
13.0 |
|
16.8 |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
