Description

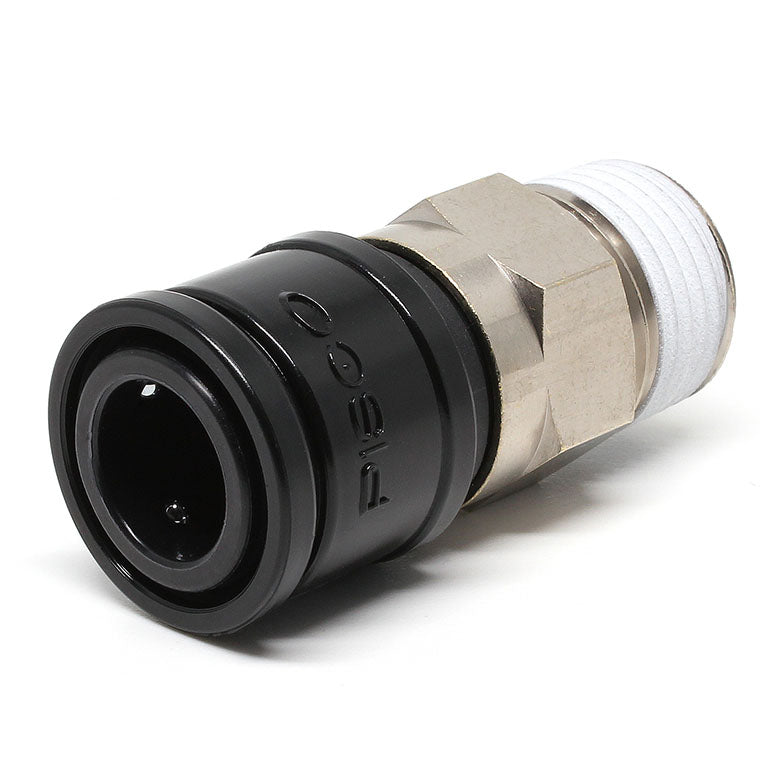

PISCO CPS20 — Light Coupling Socket Straight Screw Type, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Operating Temperature Range (℃) |
Shape |
Operating Vacuum Pressure (kPa) |
Fluid |
Series |
Max. Operating Pressure (MPa) |
Cross-Sectional Area (㎟) |
Connection Thread |
RoHS Regulation |
Dimension B (mm) |
Dimension a (mm) |
Type |
Dimension l (mm) |
Mass (g) |
Connection Thread Type |
Color |
| CPS20-02W |
0 ~ 60 (no freezing) |
|
|
Air |
20 Series |
|
|
43834.0 |
Supported |
50.0 |
11.0 |
Separable Type |
44.0 |
41.0 |
R |
Light Gray |
| CPS20-03W |
0 ~ 60 (no freezing) |
Straight |
-100.0 |
Air |
20 Series |
0.9 |
20.0 |
43898.0 |
Supported |
|
|
Separable Type |
44.7 |
|
R |
|
| CPS20-04B |
0 ~ 60 (no freezing) |
Straight |
|
Air |
20 Series |
0.9 |
24.2 |
|
Supported |
54.0 |
|
Separable Type |
45.8 |
54.0 |
|
Black |
| CPS20-04W |
|
|
-100.0 |
Air |
20 Series |
0.9 |
20.0 |
|
Supported |
54.0 |
15.0 |
|
45.8 |
54.0 |
R |
Light Gray |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
