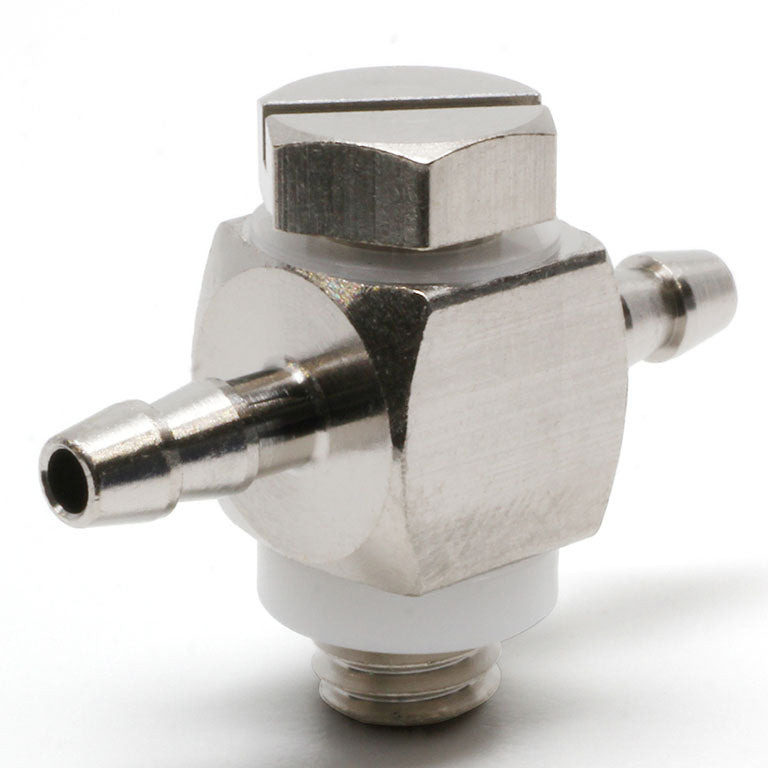

PISCO LB — Minimal Fitting Minimal Tee, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Orifice Dia. (Ømm) |
Material (Metal Hood)/Finish |
Dimension l2 (mm) |
Operating Temperature Range (℃) |
Max. Operating Pressure (MPa) |
Dimension E1 (mm) |
RoHS Regulation |
Material (Gasket) |
Connection Thread |
Fluid |
Tube O.D. (mm) |
Dimension E2 (mm) |
Operating Vacuum Pressure (kPa) |
Tube I.D. (Ømm) |
Dimension a (mm) |
Packaging |
Dimension F (mm) |
Dimension l1 (mm) |
Cross-Sectional Area (㎟) |
Mass (g) |
Connection Thread Type |
Shape |
Type |
Width Across Flats H (mm) |
Dimension C (mm) |
Dimension B (mm) |
| LB-0320-M3 |
1.0 |
|
4.2 |
|
0.5; 0.4 with Vacuum Tube (UD) |
17.5 |
|
|
M3X0.5 |
|
|
8.75 |
|
|
2.4 |
|
|
9.1 |
|
2.0 |
|
Tee |
Barb Type |
|
|
11.5 |
| LB-0320-M3C |
1.0 |
Stainless or Free-Cutting Steel (Electroless Nickel Plating) |
|
0 ~ 50 (no freezing) |
|
|
Supported |
|
|
Air |
|
|
|
|
2.4 |
Clean Room Packaging |
|
|
0.5 |
|
M |
Tee |
|
|
6.0 |
11.5 |
| LB-0320-M5C |
|
|
|
0 ~ 50 (no freezing) |
0.5; 0.4 with Vacuum Tube (UD) |
|
Supported |
|
|
Air |
3.0 |
10.0 |
|
|
3.4 |
|
8.0 |
12.6 |
0.8 |
|
M |
|
|
7.0 |
|
|
| LB-0425-M3 |
|
Stainless or Free-Cutting Steel (Electroless Nickel Plating) |
4.2 |
|
|
|
|
|
M3X0.5 |
Air |
|
|
-100.0 |
2.5 |
2.4 |
|
|
|
0.5 |
|
M |
|
Barb Type |
|
7.0 |
11.5 |
| LB-0425-M3C |
|
Stainless or Free-Cutting Steel (Electroless Nickel Plating) |
|
|
0.5; 0.4 with Vacuum Tube (UD) |
19.5 |
Supported |
|
M3X0.5 |
|
4.0 |
|
|
2.5 |
|
Clean Room Packaging |
5.5 |
|
|
|
M |
|
Barb Type |
|
7.0 |
|
| LB-0425-M5C |
1.6 |
|
|
0 ~ 50 (no freezing) |
|
|
Supported |
POM |
M5X0.8 |
Air |
4.0 |
11.0 |
|
|
|
|
8.0 |
|
1.2 |
5.4 |
|
|
|
7.0 |
|
|
