Description

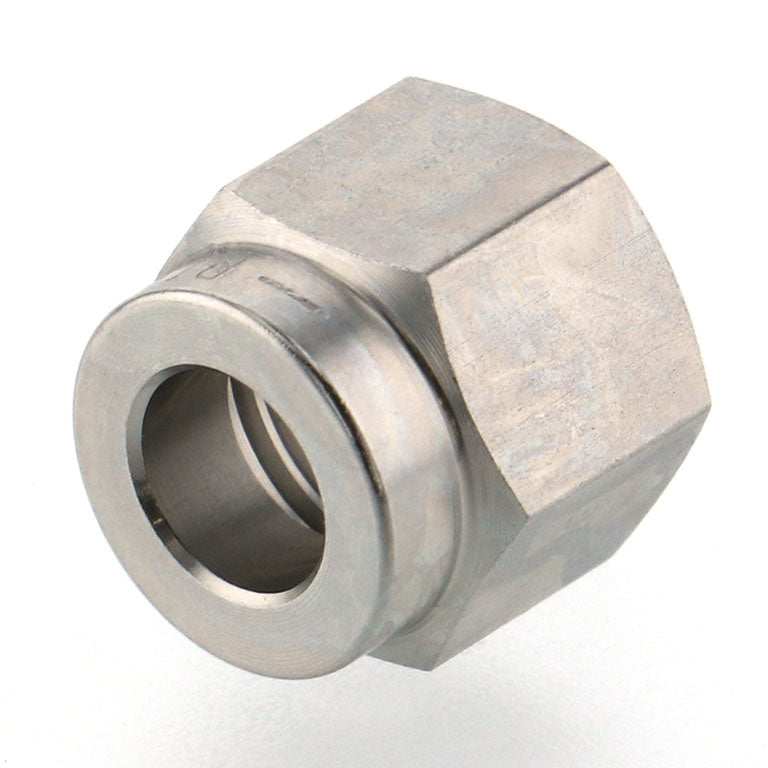

PISCO NSN — SUS316 Compression Fitting Compression Nut Only, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
RoHS Regulation |
Dimension B (mm) |
Width Across Flats H (mm) |
Max. Operating Pressure |
Mass (g) |
Seal |
Fluid |
Tube I.D. (Ømm) |
Type |
Operating Temperature Range |
Compatible Nut |
Dimension C (mm) |
Dimension l (mm) |
Shape |
Tube O.D. (mm) |
Operating Vacuum Pressure (kPa) |
Dimension E (mm) |
Body Material |
| NSN1/2 |
Supported |
|
|
Per tube max. operating pressure. |
17.2 |
|
Air, Water, Other |
|
Corrosion-Resistant Type |
Depends on tube operating range (no freezing). |
43832.0 |
9.0 |
|
Compression Nut |
|
-100.0 |
4.0 |
SUS316 |
| NSN1/4 |
Supported |
11.5 |
|
|
5.1 |
without Seal Tape |
Air, Water, Other |
4.57 |
|
|
43834.0 |
6.0 |
11.0 |
Compression Nut |
6.35 |
-100.0 |
|
|
| NSN10 |
Supported |
16.5 |
17.0 |
Per tube max. operating pressure. |
|
|
Air, Water, Other |
7.5,8 |
|
Depends on tube operating range (no freezing). |
|
9.0 |
16.0 |
Compression Nut |
|
|
4.0 |
SUS316 |
| NSN12 |
Supported |
16.5 |
19.0 |
Per tube max. operating pressure. |
18.0 |
|
|
9,10 |
|
Depends on tube operating range (no freezing). |
|
9.0 |
18.0 |
Compression Nut |
|
|
4.0 |
SUS316 |
| NSN16 |
Supported |
18.0 |
23.0 |
|
|
without Seal Tape |
|
13.0 |
Corrosion-Resistant Type |
Depends on tube operating range (no freezing). |
16.0 |
|
21.0 |
Compression Nut |
|
-100.0 |
4.0 |
|
| NSN3/8 |
Supported |
16.5 |
17.0 |
Per tube max. operating pressure. |
15.5 |
|
Air, Water, Other |
|
Corrosion-Resistant Type |
Depends on tube operating range (no freezing). |
|
9.0 |
16.0 |
|
9.53 |
|
|
SUS316 |
| NSN4 |
Supported |
11.5 |
10.0 |
|
4.0 |
|
Air, Water, Other |
2,2.5 |
|
Depends on tube operating range (no freezing). |
|
5.5 |
|
Compression Nut |
4,4 |
|
3.0 |
SUS316 |
| NSN6 |
Supported |
|
12.0 |
Per tube max. operating pressure. |
5.2 |
|
Air, Water, Other |
|
|
Depends on tube operating range (no freezing). |
|
6.0 |
11.0 |
Compression Nut |
6.0 |
-100.0 |
3.0 |
|
| NSN8 |
Supported |
13.5 |
14.0 |
Per tube max. operating pressure. |
7.8 |
|
Air, Water, Other |
6.0 |
|
|
|
|
|
Compression Nut |
8.0 |
-100.0 |
3.0 |
SUS316 |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
