Description

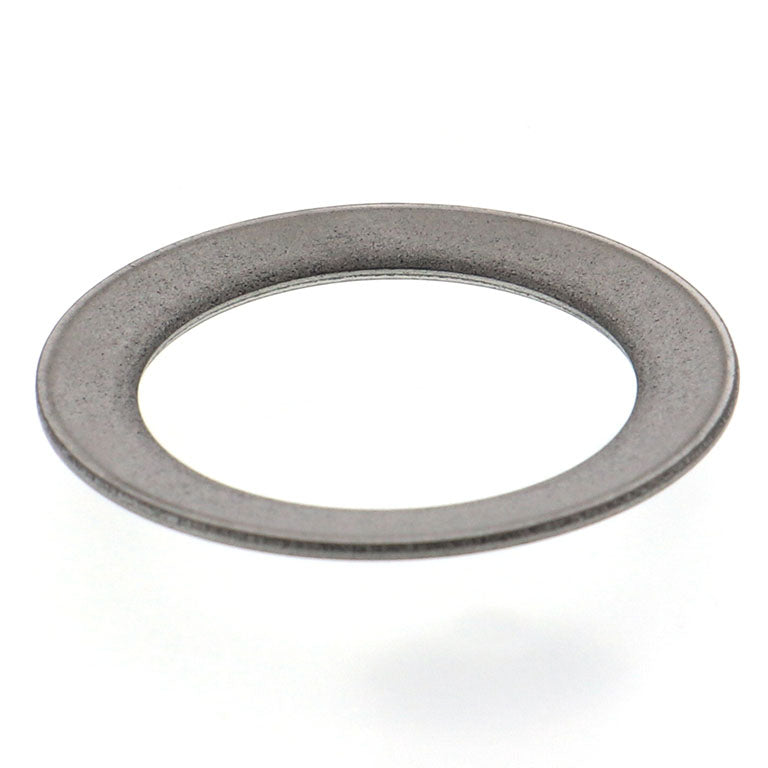

PISCO NSP — SUS316 Compression Fitting Disc Spring Washer for Bulkhead Type, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Max. Operating Pressure (MPa) |
Mass (g) |
Operating Vacuum Pressure (kPa) |
Seal |
Shape |
Dimension D (Ømm) |
Fluid |
Type |
Operating Temperature Range (℃) |
| NSP12 |
Per tube max. operating pressure. |
1.0 |
-100.0 |
without Seal Tape |
Disc Spring Washer for Bulkhead Type |
12.0 |
Air, Water, Other |
Corrosion-Resistant Type |
Depends on tube operating range (no freezing). |
| NSP14 |
Per tube max. operating pressure. |
1.2 |
-100.0 |
without Seal Tape |
Disc Spring Washer for Bulkhead Type |
14.0 |
Air, Water, Other |
Corrosion-Resistant Type |
Depends on tube operating range (no freezing). |
| NSP16 |
Per tube max. operating pressure. |
1.4 |
-100.0 |
without Seal Tape |
Disc Spring Washer for Bulkhead Type |
16.0 |
Air, Water, Other |
Corrosion-Resistant Type |
Depends on tube operating range (no freezing). |
| NSP18 |
Per tube max. operating pressure. |
1.8 |
-100.0 |
without Seal Tape |
Disc Spring Washer for Bulkhead Type |
18.0 |
Air, Water, Other |
Corrosion-Resistant Type |
Depends on tube operating range (no freezing). |
| NSP20 |
Per tube max. operating pressure. |
2.4 |
-100.0 |
without Seal Tape |
Disc Spring Washer for Bulkhead Type |
20.0 |
Air, Water, Other |
Corrosion-Resistant Type |
Depends on tube operating range (no freezing). |
| NSP22 |
Per tube max. operating pressure. |
2.5 |
-100.0 |
without Seal Tape |
Disc Spring Washer for Bulkhead Type |
22.0 |
Air, Water, Other |
Corrosion-Resistant Type |
Depends on tube operating range (no freezing). |
| NSP24 |
Per tube max. operating pressure. |
2.0 |
-100.0 |
without Seal Tape |
Disc Spring Washer for Bulkhead Type |
24.0 |
Air, Water, Other |
Corrosion-Resistant Type |
Depends on tube operating range (no freezing). |
| NSP27 |
Per tube max. operating pressure. |
3.0 |
-100.0 |
without Seal Tape |
Disc Spring Washer for Bulkhead Type |
27.0 |
Air, Water, Other |
Corrosion-Resistant Type |
Depends on tube operating range (no freezing). |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
