PISCO Speed Controller PP Elbow, PJSC (Part 1)

Description

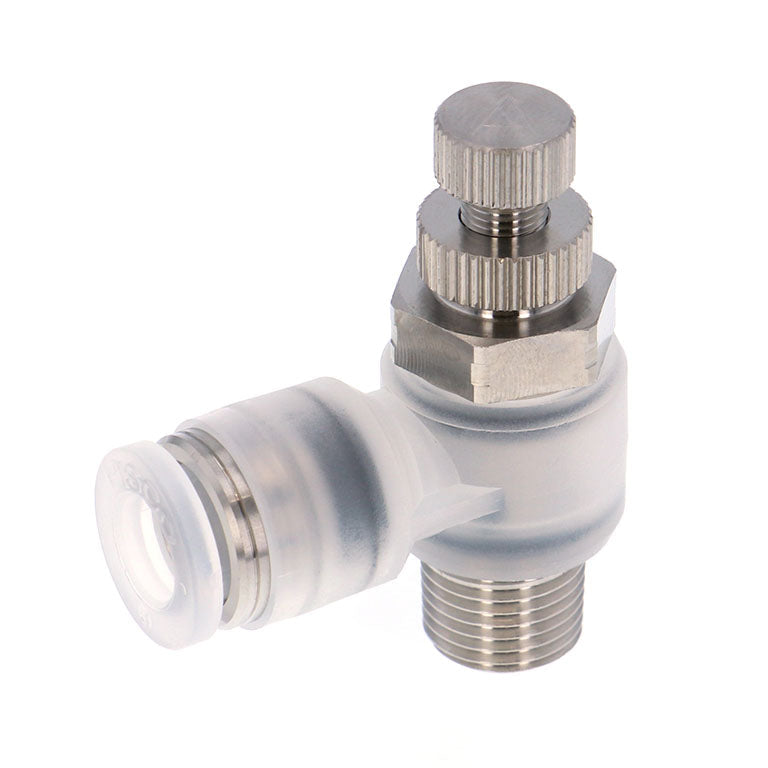

PISCO PJSC — Speed Controller PP Elbow, genuine PISCO product.

Overview

PISCO speed controllers, check valves, hand valves, silencers and flow control components for pneumatic circuits.

Key Features

  • Genuine PISCO flow control component
  • Select by tube OD, thread and flow direction
  • Compact design

Specifications

Part No. Lock Nut Tube O.D. (Ø) Thread Size Shape Compatible Cylinder Bore (Ømm) Material (Metal Hood)/Finish Type Fluid Compatible Thread Packaging Operating Pressure Range (MPa) Seal Compatible Tube O.D. D (Ømm) Control Method Material Check Valve Operating Pressure (MPa) Operating Temperature Range (℃)
PJSC10-02A Silver Elbow Type max.Ø40 PP Air General 0.1 ~ 0.9 Thread Locking, without Seal Tape 10.0 EPDM 0.05 0 ~ 80
PJSC10-02A-F Silver Elbow Type max.Ø40 PP R1 / 4 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 10.0 FKM 0.05 0 ~ 80
PJSC10-02A-F-S Elbow Type max.Ø40 PP Air R1 / 4 General 0.1 ~ 0.9 Sea Lock Function 10.0 Meter-Out Control FKM 0.05
PJSC10-02A-S Silver Elbow Type max.Ø40 PP R1 / 4 General 0.1 ~ 0.9 10.0 Meter-Out Control EPDM 0.05 0 ~ 80
PJSC10-02A-TP Silver Elbow Type max.Ø40 PP Air R1 / 4 0.1 ~ 0.9 Seal Tape Wrapped 10.0 Meter-Out Control EPDM 0 ~ 80
PJSC10-02B Silver max.Ø40 PP Air R1 / 4 General Thread Locking, without Seal Tape 10.0 Meter-In Control EPDM 0.05 0 ~ 80
PJSC10-02B-F Silver Elbow Type PP Air General 0.1 ~ 0.9 Thread Locking, without Seal Tape 10.0 Meter-In Control FKM 0.05 0 ~ 80
PJSC10-02B-F-S Silver Elbow Type PP Air R1 / 4 General 0.1 ~ 0.9 10.0 Meter-In Control FKM 0.05 0 ~ 80
PJSC10-02B-S Silver Elbow Type PP Air R1 / 4 0.1 ~ 0.9 Sea Lock Function 10.0 Meter-In Control EPDM 0.05 0 ~ 80
PJSC10-03A Silver Elbow Type max.Ø63 PP Air General 0.1 ~ 0.9 Thread Locking, without Seal Tape 10.0 Meter-Out Control 0.05 0 ~ 80
PJSC10-03A-F Elbow Type max.Ø63 PP Air R3 / 8 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 10.0 Meter-Out Control FKM 0 ~ 80
PJSC10-03A-F-S Silver Elbow Type max.Ø63 PP Air R3 / 8 General 0.1 ~ 0.9 Sea Lock Function 10.0 FKM 0 ~ 80
PJSC10-03A-S Elbow Type max.Ø63 Air R3 / 8 General 0.1 ~ 0.9 Sea Lock Function 10.0 Meter-Out Control EPDM 0.05 0 ~ 80
PJSC10-03B Silver Elbow Type max.Ø63 PP Air R3 / 8 General 0.1 ~ 0.9 10.0 Meter-In Control EPDM 0 ~ 80
PJSC10-03B-F Silver Elbow Type max.Ø63 PP Air General 0.1 ~ 0.9 Thread Locking, without Seal Tape Meter-In Control FKM 0.05 0 ~ 80
PJSC10-03B-F-S Silver Elbow Type Air R3 / 8 General 0.1 ~ 0.9 Sea Lock Function 10.0 Meter-In Control FKM 0.05 0 ~ 80
PJSC10-03B-S Silver Elbow Type max.Ø63 PP Air R3 / 8 General 0.1 ~ 0.9 Sea Lock Function Meter-In Control EPDM 0.05
PJSC10-04A Silver Elbow Type max.Ø100 PP R1 / 2 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 10.0 EPDM 0.05 0 ~ 80
PJSC10-04A-F Silver Elbow Type max.Ø100 PP Air R1 / 2 General 0.1 ~ 0.9 10.0 Meter-Out Control FKM 0 ~ 80
PJSC10-04A-F-S Elbow Type max.Ø100 PP Air R1 / 2 General Sea Lock Function 10.0 Meter-Out Control FKM 0.05 0 ~ 80
PJSC10-04A-S Silver Elbow Type max.Ø100 PP Air R1 / 2 General Sea Lock Function 10.0 Meter-Out Control 0.05 0 ~ 80
PJSC10-04B Silver max.Ø100 Air R1 / 2 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 10.0 Meter-In Control EPDM 0.05 0 ~ 80
PJSC10-04B-F Silver Elbow Type max.Ø100 PP Air R1 / 2 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 10.0 Meter-In Control 0 ~ 80
PJSC10-04B-F-S Silver Elbow Type max.Ø100 Air R1 / 2 General Sea Lock Function 10.0 Meter-In Control FKM 0.05 0 ~ 80
PJSC10-04B-S Elbow Type max.Ø100 PP Air R1 / 2 0.1 ~ 0.9 Sea Lock Function 10.0 Meter-In Control EPDM 0.05 0 ~ 80
PJSC12-03A Silver max.Ø63 PP Air R3 / 8 General 0.1 ~ 0.9 12.0 Meter-Out Control EPDM 0.05 0 ~ 80
PJSC12-03A-F Elbow Type max.Ø63 PP Air General 0.1 ~ 0.9 Thread Locking, without Seal Tape 12.0 Meter-Out Control FKM 0.05 0 ~ 80
PJSC12-03A-F-S Silver max.Ø63 PP Air R3 / 8 General 0.1 ~ 0.9 Sea Lock Function Meter-Out Control FKM 0.05 0 ~ 80
PJSC12-03A-S Silver Elbow Type PP Air R3 / 8 General 0.1 ~ 0.9 Sea Lock Function Meter-Out Control EPDM 0.05 0 ~ 80
PJSC12-03B Silver Elbow Type max.Ø63 PP Air R3 / 8 0.1 ~ 0.9 Thread Locking, without Seal Tape 12.0 Meter-In Control EPDM 0.05
PJSC12-03B-F Silver PP Air R3 / 8 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 12.0 Meter-In Control FKM 0.05 0 ~ 80
PJSC12-03B-F-S Elbow Type max.Ø63 PP Air General 0.1 ~ 0.9 Sea Lock Function 12.0 Meter-In Control FKM 0.05 0 ~ 80
PJSC12-03B-S Silver Elbow Type PP Air R3 / 8 General 0.1 ~ 0.9 Sea Lock Function 12.0 EPDM 0.05 0 ~ 80
PJSC12-03B-TP Silver Elbow Type max.Ø63 PP R3 / 8 General 0.1 ~ 0.9 Seal Tape Wrapped 12.0 Meter-In Control 0.05 0 ~ 80
PJSC12-04A Silver Elbow Type PP Air R1 / 2 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 12.0 EPDM 0.05 0 ~ 80
PJSC12-04A-F Silver Elbow Type max.Ø100 PP Air General 0.1 ~ 0.9 Thread Locking, without Seal Tape Meter-Out Control FKM 0.05 0 ~ 80
PJSC12-04A-F-S Silver Elbow Type max.Ø100 PP R1 / 2 0.1 ~ 0.9 Sea Lock Function 12.0 Meter-Out Control FKM 0.05 0 ~ 80
PJSC12-04A-S Silver Elbow Type max.Ø100 R1 / 2 General 0.1 ~ 0.9 Sea Lock Function 12.0 Meter-Out Control EPDM 0.05 0 ~ 80
PJSC12-04B Silver Elbow Type PP Air R1 / 2 General Thread Locking, without Seal Tape 12.0 Meter-In Control EPDM 0.05 0 ~ 80
PJSC12-04B-F Silver Elbow Type max.Ø100 PP Air R1 / 2 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 12.0 Meter-In Control 0.05
PJSC12-04B-F-S Silver max.Ø100 PP Air R1 / 2 General 0.1 ~ 0.9 12.0 Meter-In Control FKM 0.05 0 ~ 80
PJSC12-04B-S Silver Elbow Type max.Ø100 PP Air R1 / 2 0.1 ~ 0.9 Sea Lock Function 12.0 EPDM 0.05 0 ~ 80
PJSC4-01A Silver Elbow Type max.Ø32 PP R1 / 8 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 4.0 Meter-Out Control 0.05 0 ~ 80
PJSC4-01A-F Silver Elbow Type PP Air R1 / 8 General Thread Locking, without Seal Tape 4.0 Meter-Out Control FKM 0.05 0 ~ 80
PJSC4-01A-F-S Silver Elbow Type max.Ø32 PP Air R1 / 8 General Sea Lock Function 4.0 Meter-Out Control 0.05 0 ~ 80
PJSC4-01A-S Silver Elbow Type max.Ø32 Air R1 / 8 General 0.1 ~ 0.9 Sea Lock Function 4.0 Meter-Out Control 0.05 0 ~ 80
PJSC4-01A-TP Silver max.Ø32 PP Air R1 / 8 General 0.1 ~ 0.9 Seal Tape Wrapped Meter-Out Control EPDM 0.05 0 ~ 80
PJSC4-01B Silver Elbow Type max.Ø32 PP Air R1 / 8 General 0.1 ~ 0.9 Thread Locking, without Seal Tape Meter-In Control EPDM 0 ~ 80
PJSC4-01B-F Silver Elbow Type max.Ø32 Air R1 / 8 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 4.0 Meter-In Control FKM 0 ~ 80
PJSC4-01B-F-S Elbow Type max.Ø32 PP R1 / 8 General 0.1 ~ 0.9 Sea Lock Function 4.0 Meter-In Control FKM 0.05 0 ~ 80
PJSC4-01B-S Elbow Type PP Air R1 / 8 General 0.1 ~ 0.9 Sea Lock Function 4.0 Meter-In Control EPDM 0.05 0 ~ 80
PJSC4-01B-TP Silver max.Ø32 PP Air General 0.1 ~ 0.9 Seal Tape Wrapped 4.0 Meter-In Control EPDM 0.05 0 ~ 80
PJSC4-M3A 4.0 M3 × 0.5 Elbow Meter-Out
PJSC4-M3A-F 4.0 M3 × 0.5 Elbow Meter-Out
PJSC4-M3B
PJSC4-M5A-F Silver Elbow Type max.Ø20 PP Air M5 × 0.8 General 0.1 ~ 0.9 Meter-Out Control FKM 0.05 0 ~ 80
PJSC4-M5B Silver Elbow Type max.Ø20 PP Air M5 × 0.8 General Thread Locking, without Seal Tape 4.0 Meter-In Control EPDM 0 ~ 80
PJSC4-M5B-F Silver Elbow Type max.Ø20 PP M5 × 0.8 General 0.1 ~ 0.9 Thread Locking, without Seal Tape Meter-In Control FKM 0.05 0 ~ 80
PJSC6-01A-F Silver Elbow Type max.Ø32 PP Air R1 / 8 General 0.1 ~ 0.9 Thread Locking, without Seal Tape Meter-Out Control 0.05 0 ~ 80
PJSC6-01A-F-S Silver Elbow Type max.Ø32 Air R1 / 8 General 0.1 ~ 0.9 Sea Lock Function 6.0 Meter-Out Control FKM 0.05
PJSC6-01A-S Silver Elbow Type max.Ø32 PP Air R1 / 8 0.1 ~ 0.9 6.0 Meter-Out Control EPDM 0.05 0 ~ 80
PJSC6-01A-TP Silver Elbow Type max.Ø32 PP Air R1 / 8 General 0.1 ~ 0.9 Seal Tape Wrapped 6.0 Meter-Out Control 0.05
PJSC6-01B Silver max.Ø32 PP R1 / 8 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 6.0 Meter-In Control EPDM 0.05 0 ~ 80
PJSC6-01B-F Silver Elbow Type max.Ø32 PP Air General 0.1 ~ 0.9 Thread Locking, without Seal Tape 6.0 Meter-In Control FKM 0.05
PJSC6-01B-F-S Silver Elbow Type max.Ø32 PP Air General 0.1 ~ 0.9 Sea Lock Function 6.0 Meter-In Control 0.05 0 ~ 80
PJSC6-01B-S Silver Elbow Type max.Ø32 PP Air R1 / 8 General 0.1 ~ 0.9 Sea Lock Function 6.0 Meter-In Control EPDM
PJSC6-01B-TP Silver Elbow Type max.Ø32 PP Air R1 / 8 General 0.1 ~ 0.9 Seal Tape Wrapped 6.0 Meter-In Control 0 ~ 80
PJSC6-02A-F Elbow Type max.Ø40 PP Air R1 / 4 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 6.0 FKM 0.05 0 ~ 80
PJSC6-02A-F-S Silver max.Ø40 PP Air R1 / 4 0.1 ~ 0.9 Sea Lock Function 6.0 Meter-Out Control FKM 0.05 0 ~ 80
PJSC6-02A-S Silver Elbow Type max.Ø40 Air General 0.1 ~ 0.9 Sea Lock Function 6.0 Meter-Out Control EPDM 0.05 0 ~ 80
PJSC6-02A-TP Silver Elbow Type Air R1 / 4 General 0.1 ~ 0.9 Seal Tape Wrapped 6.0 Meter-Out Control EPDM 0.05 0 ~ 80
PJSC6-02B Silver Elbow Type max.Ø40 PP Air R1 / 4 General 0.1 ~ 0.9 6.0 Meter-In Control 0.05 0 ~ 80
PJSC6-02B-F Silver Elbow Type max.Ø40 PP Air R1 / 4 0.1 ~ 0.9 Thread Locking, without Seal Tape 6.0 FKM 0.05 0 ~ 80
PJSC6-02B-F-S Silver Elbow Type max.Ø40 Air R1 / 4 General 0.1 ~ 0.9 Sea Lock Function 6.0 Meter-In Control FKM 0 ~ 80
PJSC6-02B-S Silver max.Ø40 PP Air R1 / 4 General 0.1 ~ 0.9 Sea Lock Function Meter-In Control EPDM 0.05 0 ~ 80
PJSC6-02B-TP Silver Elbow Type PP Air R1 / 4 General 0.1 ~ 0.9 Seal Tape Wrapped 6.0 Meter-In Control EPDM 0.05
PJSC6-03A Silver Elbow Type max.Ø63 PP Air 0.1 ~ 0.9 Thread Locking, without Seal Tape 6.0 Meter-Out Control EPDM 0.05 0 ~ 80
PJSC6-03A-F Silver Elbow Type max.Ø63 PP Air R3 / 8 General 0.1 ~ 0.9 6.0 Meter-Out Control 0.05 0 ~ 80
PJSC6-03A-F-S Silver Elbow Type max.Ø63 PP Air General 0.1 ~ 0.9 Sea Lock Function 6.0 Meter-Out Control FKM 0 ~ 80
PJSC6-03A-S Silver Elbow Type max.Ø63 PP Air R3 / 8 General 0.1 ~ 0.9 Sea Lock Function 6.0 Meter-Out Control 0 ~ 80
PJSC6-03A-TP Elbow Type max.Ø63 PP Air R3 / 8 General Seal Tape Wrapped 6.0 Meter-Out Control EPDM 0.05 0 ~ 80
PJSC6-03B Silver Elbow Type max.Ø63 PP R3 / 8 General 0.1 ~ 0.9 6.0 Meter-In Control EPDM 0.05 0 ~ 80
PJSC6-03B-F Silver Elbow Type max.Ø63 PP Air R3 / 8 General 0.1 ~ 0.9 6.0 Meter-In Control 0.05 0 ~ 80
PJSC6-03B-F-S Silver Elbow Type max.Ø63 PP R3 / 8 General Sea Lock Function 6.0 Meter-In Control FKM 0.05 0 ~ 80
PJSC6-03B-S Silver Elbow Type PP Air R3 / 8 General Sea Lock Function 6.0 Meter-In Control EPDM 0.05 0 ~ 80
PJSC6-03B-TP Silver Elbow Type max.Ø63 PP Air General 0.1 ~ 0.9 Seal Tape Wrapped Meter-In Control EPDM 0.05 0 ~ 80
PJSC6-M5A Silver Elbow Type max.Ø20 PP Air M5 × 0.8 General 0.1 ~ 0.9 6.0 Meter-Out Control EPDM 0.05
PJSC6-M5A-F Elbow Type max.Ø20 PP Air M5 × 0.8 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 6.0 FKM 0.05 0 ~ 80
PJSC6-M5B Silver max.Ø20 PP Air M5 × 0.8 General 0.1 ~ 0.9 Thread Locking, without Seal Tape Meter-In Control EPDM 0.05 0 ~ 80
PJSC6-M5B-F Elbow Type max.Ø20 PP Air M5 × 0.8 General 0.1 ~ 0.9 Thread Locking, without Seal Tape Meter-In Control FKM 0.05 0 ~ 80
PJSC8-01A Silver Elbow Type max.Ø32 PP Air R1 / 8 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 8.0 EPDM 0 ~ 80
PJSC8-01A-F Elbow Type max.Ø32 PP Air R1 / 8 General Thread Locking, without Seal Tape 8.0 Meter-Out Control FKM 0.05 0 ~ 80
PJSC8-01A-F-S Elbow Type max.Ø32 PP Air R1 / 8 General 0.1 ~ 0.9 Sea Lock Function 8.0 Meter-Out Control 0.05 0 ~ 80
PJSC8-01A-S Silver Elbow Type max.Ø32 Air R1 / 8 General 0.1 ~ 0.9 Sea Lock Function 8.0 Meter-Out Control EPDM 0.05
PJSC8-01A-TP Elbow Type max.Ø32 PP Air R1 / 8 General 0.1 ~ 0.9 Seal Tape Wrapped Meter-Out Control EPDM 0.05 0 ~ 80
PJSC8-01B Silver Elbow Type Air R1 / 8 General 0.1 ~ 0.9 Thread Locking, without Seal Tape 8.0 Meter-In Control EPDM 0.05 0 ~ 80
PJSC8-01B-F Silver Elbow Type max.Ø32 PP Air General 0.1 ~ 0.9 Thread Locking, without Seal Tape 8.0 FKM 0.05 0 ~ 80
PJSC8-01B-F-S Silver Elbow Type max.Ø32 PP R1 / 8 General 0.1 ~ 0.9 Sea Lock Function Meter-In Control FKM 0.05 0 ~ 80
PJSC8-01B-S Silver Elbow Type max.Ø32 PP Air General 0.1 ~ 0.9 Sea Lock Function 8.0 Meter-In Control 0.05 0 ~ 80
PJSC8-02A-F Silver Elbow Type max.Ø40 PP Air R1 / 4 General Thread Locking, without Seal Tape Meter-Out Control FKM 0.05 0 ~ 80

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
