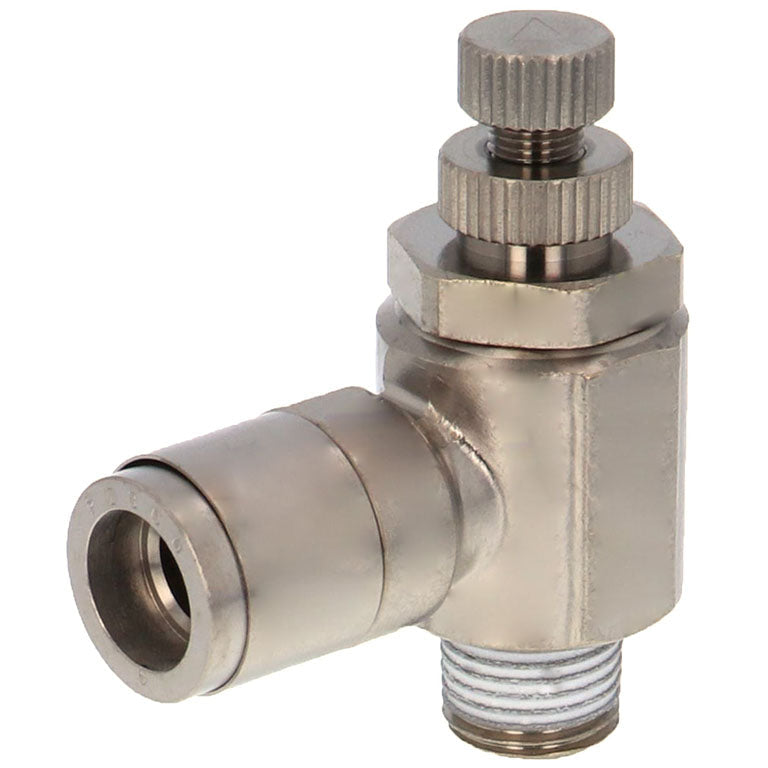

Name: PISCO Speed Controller Brass Elbow (with Cover), KJSC
Brand: PISCO
SKU: KJSC10-02A
Price: 22.3 USD

PISCO Speed Controller Brass Elbow (with Cover), KJSC

VendorPISCO

Description

PISCO KJSC — Speed Controller Brass Elbow (with Cover), genuine PISCO product.

Overview

PISCO speed controllers, check valves, hand valves, silencers and flow control components for pneumatic circuits.

Key Features

Genuine PISCO flow control component
Select by tube OD, thread and flow direction
Compact design

Specifications

Part No.	Check Valve Operating Pressure (MPa)	Operating Temperature Range (℃)	Operating Pressure Range (MPa)	Material (Rubber)	Compatible Cylinder Bore (Ømm)	Shape	Control Method	Compatible Thread	Material (Metal Hood)/Finish	Compatible Tube O.D. D (Ømm)	Cover	Fluid
KJSC10-02A	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø40	Elbow Type	Meter-Out Control	R1 / 4	All-Metal (Brass)	10.0	Part	Air
KJSC10-02A-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø40	Elbow Type	Meter-Out Control	R1 / 4	All-Metal (Brass)	10.0	Part	Air
KJSC10-02B	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø40	Elbow Type	Meter-In Control	R1 / 4	All-Metal (Brass)	10.0	Part	Air
KJSC10-02B-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø40	Elbow Type	Meter-In Control	R1 / 4	All-Metal (Brass)	10.0	Part	Air
KJSC10-03A	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø63	Elbow Type	Meter-Out Control	R3 / 8	All-Metal (Brass)	10.0	Part	Air
KJSC10-03A-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø63	Elbow Type	Meter-Out Control	R3 / 8	All-Metal (Brass)	10.0	Part	Air
KJSC10-03B	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø63	Elbow Type	Meter-In Control	R3 / 8	All-Metal (Brass)	10.0	Part	Air
KJSC10-03B-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø63	Elbow Type	Meter-In Control	R3 / 8	All-Metal (Brass)	10.0	Part	Air
KJSC10-04A	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø100	Elbow Type	Meter-Out Control	R1 / 2	All-Metal (Brass)	10.0	Part	Air
KJSC10-04A-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø100	Elbow Type	Meter-Out Control	R1 / 2	All-Metal (Brass)	10.0	Part	Air
KJSC10-04B	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø100	Elbow Type	Meter-In Control	R1 / 2	All-Metal (Brass)	10.0	Part	Air
KJSC10-04B-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø100	Elbow Type	Meter-In Control	R1 / 2	All-Metal (Brass)	10.0	Part	Air
KJSC12-03A	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø63	Elbow Type	Meter-Out Control	R3 / 8	All-Metal (Brass)	12.0	Part	Air
KJSC12-03A-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø63	Elbow Type	Meter-Out Control	R3 / 8	All-Metal (Brass)	12.0	Part	Air
KJSC12-03B	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø63	Elbow Type	Meter-In Control	R3 / 8	All-Metal (Brass)	12.0	Part	Air
KJSC12-03B-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø63	Elbow Type	Meter-In Control	R3 / 8	All-Metal (Brass)	12.0	Part	Air
KJSC12-04A	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø100	Elbow Type	Meter-Out Control	R1 / 2	All-Metal (Brass)	12.0	Part	Air
KJSC12-04A-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø100	Elbow Type	Meter-Out Control	R1 / 2	All-Metal (Brass)	12.0	Part	Air
KJSC12-04B	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø100	Elbow Type	Meter-In Control	R1 / 2	All-Metal (Brass)	12.0	Part	Air
KJSC12-04B-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø100	Elbow Type	Meter-In Control	R1 / 2	All-Metal (Brass)	12.0	Part	Air
KJSC4-01A	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø32	Elbow Type	Meter-Out Control	R1 / 8	All-Metal (Brass)	4.0	Part	Air
KJSC4-01A-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø32	Elbow Type	Meter-Out Control	R1 / 8	All-Metal (Brass)	4.0	Part	Air
KJSC4-01B	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø32	Elbow Type	Meter-In Control	R1 / 8	All-Metal (Brass)	4.0	Part	Air
KJSC4-01B-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø32	Elbow Type	Meter-In Control	R1 / 8	All-Metal (Brass)	4.0	Part	Air
KJSC4-M5A	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø20	Elbow Type	Meter-Out Control	M5 × 0.8	All-Metal (Brass)	4.0	Part	Air
KJSC4-M5A-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø20	Elbow Type	Meter-Out Control	M5 × 0.8	All-Metal (Brass)	4.0	Part	Air
KJSC4-M5B	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø20	Elbow Type	Meter-In Control	M5 × 0.8	All-Metal (Brass)	4.0	Part	Air
KJSC4-M5B-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø20	Elbow Type	Meter-In Control	M5 × 0.8	All-Metal (Brass)	4.0	Part	Air
KJSC6-01A	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø32	Elbow Type	Meter-Out Control	R1 / 8	All-Metal (Brass)	6.0	Part	Air
KJSC6-01A-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø32	Elbow Type	Meter-Out Control	R1 / 8	All-Metal (Brass)	6.0	Part	Air
KJSC6-01B	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø32	Elbow Type	Meter-In Control	R1 / 8	All-Metal (Brass)	6.0	Part	Air
KJSC6-01B-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø32	Elbow Type	Meter-In Control	R1 / 8	All-Metal (Brass)	6.0	Part	Air
KJSC6-02A	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø40	Elbow Type	Meter-Out Control	R1 / 4	All-Metal (Brass)	6.0	Part	Air
KJSC6-02A-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø40	Elbow Type	Meter-Out Control	R1 / 4	All-Metal (Brass)	6.0	Part	Air
KJSC6-02B	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø40	Elbow Type	Meter-In Control	R1 / 4	All-Metal (Brass)	6.0	Part	Air
KJSC6-02B-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø40	Elbow Type	Meter-In Control	R1 / 4	All-Metal (Brass)	6.0	Part	Air
KJSC6-03A	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø63	Elbow Type	Meter-Out Control	R3 / 8	All-Metal (Brass)	6.0	Part	Air
KJSC6-03A-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø63	Elbow Type	Meter-Out Control	R3 / 8	All-Metal (Brass)	6.0	Part	Air
KJSC6-03B	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø63	Elbow Type	Meter-In Control	R3 / 8	All-Metal (Brass)	6.0	Part	Air
KJSC6-03B-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø63	Elbow Type	Meter-In Control	R3 / 8	All-Metal (Brass)	6.0	Part	Air
KJSC6-M5A	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø20	Elbow Type	Meter-Out Control	M5 × 0.8	All-Metal (Brass)	6.0	Part	Air
KJSC6-M5A-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø20	Elbow Type	Meter-Out Control	M5 × 0.8	All-Metal (Brass)	6.0	Part	Air
KJSC6-M5B	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø20	Elbow Type	Meter-In Control	M5 × 0.8	All-Metal (Brass)	6.0	Part	Air
KJSC6-M5B-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø20	Elbow Type	Meter-In Control	M5 × 0.8	All-Metal (Brass)	6.0	Part	Air
KJSC8-01A	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø32	Elbow Type	Meter-Out Control	R1 / 8	All-Metal (Brass)	8.0	Part	Air
KJSC8-01A-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø32	Elbow Type	Meter-Out Control	R1 / 8	All-Metal (Brass)	8.0	Part	Air
KJSC8-01B	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø32	Elbow Type	Meter-In Control	R1 / 8	All-Metal (Brass)	8.0	Part	Air
KJSC8-01B-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø32	Elbow Type	Meter-In Control	R1 / 8	All-Metal (Brass)	8.0	Part	Air
KJSC8-02A	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø40	Elbow Type	Meter-Out Control	R1 / 4	All-Metal (Brass)	8.0	Part	Air
KJSC8-02A-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø40	Elbow Type	Meter-Out Control	R1 / 4	All-Metal (Brass)	8.0	Part	Air
KJSC8-02B	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø40	Elbow Type	Meter-In Control	R1 / 4	All-Metal (Brass)	8.0	Part	Air
KJSC8-02B-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø40	Elbow Type	Meter-In Control	R1 / 4	All-Metal (Brass)	8.0	Part	Air
KJSC8-03A	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø63	Elbow Type	Meter-Out Control	R3 / 8	All-Metal (Brass)	8.0	Part	Air
KJSC8-03A-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø63	Elbow Type	Meter-Out Control	R3 / 8	All-Metal (Brass)	8.0	Part	Air
KJSC8-03B	0.05	0 ~ 100	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	HNBR Spec	max.Ø63	Elbow Type	Meter-In Control	R3 / 8	All-Metal (Brass)	8.0	Part	Air
KJSC8-03B-F	0.05	0 ~ 120 (Option)	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	FKM Spec	max.Ø63	Elbow Type	Meter-In Control	R3 / 8	All-Metal (Brass)	8.0	Part	Air

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

Genuine PISCO product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
