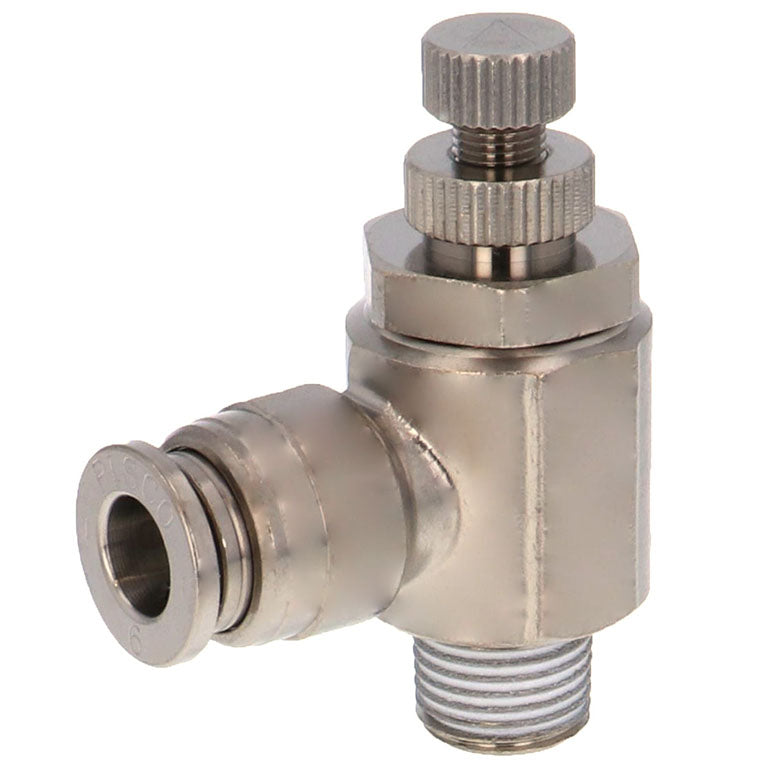

Name: PISCO Speed Controller Brass Elbow (without Cover), KJSC
Brand: PISCO
SKU: KJSC10-02A-1
Price: 21.53 USD

PISCO Speed Controller Brass Elbow (without Cover), KJSC

VendorPISCO

Description

PISCO KJSC — Speed Controller Brass Elbow (without Cover), genuine PISCO product.

Overview

PISCO speed controllers, check valves, hand valves, silencers and flow control components for pneumatic circuits.

Key Features

Genuine PISCO flow control component
Select by tube OD, thread and flow direction
Compact design

Specifications

Part No.	Compatible Cylinder Bore (Ømm)	Material (Rubber)	Compatible Tube O.D. D (Ømm)	Cover	Operating Pressure Range (MPa)	Compatible Thread	Material (Metal Hood)/Finish	Operating Temperature Range (℃)	Check Valve Operating Pressure (MPa)	Control Method	Fluid	Shape
KJSC10-02A-1	max.Ø40	HNBR Spec	10.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 4	All-Metal (Brass)	0 ~ 100	0.05	Meter-Out Control	Air	Elbow Type
KJSC10-02A-1-F	max.Ø40	FKM Spec	10.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 4	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-Out Control	Air	Elbow Type
KJSC10-02B-1	max.Ø40	HNBR Spec	10.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 4	All-Metal (Brass)	0 ~ 100	0.05	Meter-In Control	Air	Elbow Type
KJSC10-02B-1-F	max.Ø40	FKM Spec	10.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 4	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-In Control	Air	Elbow Type
KJSC10-03A-1	max.Ø63	HNBR Spec	10.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 100	0.05	Meter-Out Control	Air	Elbow Type
KJSC10-03A-1-F	max.Ø63	FKM Spec	10.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-Out Control	Air	Elbow Type
KJSC10-03B-1	max.Ø63	HNBR Spec	10.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 100	0.05	Meter-In Control	Air	Elbow Type
KJSC10-03B-1-F	max.Ø63	FKM Spec	10.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-In Control	Air	Elbow Type
KJSC10-04A-1	max.Ø100	HNBR Spec	10.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 2	All-Metal (Brass)	0 ~ 100	0.05	Meter-Out Control	Air	Elbow Type
KJSC10-04A-1-F	max.Ø100	FKM Spec	10.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 2	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-Out Control	Air	Elbow Type
KJSC10-04B-1	max.Ø100	HNBR Spec	10.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 2	All-Metal (Brass)	0 ~ 100	0.05	Meter-In Control	Air	Elbow Type
KJSC10-04B-1-F	max.Ø100	FKM Spec	10.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 2	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-In Control	Air	Elbow Type
KJSC12-03A-1	max.Ø63	HNBR Spec	12.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 100	0.05	Meter-Out Control	Air	Elbow Type
KJSC12-03A-1-F	max.Ø63	FKM Spec	12.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-Out Control	Air	Elbow Type
KJSC12-03B-1	max.Ø63	HNBR Spec	12.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 100	0.05	Meter-In Control	Air	Elbow Type
KJSC12-03B-1-F	max.Ø63	FKM Spec	12.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-In Control	Air	Elbow Type
KJSC12-04A-1	max.Ø100	HNBR Spec	12.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 2	All-Metal (Brass)	0 ~ 100	0.05	Meter-Out Control	Air	Elbow Type
KJSC12-04A-1-F	max.Ø100	FKM Spec	12.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 2	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-Out Control	Air	Elbow Type
KJSC12-04B-1	max.Ø100	HNBR Spec	12.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 2	All-Metal (Brass)	0 ~ 100	0.05	Meter-In Control	Air	Elbow Type
KJSC12-04B-1-F	max.Ø100	FKM Spec	12.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 2	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-In Control	Air	Elbow Type
KJSC4-01A-1	max.Ø32	HNBR Spec	4.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 8	All-Metal (Brass)	0 ~ 100	0.05	Meter-Out Control	Air	Elbow Type
KJSC4-01A-1-F	max.Ø32	FKM Spec	4.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-Out Control	Air	Elbow Type
KJSC4-01B-1	max.Ø32	HNBR Spec	4.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 8	All-Metal (Brass)	0 ~ 100	0.05	Meter-In Control	Air	Elbow Type
KJSC4-01B-1-F	max.Ø32	FKM Spec	4.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-In Control	Air	Elbow Type
KJSC4-M5A-1	max.Ø20	HNBR Spec	4.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	M5 × 0.8	All-Metal (Brass)	0 ~ 100	0.05	Meter-Out Control	Air	Elbow Type
KJSC4-M5A-1-F	max.Ø20	FKM Spec	4.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	M5 × 0.8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-Out Control	Air	Elbow Type
KJSC4-M5B-1	max.Ø20	HNBR Spec	4.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	M5 × 0.8	All-Metal (Brass)	0 ~ 100	0.05	Meter-In Control	Air	Elbow Type
KJSC4-M5B-1-F	max.Ø20	FKM Spec	4.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	M5 × 0.8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-In Control	Air	Elbow Type
KJSC6-01A-1	max.Ø32	HNBR Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 8	All-Metal (Brass)	0 ~ 100	0.05	Meter-Out Control	Air	Elbow Type
KJSC6-01A-1-F	max.Ø32	FKM Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-Out Control	Air	Elbow Type
KJSC6-01B-1	max.Ø32	HNBR Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 8	All-Metal (Brass)	0 ~ 100	0.05	Meter-In Control	Air	Elbow Type
KJSC6-01B-1-F	max.Ø32	FKM Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-In Control	Air	Elbow Type
KJSC6-02A-1	max.Ø40	HNBR Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 4	All-Metal (Brass)	0 ~ 100	0.05	Meter-Out Control	Air	Elbow Type
KJSC6-02A-1-F	max.Ø40	FKM Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 4	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-Out Control	Air	Elbow Type
KJSC6-02B-1	max.Ø40	HNBR Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 4	All-Metal (Brass)	0 ~ 100	0.05	Meter-In Control	Air	Elbow Type
KJSC6-02B-1-F	max.Ø40	FKM Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 4	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-In Control	Air	Elbow Type
KJSC6-03A-1	max.Ø63	HNBR Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 100	0.05	Meter-Out Control	Air	Elbow Type
KJSC6-03A-1-F	max.Ø63	FKM Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-Out Control	Air	Elbow Type
KJSC6-03B-1	max.Ø63	HNBR Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 100	0.05	Meter-In Control	Air	Elbow Type
KJSC6-03B-1-F	max.Ø63	FKM Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-In Control	Air	Elbow Type
KJSC6-M5A-1	max.Ø20	HNBR Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	M5 × 0.8	All-Metal (Brass)	0 ~ 100	0.05	Meter-Out Control	Air	Elbow Type
KJSC6-M5A-1-F	max.Ø20	FKM Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	M5 × 0.8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-Out Control	Air	Elbow Type
KJSC6-M5B-1	max.Ø20	HNBR Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	M5 × 0.8	All-Metal (Brass)	0 ~ 100	0.05	Meter-In Control	Air	Elbow Type
KJSC6-M5B-1-F	max.Ø20	FKM Spec	6.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	M5 × 0.8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-In Control	Air	Elbow Type
KJSC8-01A-1	max.Ø32	HNBR Spec	8.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 8	All-Metal (Brass)	0 ~ 100	0.05	Meter-Out Control	Air	Elbow Type
KJSC8-01A-1-F	max.Ø32	FKM Spec	8.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-Out Control	Air	Elbow Type
KJSC8-01B-1	max.Ø32	HNBR Spec	8.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 8	All-Metal (Brass)	0 ~ 100	0.05	Meter-In Control	Air	Elbow Type
KJSC8-01B-1-F	max.Ø32	FKM Spec	8.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-In Control	Air	Elbow Type
KJSC8-02A-1	max.Ø40	HNBR Spec	8.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 4	All-Metal (Brass)	0 ~ 100	0.05	Meter-Out Control	Air	Elbow Type
KJSC8-02A-1-F	max.Ø40	FKM Spec	8.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 4	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-Out Control	Air	Elbow Type
KJSC8-02B-1	max.Ø40	HNBR Spec	8.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 4	All-Metal (Brass)	0 ~ 100	0.05	Meter-In Control	Air	Elbow Type
KJSC8-02B-1-F	max.Ø40	FKM Spec	8.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R1 / 4	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-In Control	Air	Elbow Type
KJSC8-03A-1	max.Ø63	HNBR Spec	8.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 100	0.05	Meter-Out Control	Air	Elbow Type
KJSC8-03A-1-F	max.Ø63	FKM Spec	8.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-Out Control	Air	Elbow Type
KJSC8-03B-1	max.Ø63	HNBR Spec	8.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 100	0.05	Meter-In Control	Air	Elbow Type
KJSC8-03B-1-F	max.Ø63	FKM Spec	8.0	None	0.1 ~ 1.0 (at 20 ℃ ambient and fluid temperature)	R3 / 8	All-Metal (Brass)	0 ~ 120 (Option)	0.05	Meter-In Control	Air	Elbow Type

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

Genuine PISCO product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
