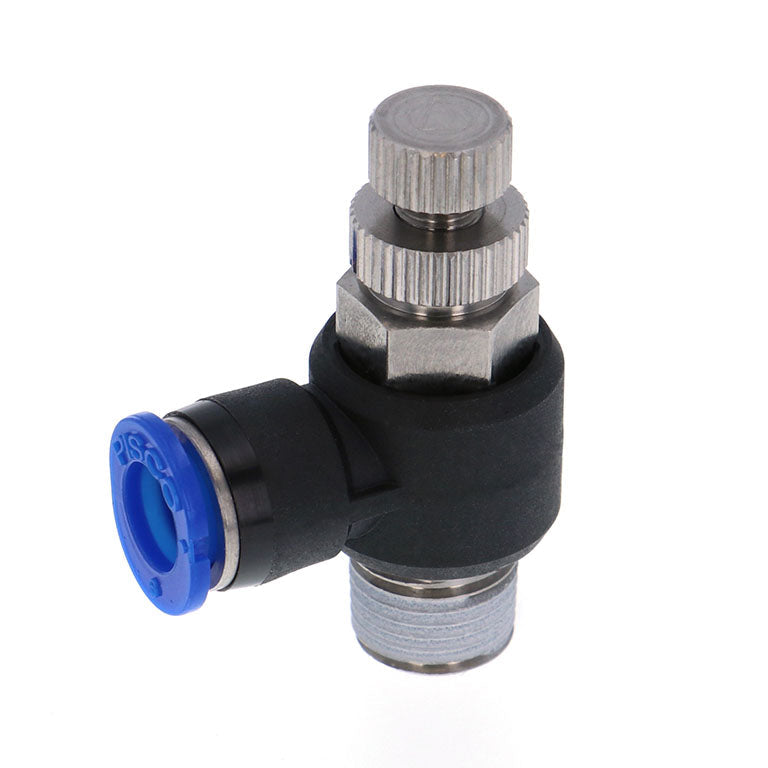

PISCO Speed Controller Corrosion-Resistant SUS303 Equivalent Elbow, SJSC

Description

PISCO SJSC — Speed Controller Corrosion-Resistant SUS303 Equivalent Elbow, genuine PISCO product.

Overview

PISCO speed controllers, check valves, hand valves, silencers and flow control components for pneumatic circuits.

Key Features

  • Genuine PISCO flow control component
  • Select by tube OD, thread and flow direction
  • Compact design

Specifications

Part No. Lock Nut Compatible Cylinder Bore (Ømm) Control Method Material (Metal Hood)/Finish Operating Pressure Range (MPa) Compatible Thread Compatible Tube O.D. D (Ømm) Fluid Check Valve Operating Pressure (MPa) Shape Operating Temperature Range (℃)
SJSC10-02A White (Natural) max.Ø40 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R1 / 4 10.0 Air 0.05 Elbow Type 0 ~ 60
SJSC10-02B Black max.Ø40 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 4 10.0 Air 0.05 Elbow Type 0 ~ 60
SJSC10-03A White (Natural) max.Ø63 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 10.0 Air 0.05 Elbow Type 0 ~ 60
SJSC10-03B Black max.Ø63 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 10.0 Air 0.05 Elbow Type 0 ~ 60
SJSC10-04A White (Natural) max.Ø100 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R1 / 2 10.0 Air 0.05 Elbow Type 0 ~ 60
SJSC10-04B Black max.Ø100 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 2 10.0 Air 0.05 Elbow Type 0 ~ 60
SJSC12-03A White (Natural) max.Ø63 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 12.0 Air 0.05 Elbow Type 0 ~ 60
SJSC12-03B Black max.Ø63 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 12.0 Air 0.05 Elbow Type 0 ~ 60
SJSC12-04A White (Natural) max.Ø100 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R1 / 2 12.0 Air 0.05 Elbow Type 0 ~ 60
SJSC12-04B Black max.Ø100 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 2 12.0 Air 0.05 Elbow Type 0 ~ 60
SJSC4-01A White (Natural) max.Ø32 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R1 / 8 4.0 Air 0.05 Elbow Type 0 ~ 60
SJSC4-01B Black max.Ø32 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 8 4.0 Air 0.05 Elbow Type 0 ~ 60
SJSC4-M5B Black max.Ø20 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 M0.5 × 0.8 4.0 Air 0.05 Elbow Type 0 ~ 60
SJSC6-01B Black max.Ø32 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 8 6.0 Air 0.05 Elbow Type 0 ~ 60
SJSC6-02B Black max.Ø40 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 4 6.0 Air 0.05 Elbow Type 0 ~ 60
SJSC6-03A White (Natural) max.Ø63 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 6.0 Air 0.05 Elbow Type 0 ~ 60
SJSC6-03B Black max.Ø63 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 6.0 Air 0.05 Elbow Type 0 ~ 60
SJSC6-M5A White (Natural) max.Ø32 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 M0.5 × 0.8 6.0 Air 0.05 Elbow Type 0 ~ 60
SJSC6-M5B Black max.Ø20 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 M0.5 × 0.8 6.0 Air 0.05 Elbow Type 0 ~ 60
SJSC8-01A White (Natural) max.Ø40 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R1 / 8 8.0 Air 0.05 Elbow Type 0 ~ 60
SJSC8-01B Black max.Ø32 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 8 8.0 Air 0.05 Elbow Type 0 ~ 60
SJSC8-02B Black max.Ø40 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 4 8.0 Air 0.05 Elbow Type 0 ~ 60
SJSC8-03A White (Natural) max.Ø63 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 8.0 Air 0.05 Elbow Type 0 ~ 60
SJSC8-03B Black max.Ø63 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 8.0 Air 0.05 Elbow Type 0 ~ 60
SJSC8-04A White (Natural) max.Ø100 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R1 / 2 8.0 Air 0.05 Elbow Type 0 ~ 60
SJSC8-04B Black max.Ø100 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 2 8.0 Air 0.05 Elbow Type 0 ~ 60

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

PISCO SJSC — Speed Controller Corrosion-Resistant SUS303 Equivalent Elbow, genuine PISCO product.OverviewPISCO speed controllers, check valves, hand valves, silencers and... Read more

SKU: SJSC10-02A

$44.61 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    PISCO SJSC — Speed Controller Corrosion-Resistant SUS303 Equivalent Elbow, genuine PISCO product.

    Overview

    PISCO speed controllers, check valves, hand valves, silencers and flow control components for pneumatic circuits.

    Key Features

    • Genuine PISCO flow control component
    • Select by tube OD, thread and flow direction
    • Compact design

    Specifications

    Part No. Lock Nut Compatible Cylinder Bore (Ømm) Control Method Material (Metal Hood)/Finish Operating Pressure Range (MPa) Compatible Thread Compatible Tube O.D. D (Ømm) Fluid Check Valve Operating Pressure (MPa) Shape Operating Temperature Range (℃)
    SJSC10-02A White (Natural) max.Ø40 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R1 / 4 10.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC10-02B Black max.Ø40 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 4 10.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC10-03A White (Natural) max.Ø63 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 10.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC10-03B Black max.Ø63 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 10.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC10-04A White (Natural) max.Ø100 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R1 / 2 10.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC10-04B Black max.Ø100 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 2 10.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC12-03A White (Natural) max.Ø63 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 12.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC12-03B Black max.Ø63 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 12.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC12-04A White (Natural) max.Ø100 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R1 / 2 12.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC12-04B Black max.Ø100 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 2 12.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC4-01A White (Natural) max.Ø32 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R1 / 8 4.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC4-01B Black max.Ø32 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 8 4.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC4-M5B Black max.Ø20 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 M0.5 × 0.8 4.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC6-01B Black max.Ø32 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 8 6.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC6-02B Black max.Ø40 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 4 6.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC6-03A White (Natural) max.Ø63 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 6.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC6-03B Black max.Ø63 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 6.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC6-M5A White (Natural) max.Ø32 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 M0.5 × 0.8 6.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC6-M5B Black max.Ø20 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 M0.5 × 0.8 6.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC8-01A White (Natural) max.Ø40 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R1 / 8 8.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC8-01B Black max.Ø32 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 8 8.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC8-02B Black max.Ø40 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 4 8.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC8-03A White (Natural) max.Ø63 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 8.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC8-03B Black max.Ø63 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R3 / 8 8.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC8-04A White (Natural) max.Ø100 Meter-Out Control Special Stainless Steel 0.1 ~ 0.9 R1 / 2 8.0 Air 0.05 Elbow Type 0 ~ 60
    SJSC8-04B Black max.Ø100 Meter-In Control Special Stainless Steel 0.1 ~ 0.9 R1 / 2 8.0 Air 0.05 Elbow Type 0 ~ 60

    How to Order

    Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

    About PISCO

    PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

    Ordering & Shipping

    • Genuine PISCO product sourced through Korean distribution
    • Lead time varies by model; most items ship within 2-3 weeks
    • Ships worldwide from South Korea by FedEx International Priority Express
    • Import duties and taxes are payable by the recipient
    • Bulk and trade pricing available on request
