Description

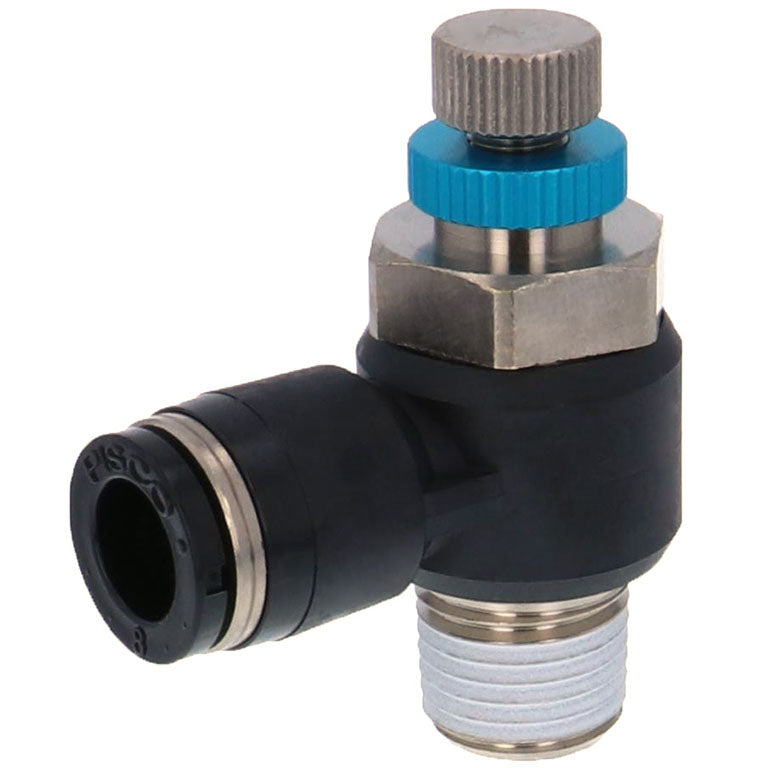

PISCO JSC — Speed Controller Flow Elbow, genuine PISCO product.
Overview
PISCO speed controllers, check valves, hand valves, silencers and flow control components for pneumatic circuits.
Key Features
- Genuine PISCO flow control component
- Select by tube OD, thread and flow direction
- Compact design
Specifications
| Part No. |
Operating Pressure Range (MPa) |
Material (Metal Hood)/Finish |
Shape |
Marking |
Material |
Compatible Cylinder Bore (Ømm) |
Control Method |
Operating Temperature Range (℃) |
Check Valve Operating Pressure (MPa) |
Lock Nut |
Compatible Thread |
Compatible Tube O.D. D (Ømm) |
Color |
Fluid |
| JSC10-02AH |
0.1 ~ 0.7 |
|
Elbow Type |
AG |
Release Ring / POM Resin Body / PBT |
|
Meter-Out Control |
0 ~ 60 |
0.05 |
Blue |
R1 / 4 |
10.0 |
Release Ring Resin Body / Black |
Air |
| JSC10-03AH |
0.1 ~ 0.7 |
Brass (Electroless Nickel Plating) |
Elbow Type |
AG |
Release Ring / POM Resin Body / PBT |
max.Ø100 |
Meter-Out Control |
0 ~ 60 |
0.05 |
|
R3 / 8 |
|
Release Ring Resin Body / Black |
Air |
| JSC12-03AH |
0.1 ~ 0.7 |
Brass (Electroless Nickel Plating) |
Elbow Type |
AG |
|
max.Ø100 |
Meter-Out Control |
0 ~ 60 |
0.05 |
Blue |
R3 / 8 |
12.0 |
Release Ring Resin Body / Black |
|
| JSC12-04AH |
0.1 ~ 0.7 |
Brass (Electroless Nickel Plating) |
|
AG |
Release Ring / POM Resin Body / PBT |
max.Ø100 |
Meter-Out Control |
0 ~ 60 |
|
Blue |
R1 / 2 |
12.0 |
Release Ring Resin Body / Black |
Air |
| JSC6-01AH |
0.1 ~ 0.7 |
Brass (Electroless Nickel Plating) |
Elbow Type |
AG |
Release Ring / POM Resin Body / PBT |
max.Ø40 |
|
0 ~ 60 |
|
Blue |
R1 / 8 |
6.0 |
Release Ring Resin Body / Black |
Air |
| JSC6-02AH |
0.1 ~ 0.7 |
Brass (Electroless Nickel Plating) |
Elbow Type |
AG |
Release Ring / POM Resin Body / PBT |
max.Ø50 |
|
|
0.05 |
Blue |
R1 / 4 |
6.0 |
Release Ring Resin Body / Black |
Air |
| JSC8-01AH |
|
Brass (Electroless Nickel Plating) |
Elbow Type |
AG |
Release Ring / POM Resin Body / PBT |
max.Ø40 |
Meter-Out Control |
0 ~ 60 |
0.05 |
Blue |
R1 / 8 |
|
Release Ring Resin Body / Black |
Air |
| JSC8-02AH |
0.1 ~ 0.7 |
|
|
AG |
Release Ring / POM Resin Body / PBT |
max.Ø63 |
Meter-Out Control |
0 ~ 60 |
0.05 |
Blue |
R1 / 4 |
8.0 |
Release Ring Resin Body / Black |
Air |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
