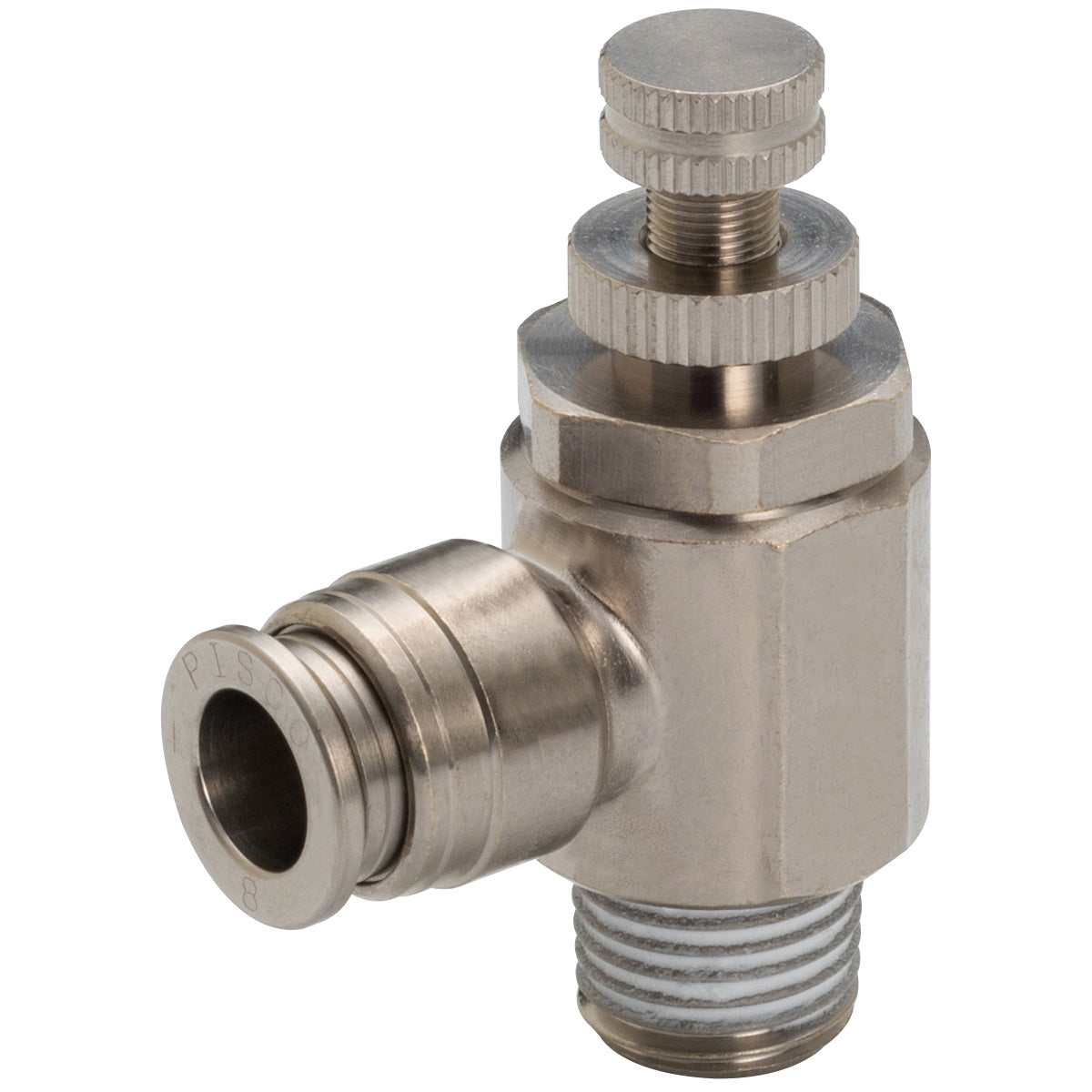

PISCO Throttle Valve Brass Elbow (without Cover), KJNC

Description

PISCO KJNC — Throttle Valve Brass Elbow (without Cover), genuine PISCO product.

Overview

PISCO speed controllers, check valves, hand valves, silencers and flow control components for pneumatic circuits.

Key Features

  • Genuine PISCO flow control component
  • Select by tube OD, thread and flow direction
  • Compact design

Specifications

Part No. Compatible Tube O.D. D (Ømm) Compatible Thread Operating Vacuum Pressure (kPa) Shape Operating Pressure Range (MPa) Cover Rubber Part Material Fluid Operating Temperature Range (℃)
KJNC10-02-1 10.0 R1 / 4 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
KJNC10-02-1-F 10.0 R1 / 4 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
KJNC10-03-1 10.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
KJNC10-03-1-F 10.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
KJNC10-04-1 10.0 R1 / 2 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
KJNC10-04-1-F 10.0 R1 / 2 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
KJNC12-03-1 12.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
KJNC12-03-1-F 12.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
KJNC12-04-1 12.0 R1 / 2 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
KJNC12-04-1-F 12.0 R1 / 2 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
KJNC4-01-1 4.0 R1 / 8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
KJNC4-01-1-F 4.0 R1 / 8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
KJNC4-M5-1 4.0 M5 × 0.8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
KJNC4-M5-1-F 4.0 M5 × 0.8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
KJNC6-01-1 6.0 R1 / 8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
KJNC6-01-1-F 6.0 R1 / 8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
KJNC6-02-1 6.0 R1 / 4 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
KJNC6-02-1-F 6.0 R1 / 4 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
KJNC6-03-1 6.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
KJNC6-03-1-F 6.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
KJNC6-M5-1 6.0 M5 × 0.8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
KJNC6-M5-1-F 6.0 M5 × 0.8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
KJNC8-01-1 8.0 R1 / 8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
KJNC8-01-1-F 8.0 R1 / 8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
KJNC8-02-1 8.0 R1 / 4 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
KJNC8-02-1-F 8.0 R1 / 4 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
KJNC8-03-1 8.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
KJNC8-03-1-F 8.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

PISCO KJNC — Throttle Valve Brass Elbow (without Cover), genuine PISCO product.OverviewPISCO speed controllers, check valves, hand valves, silencers and... Read more

SKU: KJNC10-02-1

$17.68 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    PISCO KJNC — Throttle Valve Brass Elbow (without Cover), genuine PISCO product.

    Overview

    PISCO speed controllers, check valves, hand valves, silencers and flow control components for pneumatic circuits.

    Key Features

    • Genuine PISCO flow control component
    • Select by tube OD, thread and flow direction
    • Compact design

    Specifications

    Part No. Compatible Tube O.D. D (Ømm) Compatible Thread Operating Vacuum Pressure (kPa) Shape Operating Pressure Range (MPa) Cover Rubber Part Material Fluid Operating Temperature Range (℃)
    KJNC10-02-1 10.0 R1 / 4 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
    KJNC10-02-1-F 10.0 R1 / 4 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
    KJNC10-03-1 10.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
    KJNC10-03-1-F 10.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
    KJNC10-04-1 10.0 R1 / 2 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
    KJNC10-04-1-F 10.0 R1 / 2 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
    KJNC12-03-1 12.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
    KJNC12-03-1-F 12.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
    KJNC12-04-1 12.0 R1 / 2 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
    KJNC12-04-1-F 12.0 R1 / 2 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
    KJNC4-01-1 4.0 R1 / 8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
    KJNC4-01-1-F 4.0 R1 / 8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
    KJNC4-M5-1 4.0 M5 × 0.8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
    KJNC4-M5-1-F 4.0 M5 × 0.8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
    KJNC6-01-1 6.0 R1 / 8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
    KJNC6-01-1-F 6.0 R1 / 8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
    KJNC6-02-1 6.0 R1 / 4 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
    KJNC6-02-1-F 6.0 R1 / 4 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
    KJNC6-03-1 6.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
    KJNC6-03-1-F 6.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
    KJNC6-M5-1 6.0 M5 × 0.8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
    KJNC6-M5-1-F 6.0 M5 × 0.8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
    KJNC8-01-1 8.0 R1 / 8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
    KJNC8-01-1-F 8.0 R1 / 8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
    KJNC8-02-1 8.0 R1 / 4 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
    KJNC8-02-1-F 8.0 R1 / 4 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120
    KJNC8-03-1 8.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None HNBR Air, Water 0 ~ 100
    KJNC8-03-1-F 8.0 R3 / 8 -100.0 Elbow Type 0 ~ 1.0 None FKM Air, Water 0 ~ 120

    How to Order

    Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

    About PISCO

    PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

    Ordering & Shipping

    • Genuine PISCO product sourced through Korean distribution
    • Lead time varies by model; most items ship within 2-3 weeks
    • Ships worldwide from South Korea by FedEx International Priority Express
    • Import duties and taxes are payable by the recipient
    • Bulk and trade pricing available on request
