Description

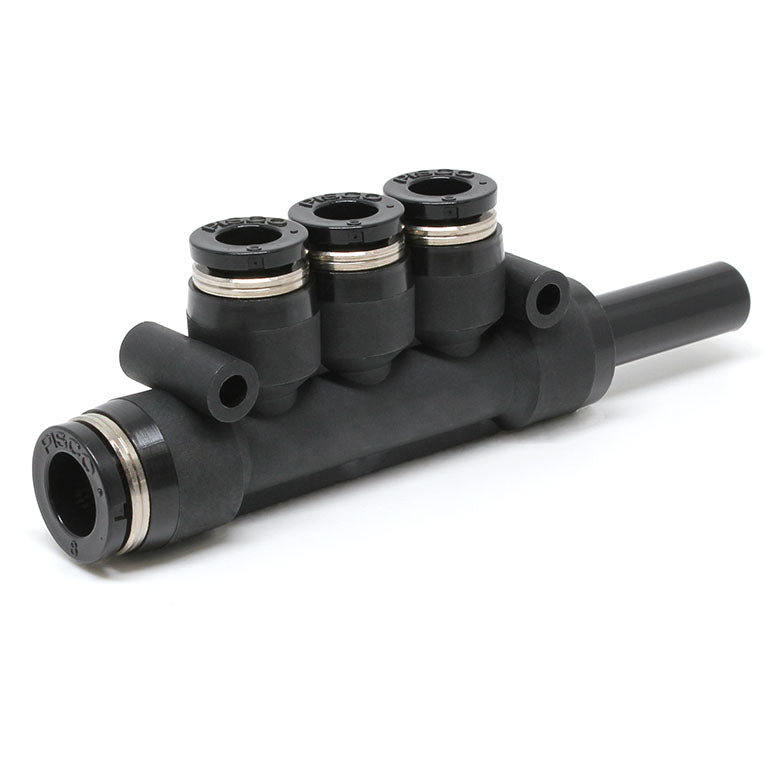

PISCO PKJ8 — Branch Union Triple, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Orifice Dia. (Ømm) |
Mass (g) |
Dimension E1 (mm) |
Dimension F2 (mm) |
Dimension F1 (mm) |
Compatible Fitting Dia. D3 (Ømm) |
Operating Vacuum Pressure (kPa) |
Max. Operating Pressure (MPa) |
Dimension E3 (mm) |
Tube O.D. (mm) |
Dimension C2 (mm) |
Dimension B (mm) |
Dimension C1 (mm) |
Material (Metal Hood)/Finish |
Material |
Dimension P2 (Ømm) |
Cross-Sectional Area (㎟) |
Shape |
Fluid |
Color |
| PKJ8-4W |
|
18.0 |
26.5 |
9.2 |
|
8.0 |
-100.0 |
|
|
8X4 |
|
81.2 |
18.1 |
Brass (Electroless Nickel Plating) |
|
10.0 |
|
Branch Union Triple |
|
Light Gray |
| PKJ8-6W |
4.6 |
21.0 |
|
|
40.2 |
8.0 |
|
1.0 |
23.2 |
|
17.0 |
|
|
|
Release Ring / POM Resin Body / PBT |
13.0 |
10.0 |
|
Air, Water (conditional) |
Light Gray |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About PISCO
PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.
Ordering & Shipping
- Genuine PISCO product sourced through Korean distribution
- Lead time varies by model; most items ship within 2-3 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
