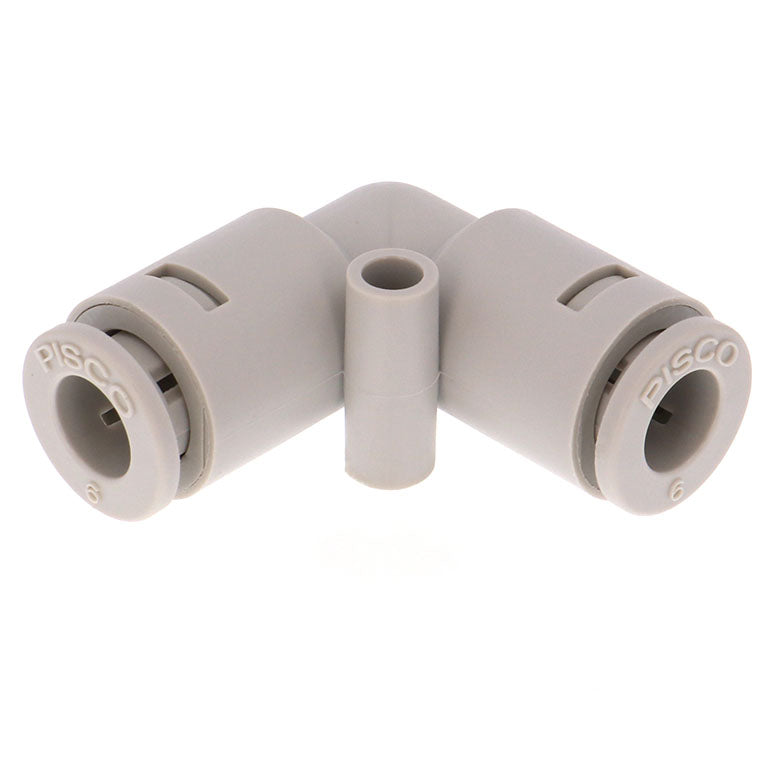

PISCO Tube Fitting Chemical Union Elbow, APV

Description

PISCO APV — Tube Fitting Chemical Union Elbow, genuine PISCO product.

Overview

PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.

Key Features

  • Genuine PISCO fitting
  • Select by tube OD and connection thread (R, Rc, G, M, UNF)
  • Fast one-touch tube connection

Specifications

Part No. Type Seal Cross-Sectional Area (㎟) Max. Operating Pressure (MPa) Operating Vacuum Pressure (kPa) Operating Temperature Range (℃) Seal Material Tube O.D. (mm) Shape Packaging Fluid Mass (g)
APV10 Chemical Type without Seal Tape 32.0 0.9 -100.0 0 ~ 80 (no freezing) FKM 10.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 9.6
APV10E Chemical Type without Seal Tape 32.0 0.9 -100.0 0 ~ 80 (no freezing) EPDM 10.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 9.6
APV10N Chemical Type without Seal Tape 32.0 0.9 -100.0 0 ~ 60 (no freezing) NBR 10.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 9.6
APV12 Chemical Type without Seal Tape 43.0 0.9 -100.0 0 ~ 80 (no freezing) FKM 12.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 15.0
APV12E Chemical Type without Seal Tape 43.0 0.9 -100.0 0 ~ 80 (no freezing) EPDM 12.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 15.0
APV12N Chemical Type without Seal Tape 43.0 0.9 -100.0 0 ~ 60 (no freezing) NBR 12.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 15.0
APV4 Chemical Type without Seal Tape 3.8 0.9 -100.0 0 ~ 80 (no freezing) FKM 4.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 3.1
APV4E Chemical Type without Seal Tape 3.8 0.9 -100.0 0 ~ 80 (no freezing) EPDM 4.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 3.1
APV4N Chemical Type without Seal Tape 3.8 0.9 -100.0 0 ~ 60 (no freezing) NBR 4.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 3.1
APV6 Chemical Type without Seal Tape 9.0 0.9 -100.0 0 ~ 80 (no freezing) FKM 6.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 4.3
APV6E Chemical Type without Seal Tape 9.0 0.9 -100.0 0 ~ 80 (no freezing) EPDM 6.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 4.3
APV6N Chemical Type without Seal Tape 9.0 0.9 -100.0 0 ~ 60 (no freezing) NBR 6.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 4.3
APV8 Chemical Type without Seal Tape 19.0 0.9 -100.0 0 ~ 80 (no freezing) FKM 8.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 6.1
APV8E Chemical Type without Seal Tape 19.0 0.9 -100.0 0 ~ 80 (no freezing) EPDM 8.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 6.1
APV8N Chemical Type without Seal Tape 19.0 0.9 -100.0 0 ~ 60 (no freezing) NBR 8.0 Union Elbow Standard Packaging Air, Water (conditional), Other (conditional) 6.1

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
