Description

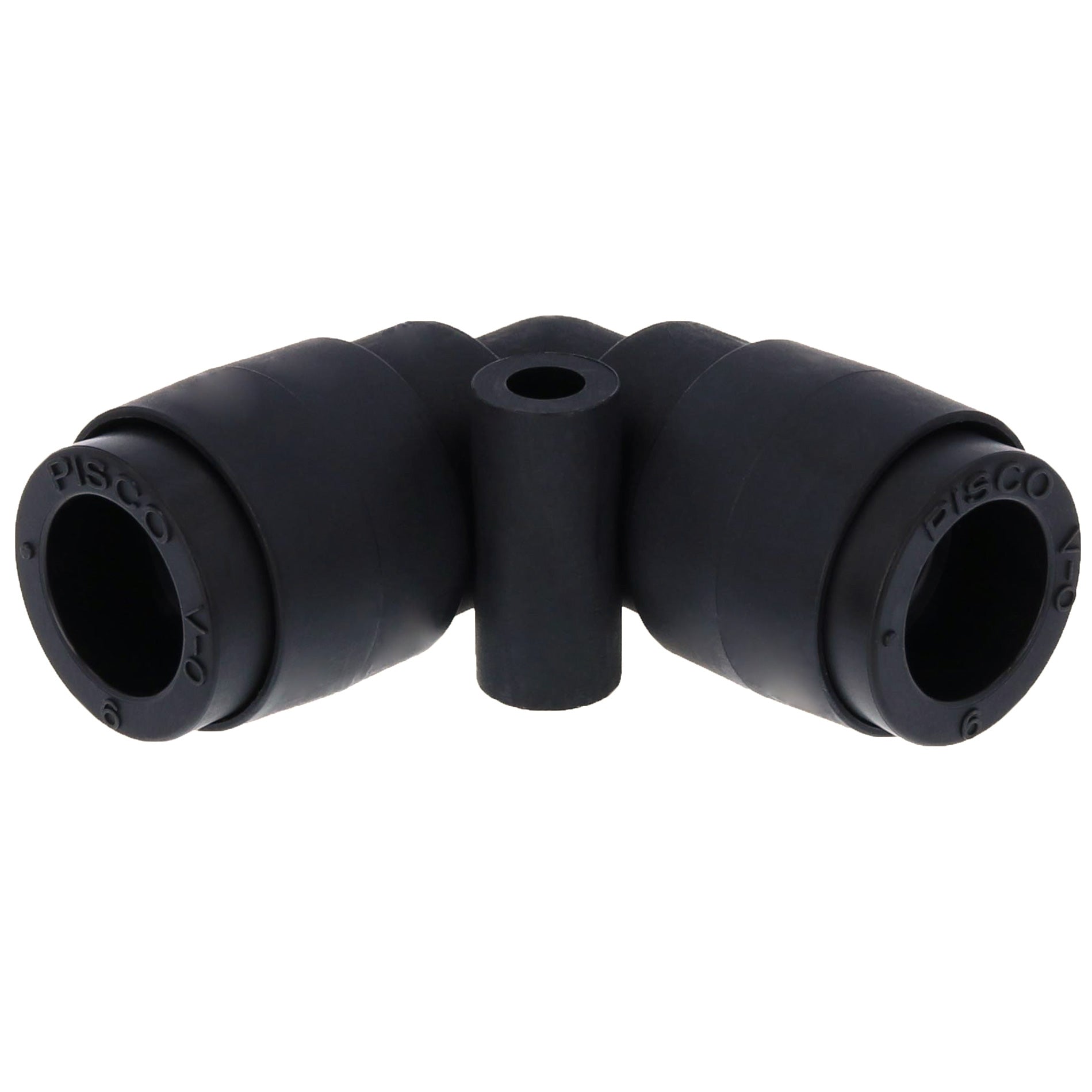

PISCO PV — Tube Fitting Spatter-Resistant Union Elbow, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Dimension P1 (Ømm) |
Fluid |
Dimension F (mm) |
Shape |
Orifice Dia. (Ømm) |
Dimension E (mm) |
Operating Temperature Range (℃) |
Dimension T (mm) |
Operating Vacuum Pressure (kPa) |
Tube O.D. (mm) |
Dimension C2 (mm) |
Dimension C1 (mm) |
Dimension P2 (Ømm) |
Mass (g) |
Type |
Max. Operating Pressure (MPa) |
Material (Resin Part) |
| PV10V-0 |
17.5 |
Air, Water (conditional) |
|
Union Elbow |
8.3 |
|
0 ~ 60 (no freezing) |
18.2 |
-100.0 |
10X12 |
19.5 |
|
19.0 |
19.0 |
|
0.9 |
|
| PV12V-0 |
|
Air, Water (conditional) |
14.0 |
|
10.0 |
|
|
21.7 |
-100.0 |
|
23.4 |
28.4 |
22.2 |
28.0 |
Spatter-Resistant Type |
0.9 |
Flame-Retardant Resin |
| PV4V-0 |
|
Air, Water (conditional) |
6.5 |
Union Elbow |
2.8 |
|
|
10.4 |
|
4X6 |
15.0 |
|
12.0 |
6.5 |
Spatter-Resistant Type |
0.9 |
Flame-Retardant Resin |
| PV6V-0 |
|
Air, Water (conditional) |
8.0 |
|
5.0 |
|
0 ~ 60 (no freezing) |
|
|
6X8 |
16.5 |
22.1 |
14.0 |
8.6 |
Spatter-Resistant Type |
0.9 |
Flame-Retardant Resin |
| PV8V-0 |
15.0 |
|
10.0 |
Union Elbow |
7.2 |
27.6 |
|
|
|
|
17.4 |
23.3 |
16.0 |
13.0 |
Spatter-Resistant Type |
0.9 |
Flame-Retardant Resin |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About PISCO
PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.
