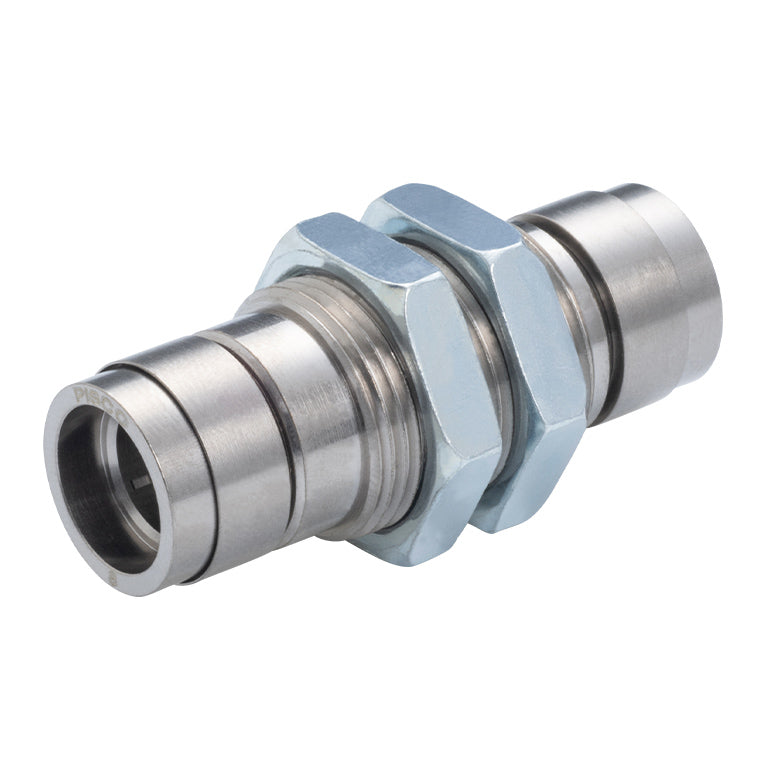

PISCO KM — Tube Fitting Brass Bulkhead Union (with Cover), genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Orifice Dia. (Ømm) |
Material (Rubber) |
Cover |
Dimension B (mm) |
Dimension P1 (Ømm) |
Fluid |
Dimension P2 (Ømm) |
Shape |
Operating Temperature Range (℃) |
Dimension E (mm) |
Max. Operating Pressure (MPa) |
Tube O.D. (mm) |
Dimension a (mm) |
Type |
Width Across Flats H (mm) |
Mass (g) |
Operating Vacuum Pressure (kPa) |
Dimension C1 (mm) |
Dimension C2 (mm) |
| KM10 |
8.0 |
|
Cover |
|
18.5 |
|
|
Bulkhead Union |
0 ~ 100 (no freezing) |
|
1.0 |
10X12 |
22.0 |
|
24.0 |
|
-100.0 |
23.2 |
19.5 |
| KM10-F |
|
FKM |
Cover |
49.9 |
18.5 |
|
18.6 |
|
0 ~ 120 (no freezing) |
16.3 |
1.0 |
10X12 |
|
Spatter-Resistant Type |
|
|
-100.0 |
23.2 |
|
| KM12 |
9.0 |
HNBR |
|
53.6 |
21.7 |
|
|
Bulkhead Union |
0 ~ 100 (no freezing) |
|
|
12X14 |
25.5 |
|
|
123.0 |
-100.0 |
26.3 |
23.0 |
| KM12-F |
|
FKM |
Cover |
53.6 |
|
Air, Water (conditional) Heat Transfer Oil (conditional) |
21.6 |
Bulkhead Union |
|
|
|
12X14 |
|
Spatter-Resistant Type |
27.0 |
123.0 |
-100.0 |
26.3 |
|
| KM4 |
2.5 |
|
|
36.4 |
|
Air, Water (conditional) Heat Transfer Oil (conditional) |
|
Bulkhead Union |
|
13.7 |
1.0 |
|
12.0 |
|
14.0 |
23.0 |
-100.0 |
17.6 |
15.0 |
| KM4-F |
2.5 |
FKM |
|
|
10.5 |
Air, Water (conditional) Heat Transfer Oil (conditional) |
|
Bulkhead Union |
|
13.7 |
1.0 |
4X6 |
|
Spatter-Resistant Type |
14.0 |
|
-100.0 |
17.6 |
|
| KM6 |
4.0 |
HNBR |
Cover |
|
|
Air, Water (conditional) Heat Transfer Oil (conditional) |
|
|
0 ~ 100 (no freezing) |
15.7 |
1.0 |
6X8 |
14.0 |
Spatter-Resistant Type |
17.0 |
|
|
19.5 |
|
| KM6-F |
|
FKM |
Cover |
40.4 |
12.5 |
Air, Water (conditional) Heat Transfer Oil (conditional) |
|
Bulkhead Union |
|
15.7 |
|
6X8 |
14.0 |
|
|
33.0 |
-100.0 |
19.5 |
|
| KM8 |
|
|
|
42.9 |
14.5 |
Air, Water (conditional) Heat Transfer Oil (conditional) |
14.4 |
Bulkhead Union |
0 ~ 100 (no freezing) |
15.2 |
|
|
17.0 |
Spatter-Resistant Type |
19.0 |
|
-100.0 |
20.2 |
|
| KM8-F |
6.0 |
FKM |
Cover |
42.9 |
|
|
|
|
0 ~ 120 (no freezing) |
15.2 |
1.0 |
8X10 |
17.0 |
Spatter-Resistant Type |
19.0 |
|
|
20.2 |
|
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
