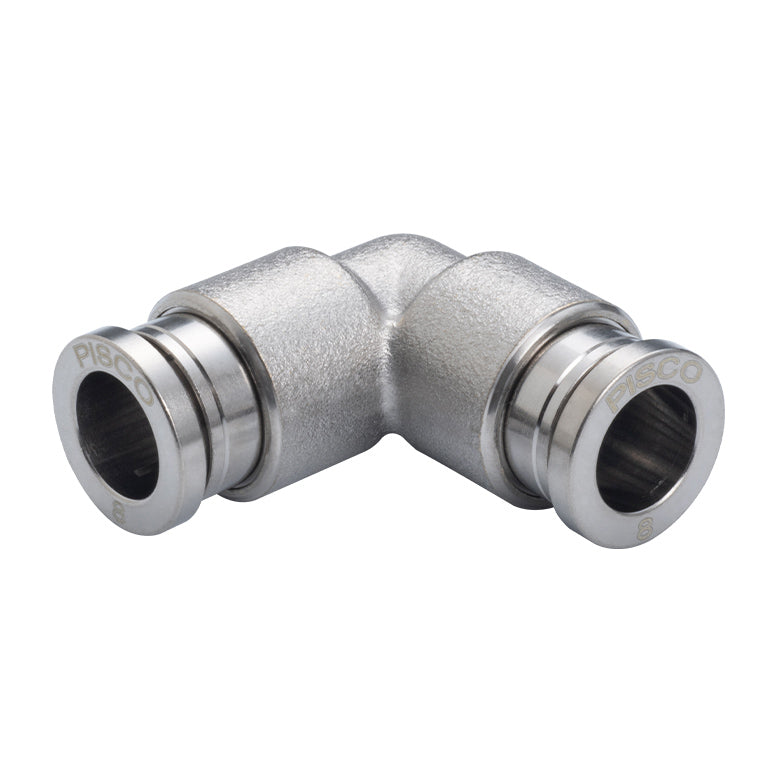

PISCO KV — Tube Fitting Brass Union Elbow (without Cover), genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Dimension E (mm) |
Dimension C (mm) |
Max. Operating Pressure (MPa) |
Material (Rubber) |
Mass (g) |
Cover |
Shape |
Operating Vacuum Pressure (kPa) |
Operating Temperature Range (℃) |
Tube O.D. (mm) |
Type |
Orifice Dia. (Ømm) |
Fluid |
Dimension P (Ømm) |
| KV10-1 |
26.1 |
20.0 |
1.0 |
HNBR |
48.0 |
without Cover |
Union Elbow |
-100.0 |
|
10.0 |
|
8.0 |
Air, Water (conditional) Heat Transfer Oil (conditional) |
18.5 |
| KV10-1-F |
26.1 |
20.0 |
1.0 |
FKM |
48.0 |
without Cover |
Union Elbow |
-100.0 |
|
10.0 |
Spatter-Resistant Type |
|
Air, Water (conditional) Heat Transfer Oil (conditional) |
18.5 |
| KV12-1 |
29.7 |
22.6 |
1.0 |
|
79.0 |
without Cover |
Union Elbow |
-100.0 |
0 ~ 100 (no freezing) |
12.0 |
Spatter-Resistant Type |
9.0 |
Air, Water (conditional) Heat Transfer Oil (conditional) |
|
| KV12-1-F |
29.7 |
|
1.0 |
FKM |
79.0 |
without Cover |
Union Elbow |
-100.0 |
0 ~ 120 (no freezing) |
12.0 |
|
9.0 |
Air, Water (conditional) Heat Transfer Oil (conditional) |
21.5 |
| KV4-1 |
17.6 |
|
1.0 |
HNBR |
13.0 |
without Cover |
Union Elbow |
-100.0 |
0 ~ 100 (no freezing) |
4.0 |
Spatter-Resistant Type |
|
Air, Water (conditional) Heat Transfer Oil (conditional) |
10.5 |
| KV4-1-F |
17.6 |
14.5 |
1.0 |
FKM |
|
without Cover |
|
-100.0 |
0 ~ 120 (no freezing) |
4.0 |
Spatter-Resistant Type |
2.5 |
Air, Water (conditional) Heat Transfer Oil (conditional) |
10.5 |
| KV6-1 |
20.2 |
16.6 |
1.0 |
HNBR |
19.0 |
without Cover |
Union Elbow |
|
0 ~ 100 (no freezing) |
6.0 |
|
4.0 |
Air, Water (conditional) Heat Transfer Oil (conditional) |
12.5 |
| KV6-1-F |
20.2 |
|
1.0 |
FKM |
19.0 |
without Cover |
Union Elbow |
-100.0 |
|
6.0 |
Spatter-Resistant Type |
4.0 |
Air, Water (conditional) Heat Transfer Oil (conditional) |
12.5 |
| KV8-1 |
22.3 |
17.7 |
1.0 |
|
25.0 |
without Cover |
Union Elbow |
-100.0 |
0 ~ 100 (no freezing) |
8.0 |
Spatter-Resistant Type |
6.0 |
|
14.5 |
| KV8-1-F |
22.3 |
17.7 |
1.0 |
FKM |
|
without Cover |
Union Elbow |
-100.0 |
0 ~ 120 (no freezing) |
|
Spatter-Resistant Type |
6.0 |
Air, Water (conditional) Heat Transfer Oil (conditional) |
14.5 |
