Description

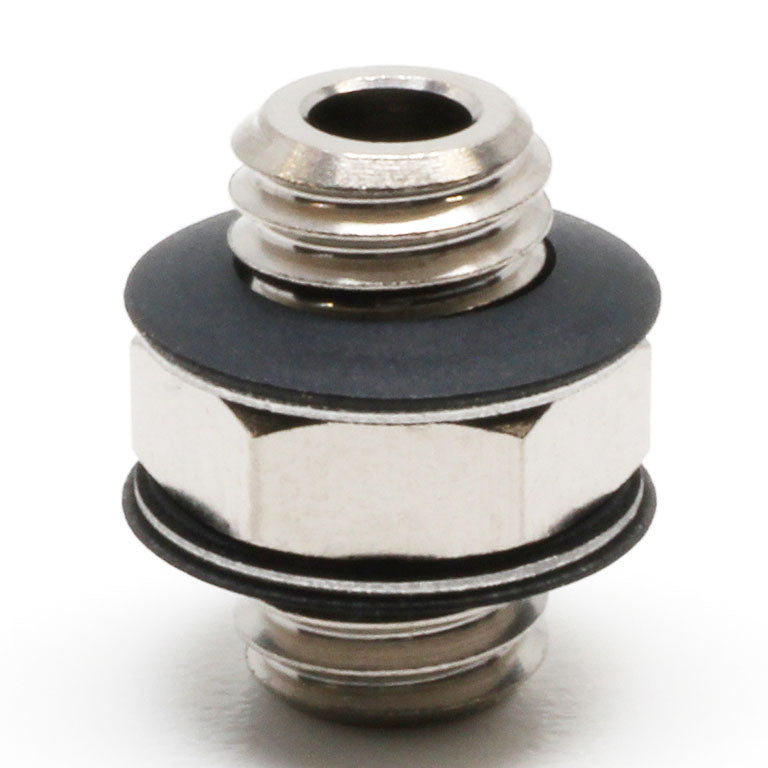

PISCO LN — Minimal Fitting Nipple, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Material (Gasket) |
Cross-Sectional Area (㎟) |
Packaging |
Dimension g (mm) |
Mass (g) |
Operating Temperature Range (℃) |
Dimension a (mm) |
Connection Thread Type |
Operating Vacuum Pressure (kPa) |
Material (Metal Hood)/Finish |
Dimension B (mm) |
Fluid |
Type |
Width Across Flats H (mm) |
Connection Thread |
Shape |
Max. Operating Pressure (MPa) |
| LN-M3-M3 |
POM SUS304, NBR(LC, LCN, LN, LR, LLC) |
|
Standard Packaging |
|
0.6 |
0 ~ 50 (no freezing) |
2.5 |
M |
|
|
8.0 |
Air |
|
5.5 |
M3X0.5 |
Nipple |
0.5; 0.4 with Vacuum Tube (UD) |
| LN-M3-M3C |
POM SUS304, NBR(LC, LCN, LN, LR, LLC) |
1.0 |
Clean Room Packaging |
|
|
0 ~ 50 (no freezing) |
|
M |
-100.0 |
Brass (Electroless Nickel Plating) |
8.0 |
Air |
|
5.5 |
M3X0.5 |
Nipple |
|
| LN-M5-M5C |
|
|
Clean Room Packaging |
0.3 |
|
0 ~ 50 (no freezing) |
3.2 |
M |
-100.0 |
Brass (Electroless Nickel Plating) |
|
Air |
Barb Type |
7.0 |
M5X0.8 |
|
0.5; 0.4 with Vacuum Tube (UD) |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
