Description

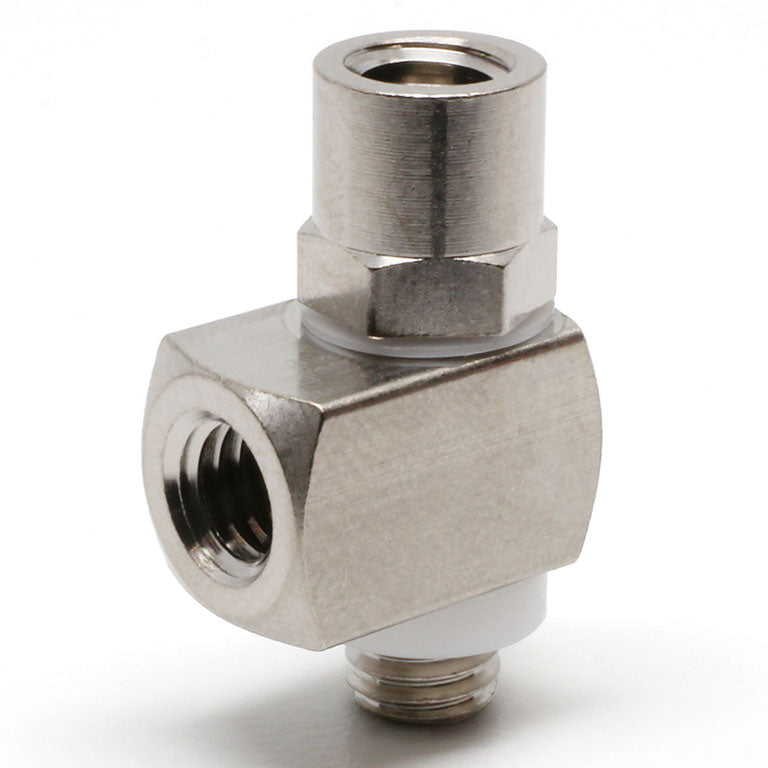

PISCO LD-FM5-M5 — Minimal Fitting Universal Branch Tee, genuine PISCO product.
Overview
PISCO push-to-connect fittings, barb fittings, unions, elbows, tees, reducers and plugs for compressed air and vacuum lines.
Key Features
- Genuine PISCO fitting
- Select by tube OD and connection thread (R, Rc, G, M, UNF)
- Fast one-touch tube connection
Specifications
| Part No. |
Cross-Sectional Area (㎟) |
Material (Gasket) |
Shape |
Connection Thread |
Mass (g) |
Type |
Operating Temperature Range (℃) |
Connection Thread Type |
Packaging |
Material (Metal Hood)/Finish |
Max. Operating Pressure (MPa) |
Operating Vacuum Pressure (kPa) |
| LD-FM5-M5 |
1.5 |
POM SUS304, NBR(LC, LCN, LN, LR, LLC) |
Universal Branch Tee |
M5X0.8 |
7.2 |
Barb Type |
0 ~ 50 (no freezing) |
M |
Standard Packaging |
Free-Cutting Steel (Electroless Nickel Plating) or Machined Stainless |
0.5; 0.4 with Vacuum Tube (UD) |
-100.0 |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About PISCO
PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.
