PISCO speed controllers, check valves, hand valves, silencers and flow control components for pneumatic circuits.
| Part No. |
Thread Size R |
Operating Pressure Range (MPa) |
Operating Temperature Range (℃) |
Exhaust Method |
Effective Area (mm2) (Cv) |
Min. Operating Differential Pressure (MPa) |
Tube O.D. D (Ømm) |
Fluid |
Connection Dia. (Tube) (Ømm) |
Type |
| EQ01-C04P01C08 |
Out Side: R1 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
|
8.0 |
0.05 |
In Side: 4 |
Air |
|
Standard Type |
| EQ01-C04P01E |
Out Side: R1 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
|
8.0 |
0.05 |
In Side: 4 |
Air |
|
Standard Type |
| EQ01-C06P01E |
Out Side: R1 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
|
8.0 |
0.05 |
In Side: 6 |
Air |
|
Standard Type |
| EQ01-P01C06C08 |
In Side: R1 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
|
8.0 |
0.05 |
Out Side: 6 |
Air |
|
Standard Type |
| EQ02-C06P01E |
Out Side: R1 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
|
16.0 |
0.05 |
In Side: 6 |
Air |
|
Standard Type |
| EQ02-C06P02C10 |
Out Side: R1 / 4 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
|
16.0 |
0.05 |
In Side: 6 |
Air |
10.0 |
Standard Type |
| EQ02-C06P02E |
Out Side: R1 / 4 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Exhaust Orifice Type |
16.0 |
0.05 |
In Side: 6 |
Air |
Exhaust Orifice Type |
Standard Type |
| EQ02-C08P01C10 |
Out Side: R1 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
16.0 |
0.05 |
In Side: 8 |
Air |
10.0 |
Standard Type |
| EQ02-C08P01E |
Out Side: R1 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Exhaust Orifice Type |
16.0 |
0.05 |
In Side: 8 |
Air |
Exhaust Orifice Type |
Standard Type |

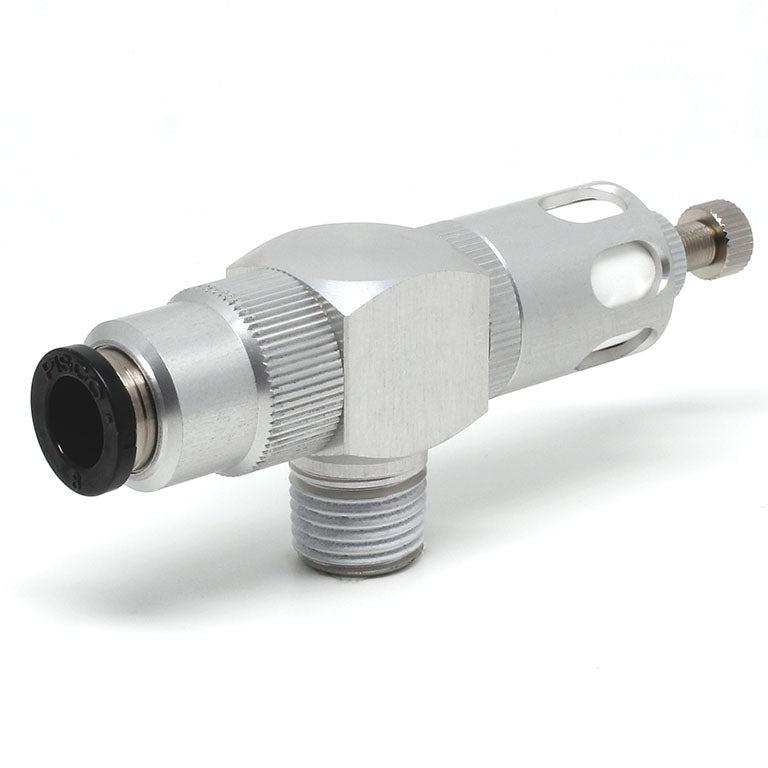

| EQ02-C08P02E |
Out Side: R1 / 4 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Exhaust Orifice Type |
16.0 |
0.05 |
In Side: 8 |
Air |
Exhaust Orifice Type |
Standard Type |
| EQ02-P01C06C10 |
In Side: R1 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
16.0 |
0.05 |
Out Side: 6 |
Air |
10.0 |
Standard Type |
| EQ02-P01C08C10 |
In Side: R1 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
16.0 |
0.05 |
Out Side: 8 |
Air |
10.0 |
Standard Type |
| EQ02-P02C06C10 |
In Side: R1 / 4 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
16.0 |
0.05 |
Out Side: 6 |
Air |
10.0 |
Standard Type |
| EQ02-P02C08C10 |
In Side: R1 / 4 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
16.0 |
0.05 |
Out Side: 8 |
Air |
10.0 |
Standard Type |
| EQ03-C10P02C12 |
Out Side: R1 / 4 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
30.0 |
0.05 |
In Side: 10 |
Air |
12.0 |
Standard Type |
| EQ03-C10P02E |
Out Side: R1 / 4 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Exhaust Orifice Type |
30.0 |
0.05 |
In Side: 10 |
Air |
Exhaust Orifice Type |
Standard Type |
| EQ03-C10P03C12 |
Out Side: R3 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
30.0 |
0.05 |
In Side: 10 |
Air |
12.0 |
Standard Type |
| EQ03-C10P03E |
Out Side: R3 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Exhaust Orifice Type |
30.0 |
0.05 |
In Side: 10 |
Air |
Exhaust Orifice Type |
Standard Type |
| EQ03-C10P04C12 |
Out Side: R1 / 2 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
30.0 |
0.05 |
In Side: 10 |
Air |
12.0 |
Standard Type |
| EQ03-C10P04E |
Out Side: R1 / 2 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Exhaust Orifice Type |
30.0 |
0.05 |
In Side: 10 |
Air |
Exhaust Orifice Type |
Standard Type |
| EQ03-C12P02C12 |
Out Side: R1 / 4 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
30.0 |
0.05 |
In Side: 12 |
Air |
12.0 |
Standard Type |
| EQ03-C12P02E |
Out Side: R1 / 4 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Exhaust Orifice Type |
30.0 |
0.05 |
In Side: 12 |
Air |
Exhaust Orifice Type |
Standard Type |
| EQ03-C12P03C12 |
Out Side: R3 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
30.0 |
0.05 |
In Side: 12 |
Air |
12.0 |
Standard Type |
| EQ03-C12P03E |
Out Side: R3 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Exhaust Orifice Type |
30.0 |
0.05 |
In Side: 12 |
Air |
Exhaust Orifice Type |
Standard Type |
| EQ03-C12P04C12 |
Out Side: R1 / 2 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
30.0 |
0.05 |
In Side: 12 |
Air |
12.0 |
Standard Type |
| EQ03-C12P04E |
Out Side: R1 / 2 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Exhaust Orifice Type |
30.0 |
0.05 |
In Side: 12 |
Air |
Exhaust Orifice Type |
Standard Type |
| EQ03-P03C10C12 |
In Side: R3 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
30.0 |
0.05 |
Out Side: 10 |
Air |
12.0 |
Standard Type |
| EQ03-P03C12C12 |
In Side: R3 / 8 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
30.0 |
0.05 |
Out Side: 12 |
Air |
12.0 |
Standard Type |
| EQ03-P04C10C12 |
In Side: R1 / 2 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
30.0 |
0.05 |
Out Side: 10 |
Air |
12.0 |
Standard Type |
| EQ03-P04C12C12 |
In Side: R1 / 2 |
0.1 ~ 0.7 |
5 ~ 60 (no freezing in piping) |
Push-to-Connect Fitting Type |
30.0 |
0.05 |
Out Side: 12 |
Air |
12.0 |
Standard Type |
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
