Description

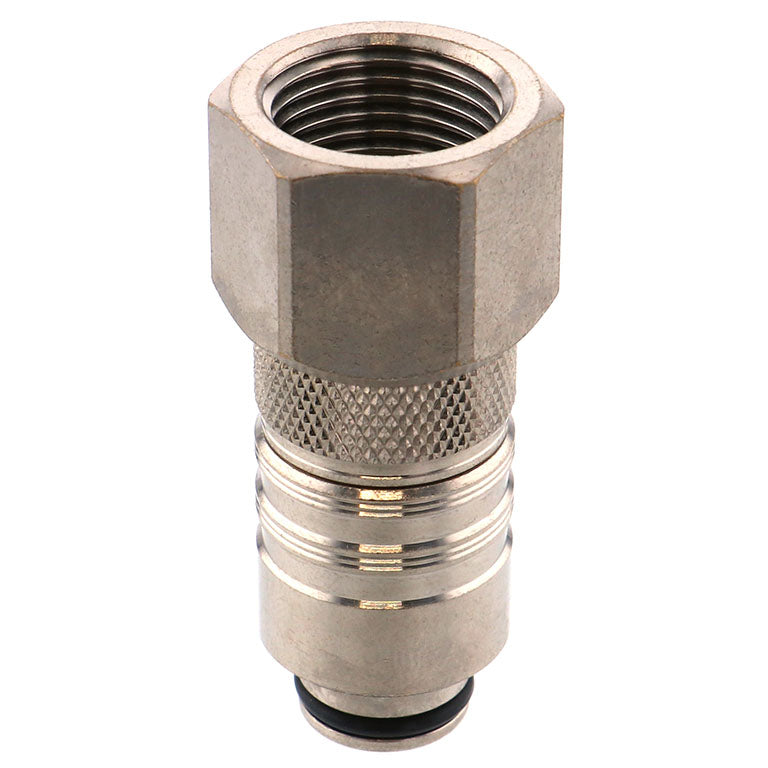

PISCO AS — Mold Temperature Control Fitting Pedestal Valve Built-in Type (Plug Only), genuine PISCO product.
Overview
PISCO speed controllers, check valves, hand valves, silencers and flow control components for pneumatic circuits.
Key Features
- Genuine PISCO flow control component
- Select by tube OD, thread and flow direction
- Compact design
Specifications
| Part No. |
Dimension a (mm) |
Mass (g) |
Operating Vacuum Pressure (kPa) |
Classification |
Dimension P (Ømm) |
Dimension D (Ømm) |
Dimension E (mm) |
Connection Thread |
Tube O.D. (mm) |
Width Across Flats H (mm) |
Shape |
Connection Thread Type |
Series |
Dimension B (mm) |
Dimension C (mm) |
Orifice Dia. (Ømm) |
Fluid |
Max. Operating Pressure (MPa) |
| ASC10-01FP |
7.0 |
54.0 |
-100 (Air) |
Plug |
21.0 |
|
|
43838.0 |
|
19.0 |
|
Rc |
|
40.6 |
|
|
Air, Water (Clean Water) (conditional) Heat Transfer Oil (conditional) |
0.9 |
| ASC10-02FP |
9.5 |
63.0 |
|
|
21.0 |
|
|
43834.0 |
|
19.0 |
|
Rc |
10 Series |
47.6 |
|
|
Air, Water (Clean Water) (conditional) Heat Transfer Oil (conditional) |
0.9 |
| ASC10-03FP |
|
|
-100 (Air) |
|
23.5 |
|
|
43898.0 |
|
21.0 |
Straight |
|
10 Series |
49.6 |
|
8.1 |
Air, Water (Clean Water) (conditional) Heat Transfer Oil (conditional) |
0.9 |
| ASC10-12P |
|
55.0 |
-100 (Air) |
Plug |
|
|
|
|
|
|
Straight |
|
10 Series |
52.0 |
23.3 |
8.1 |
Air, Water (Clean Water) (conditional) Heat Transfer Oil (conditional) |
0.9 |
| ASC10-6P |
|
48.0 |
-100 (Air) |
Plug |
|
|
|
|
6.0 |
|
|
|
10 Series |
44.2 |
17.0 |
5.0 |
Air, Water (Clean Water) (conditional) Heat Transfer Oil (conditional) |
0.9 |
| ASC10-8P |
|
52.0 |
-100 (Air) |
Plug |
|
|
|
|
8.0 |
|
Straight |
|
10 Series |
48.0 |
|
7.0 |
Air, Water (Clean Water) (conditional) Heat Transfer Oil (conditional) |
0.9 |
| ASC10-ID06BP |
|
50.0 |
-100.0 |
Plug |
|
8.0 |
|
|
|
|
Straight |
|
10 Series |
|
|
4.5 |
Air, Water (Clean Water) (conditional) Heat Transfer Oil (conditional) |
0.9 |
| ASC10-ID09BP |
|
57.0 |
-100.0 |
Plug |
|
12.0 |
|
|
|
|
Straight |
|
10 Series |
|
|
6.0 |
Air, Water (Clean Water) (conditional) Heat Transfer Oil (conditional) |
0.9 |
| ASL10-10P |
|
84.0 |
|
Plug |
|
|
27.9 |
|
10.0 |
|
|
|
10 Series |
43.1 |
20.7 |
7.5 |
Air, Water (Clean Water) (conditional) Heat Transfer Oil (conditional) |
0.9 |
| ASL10-12P |
|
111.0 |
-100 (Air) |
Plug |
|
|
31.0 |
|
12.0 |
|
Elbow |
|
10 Series |
|
|
8.1 |
Air, Water (Clean Water) (conditional) Heat Transfer Oil (conditional) |
0.9 |
| ASL10-6P |
|
60.0 |
-100 (Air) |
Plug |
|
|
21.7 |
|
|
|
|
|
10 Series |
40.5 |
17.0 |
4.0 |
Air, Water (Clean Water) (conditional) Heat Transfer Oil (conditional) |
0.9 |
| ASL10-8P |
|
68.0 |
-100 (Air) |
Plug |
|
|
23.9 |
|
8.0 |
|
Elbow |
|
10 Series |
41.5 |
18.2 |
6.0 |
|
0.9 |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About PISCO
PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.
Ordering & Shipping
- Genuine PISCO product sourced through Korean distribution
- Lead time varies by model; most items ship within 2-3 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
