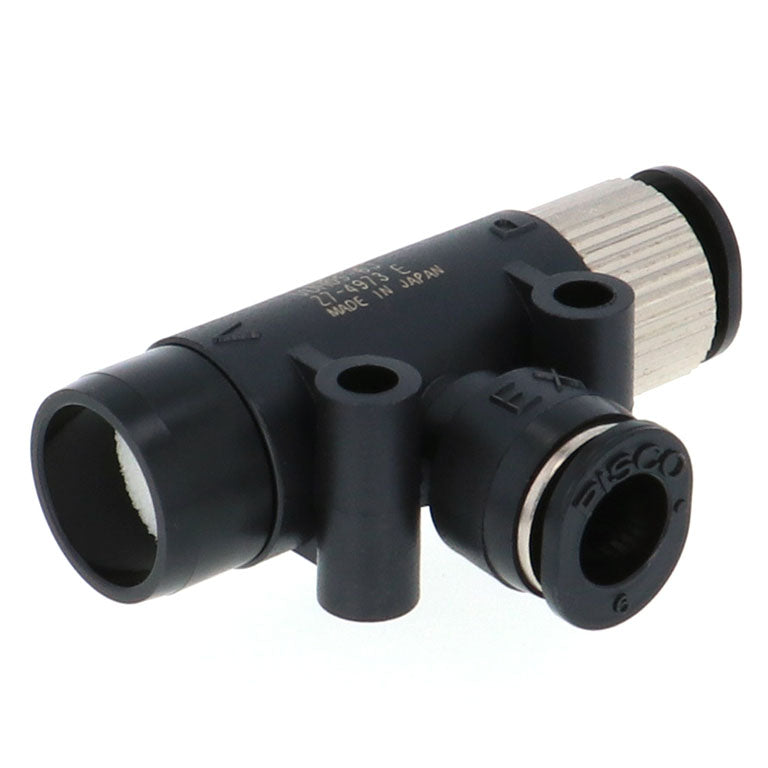

PISCO Vacuum Generator Adapter Centralized Exhaust (VU)

Description

PISCO VU — Vacuum Generator Adapter Centralized Exhaust (VU), genuine PISCO product.

Overview

PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.

Key Features

  • Genuine PISCO vacuum component
  • Select by pad diameter, material and mounting
  • Wide range of buffers and fittings

Specifications

Part No. Performance Operating Pressure Range Standard Supply Pressure (MPa) Additional Function Fluid Shape Material (Metal Hood)/Finish Vacuum Level (kPa) Suction Flow (L/min) Operating Temperature Range Air Supply Port Size P Nozzle Dia.
VUE07-4J Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa 0.35 Centralized Exhaust Spec Air Tubular Standard Spec -90 ~ 92 10 ~ 10.5 0 ~ 60 ℃ Ø4 0.7
VUE07-4J-S3 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa 0.35 Centralized Exhaust Spec Air Tubular Copper-Free Spec -90 ~ 92 10 ~ 10.5 0 ~ 60 ℃ Ø4 0.7
VUE07-6J Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa 0.35 Centralized Exhaust Spec Air Tubular Standard Spec -90 ~ 92 10 ~ 10.5 0 ~ 60 ℃ Ø6 0.7
VUE07-6J-S3 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa 0.35 Centralized Exhaust Spec Air Tubular Copper-Free Spec -90 ~ 92 10 ~ 10.5 0 ~ 60 ℃ Ø6 0.7
VUH05-4J High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Standard Spec -90.0 7.0 0 ~ 60 ℃ Ø4 0.5
VUH05-4J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Copper-Free Spec -90.0 7.0 0 ~ 60 ℃ Ø4 0.5
VUH05-6J High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Standard Spec -90.0 7.0 0 ~ 60 ℃ Ø6 0.5
VUH05-6J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Copper-Free Spec -90.0 7.0 0 ~ 60 ℃ Ø6 0.5
VUH07-4J High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Standard Spec -92 ~ 93 12.5 ~ 13 0 ~ 60 ℃ Ø4 0.7
VUH07-4J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Copper-Free Spec -92 ~ 93 12.5 ~ 13 0 ~ 60 ℃ Ø4 0.7
VUH07-6J High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Standard Spec -92 ~ 93 12.5 ~ 13 0 ~ 60 ℃ Ø6 0.7
VUH07-6J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Copper-Free Spec -92 ~ 93 12.5 ~ 13 0 ~ 60 ℃ Ø6 0.7
VUL05-4J High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Standard Spec -66.0 12.0 0 ~ 60 ℃ Ø4 0.5
VUL05-4J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Copper-Free Spec -66.0 12.0 0 ~ 60 ℃ Ø4 0.5
VUL05-6J High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Standard Spec -66.0 12.0 0 ~ 60 ℃ Ø6 0.5
VUL05-6J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Copper-Free Spec -66.0 12.0 0 ~ 60 ℃ Ø6 0.5
VUL07-4J High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Standard Spec -66.0 22 ~ 26 0 ~ 60 ℃ Ø4 0.7
VUL07-4J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Copper-Free Spec -66.0 22 ~ 26 0 ~ 60 ℃ Ø4 0.7
VUL07-6J High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Standard Spec -66.0 22 ~ 26 0 ~ 60 ℃ Ø6 0.7
VUL07-6J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa 0.5 Centralized Exhaust Spec Air Tubular Copper-Free Spec -66.0 22 ~ 26 0 ~ 60 ℃ Ø6 0.7

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
