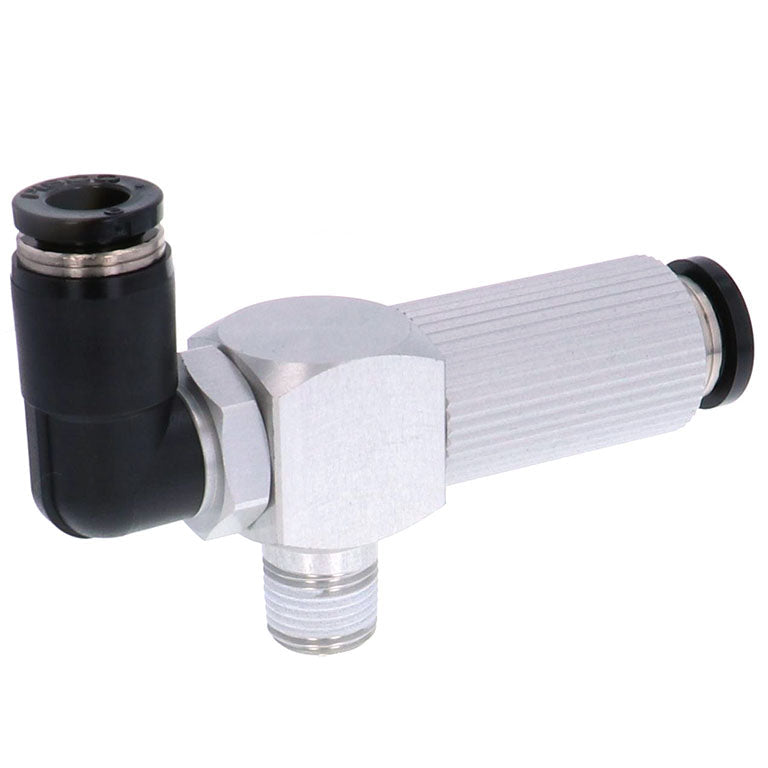

Name: PISCO Vacuum Generator Air Supply Port Elbow Centralized Exhaust
Brand: PISCO
SKU: VCE07-016LJ
Price: 33.07 USD

PISCO Vacuum Generator Air Supply Port Elbow Centralized Exhaust

VendorPISCO

Description

PISCO VC — Vacuum Generator Air Supply Port Elbow Centralized Exhaust, genuine PISCO product.

Overview

PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.

Key Features

Genuine PISCO vacuum component
Select by pad diameter, material and mounting
Wide range of buffers and fittings

Specifications

Part No.	Operating Temperature Range	Suction Flow (L/min)	Fluid	Performance	Operating Pressure Range	Additional Function	Air Supply Port Size P	Material (Metal Hood)/Finish	Vacuum Level (kPa)	Shape	Standard Supply Pressure (MPa)	Nozzle Dia.	Vacuum Port Size V
VCE07-016LJ	0 ~ 60 ℃	10 ~ 10.5	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø6	Standard Spec	-90 ~ 92	Vacuum Pad Direct Mount		0.7	R1 / 8
VCE07-016LJ-S3	0 ~ 60 ℃	10 ~ 10.5	Air		0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø6	Copper-Free Spec	-90 ~ 92	Vacuum Pad Direct Mount	0.35	0.7	R1 / 8
VCE07-018LJ	0 ~ 60 ℃	10 ~ 10.5	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Standard Spec	-90 ~ 92	Vacuum Pad Direct Mount		0.7	R1 / 8
VCE07-018LJ-S3	0 ~ 60 ℃	10 ~ 10.5	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa		Ø8	Copper-Free Spec	-90 ~ 92	Vacuum Pad Direct Mount	0.35	0.7	R1 / 8
VCE10-016LJ	0 ~ 60 ℃	21.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)		Centralized Exhaust Spec	Ø6	Standard Spec	-92.0	Vacuum Pad Direct Mount	0.35	1.0	R1 / 8
VCE10-016LJ-S3	0 ~ 60 ℃	21.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø6	Copper-Free Spec		Vacuum Pad Direct Mount	0.35	1.0	R1 / 8
VCE10-018LJ	0 ~ 60 ℃	21.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec		Standard Spec	-92.0	Vacuum Pad Direct Mount	0.35	1.0	R1 / 8
VCE10-018LJ-S3	0 ~ 60 ℃		Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-92.0	Vacuum Pad Direct Mount	0.35	1.0	R1 / 8
VCE12-016LJ	0 ~ 60 ℃	27.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)		Centralized Exhaust Spec	Ø6	Standard Spec	-92.0	Vacuum Pad Direct Mount	0.35	1.2	R1 / 8
VCE12-016LJ-S3	0 ~ 60 ℃	27.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa		Ø6	Copper-Free Spec	-92.0	Vacuum Pad Direct Mount	0.35	1.2	R1 / 8
VCE12-018LJ	0 ~ 60 ℃	27.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Standard Spec	-92.0	Vacuum Pad Direct Mount		1.2	R1 / 8
VCE12-018LJ-S3	0 ~ 60 ℃	27.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-92.0	Vacuum Pad Direct Mount	0.35		R1 / 8
VCE15-0210LJ	0 ~ 60 ℃	42.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa		Ø10	Standard Spec	-92.0	Vacuum Pad Direct Mount	0.35	1.5	R1 / 4
VCE15-0210LJ-S3	0 ~ 60 ℃	42.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Copper-Free Spec	-92.0	Vacuum Pad Direct Mount		1.5	R1 / 4
VCE15-028LJ	0 ~ 60 ℃	42.0	Air		0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Standard Spec	-92.0	Vacuum Pad Direct Mount	0.35	1.5	R1 / 4
VCE15-028LJ-S3	0 ~ 60 ℃	42.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec		Copper-Free Spec	-92.0	Vacuum Pad Direct Mount	0.35	1.5	R1 / 4
VCE15-0310LJ	0 ~ 60 ℃	42.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Standard Spec	-92.0		0.35	1.5	R3 / 8
VCE15-0310LJ-S3	0 ~ 60 ℃	42.0		Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Copper-Free Spec	-92.0	Vacuum Pad Direct Mount	0.35	1.5	R3 / 8
VCE15-038LJ	0 ~ 60 ℃	42.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Standard Spec	-92.0	Vacuum Pad Direct Mount	0.35		R3 / 8
VCE15-038LJ-S3	0 ~ 60 ℃	42.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec		Copper-Free Spec	-92.0	Vacuum Pad Direct Mount	0.35	1.5	R3 / 8
VCE20-0210LJ	0 ~ 60 ℃	82.0	Air		0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Standard Spec	-92.0	Vacuum Pad Direct Mount	0.35	2.0	R1 / 4
VCE20-0210LJ-S3	0 ~ 60 ℃	82.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa		Ø10	Copper-Free Spec	-92.0	Vacuum Pad Direct Mount	0.35	2.0	R1 / 4
VCE20-028LJ	0 ~ 60 ℃	82.0		Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Standard Spec	-92.0	Vacuum Pad Direct Mount	0.35	2.0	R1 / 4
VCE20-028LJ-S3	0 ~ 60 ℃	82.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-92.0	Vacuum Pad Direct Mount	0.35		R1 / 4
VCE20-0310LJ	0 ~ 60 ℃		Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Standard Spec	-92.0	Vacuum Pad Direct Mount	0.35	2.0	R3 / 8
VCE20-0310LJ-S3	0 ~ 60 ℃	82.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa		Ø10	Copper-Free Spec	-92.0	Vacuum Pad Direct Mount	0.35	2.0	R3 / 8
VCE20-038LJ	0 ~ 60 ℃	82.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Standard Spec	-92.0	Vacuum Pad Direct Mount	0.35	2.0
VCE20-038LJ-S3		82.0	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-92.0	Vacuum Pad Direct Mount	0.35	2.0	R3 / 8
VCH07-016LJ	0 ~ 60 ℃	12.5 ~ 13	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec		Standard Spec	-92 ~ 93	Vacuum Pad Direct Mount	0.5	0.7	R1 / 8
VCH07-016LJ-S3	0 ~ 60 ℃	12.5 ~ 13	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø6	Copper-Free Spec	-92 ~ 93	Vacuum Pad Direct Mount		0.7	R1 / 8
VCH07-018LJ	0 ~ 60 ℃		Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Standard Spec	-92 ~ 93	Vacuum Pad Direct Mount	0.5	0.7	R1 / 8
VCH07-018LJ-S3	0 ~ 60 ℃	12.5 ~ 13	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-92 ~ 93	Vacuum Pad Direct Mount		0.7	R1 / 8
VCH10-016LJ		28.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø6	Standard Spec	-93.0	Vacuum Pad Direct Mount	0.5	1.0	R1 / 8
VCH10-016LJ-S3	0 ~ 60 ℃	28.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø6	Copper-Free Spec	-93.0	Vacuum Pad Direct Mount	0.5	1.0
VCH10-018LJ	0 ~ 60 ℃	28.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Standard Spec		Vacuum Pad Direct Mount	0.5	1.0	R1 / 8
VCH10-018LJ-S3	0 ~ 60 ℃	28.0		High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-93.0	Vacuum Pad Direct Mount	0.5	1.0	R1 / 8
VCH12-016LJ	0 ~ 60 ℃	38.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø6	Standard Spec	-93.0	Vacuum Pad Direct Mount		1.2	R1 / 8
VCH12-016LJ-S3	0 ~ 60 ℃		Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø6	Copper-Free Spec	-93.0	Vacuum Pad Direct Mount	0.5	1.2	R1 / 8
VCH12-018LJ	0 ~ 60 ℃	38.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa		Ø8	Standard Spec	-93.0	Vacuum Pad Direct Mount	0.5	1.2	R1 / 8
VCH12-018LJ-S3	0 ~ 60 ℃	38.0		High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-93.0	Vacuum Pad Direct Mount	0.5	1.2	R1 / 8
VCH15-0210LJ	0 ~ 60 ℃	63.0	Air		0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Standard Spec	-93.0	Vacuum Pad Direct Mount	0.5	1.5	R1 / 4
VCH15-0210LJ-S3	0 ~ 60 ℃	63.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Copper-Free Spec		Vacuum Pad Direct Mount	0.5	1.5	R1 / 4
VCH15-028LJ	0 ~ 60 ℃	63.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Standard Spec	-93.0	Vacuum Pad Direct Mount	0.5	1.5
VCH15-028LJ-S3	0 ~ 60 ℃	63.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-93.0	Vacuum Pad Direct Mount	0.5		R1 / 4
VCH15-0310LJ	0 ~ 60 ℃		Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Standard Spec	-93.0	Vacuum Pad Direct Mount	0.5	1.5	R3 / 8
VCH15-0310LJ-S3	0 ~ 60 ℃	63.0		High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Copper-Free Spec	-93.0	Vacuum Pad Direct Mount	0.5	1.5	R3 / 8
VCH15-038LJ	0 ~ 60 ℃	63.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa		Ø8	Standard Spec	-93.0	Vacuum Pad Direct Mount	0.5	1.5	R3 / 8
VCH15-038LJ-S3	0 ~ 60 ℃	63.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-93.0	Vacuum Pad Direct Mount	0.5	1.5
VCH20-0210LJ	0 ~ 60 ℃	104.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa		Ø10	Standard Spec	-93.0	Vacuum Pad Direct Mount	0.5	2.0	R1 / 4
VCH20-0210LJ-S3	0 ~ 60 ℃	104.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa		Ø10	Copper-Free Spec	-93.0	Vacuum Pad Direct Mount	0.5	2.0	R1 / 4
VCH20-028LJ	0 ~ 60 ℃		Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Standard Spec	-93.0	Vacuum Pad Direct Mount	0.5	2.0	R1 / 4
VCH20-028LJ-S3	0 ~ 60 ℃	104.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-93.0	Vacuum Pad Direct Mount		2.0	R1 / 4
VCH20-0310LJ	0 ~ 60 ℃	104.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Standard Spec	-93.0	Vacuum Pad Direct Mount	0.5		R3 / 8
VCH20-0310LJ-S3	0 ~ 60 ℃	104.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Copper-Free Spec	-93.0	Vacuum Pad Direct Mount		2.0	R3 / 8
VCH20-038LJ	0 ~ 60 ℃	104.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec		Standard Spec	-93.0	Vacuum Pad Direct Mount	0.5	2.0	R3 / 8
VCH20-038LJ-S3	0 ~ 60 ℃	104.0	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec		Vacuum Pad Direct Mount	0.5	2.0	R3 / 8
VCL07-016LJ	0 ~ 60 ℃	22 ~ 26	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø6	Standard Spec	-66.0	Vacuum Pad Direct Mount	0.5	0.7
VCL07-016LJ-S3	0 ~ 60 ℃	22 ~ 26	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø6	Copper-Free Spec	-66.0	Vacuum Pad Direct Mount	0.5	0.7
VCL07-018LJ	0 ~ 60 ℃		Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Standard Spec	-66.0	Vacuum Pad Direct Mount	0.5	0.7	R1 / 8
VCL07-018LJ-S3	0 ~ 60 ℃	22 ~ 26		High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-66.0	Vacuum Pad Direct Mount	0.5	0.7	R1 / 8
VCL10-016LJ	0 ~ 60 ℃	42.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø6	Standard Spec	-66.0		0.5	1.0	R1 / 8
VCL10-016LJ-S3	0 ~ 60 ℃	42.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø6	Copper-Free Spec		Vacuum Pad Direct Mount	0.5	1.0	R1 / 8
VCL10-018LJ	0 ~ 60 ℃	42.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Standard Spec	-66.0	Vacuum Pad Direct Mount	0.5		R1 / 8
VCL10-018LJ-S3	0 ~ 60 ℃	42.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-66.0	Vacuum Pad Direct Mount	0.5	1.0
VCL15-0210LJ		95.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Standard Spec	-66.0	Vacuum Pad Direct Mount	0.5	1.5	R1 / 4
VCL15-0210LJ-S3	0 ~ 60 ℃	95.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec		Copper-Free Spec	-66.0	Vacuum Pad Direct Mount	0.5	1.5	R1 / 4
VCL15-028LJ	0 ~ 60 ℃	95.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8		-66.0	Vacuum Pad Direct Mount	0.5	1.5	R1 / 4
VCL15-028LJ-S3	0 ~ 60 ℃		Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-66.0	Vacuum Pad Direct Mount	0.5	1.5	R1 / 4
VCL15-0310LJ	0 ~ 60 ℃	95.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Standard Spec		Vacuum Pad Direct Mount	0.5	1.5	R3 / 8
VCL15-0310LJ-S3		95.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Copper-Free Spec	-66.0	Vacuum Pad Direct Mount	0.5	1.5	R3 / 8
VCL15-038LJ	0 ~ 60 ℃	95.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec		Standard Spec	-66.0	Vacuum Pad Direct Mount	0.5	1.5	R3 / 8
VCL15-038LJ-S3	0 ~ 60 ℃	95.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-66.0	Vacuum Pad Direct Mount	0.5	1.5
VCL20-0210LJ	0 ~ 60 ℃	174.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)		Centralized Exhaust Spec	Ø10	Standard Spec	-66.0	Vacuum Pad Direct Mount	0.5	2.0	R1 / 4
VCL20-0210LJ-S3		174.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Copper-Free Spec	-66.0	Vacuum Pad Direct Mount	0.5	2.0	R1 / 4
VCL20-028LJ	0 ~ 60 ℃	174.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Standard Spec		Vacuum Pad Direct Mount	0.5	2.0	R1 / 4
VCL20-028LJ-S3	0 ~ 60 ℃	174.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec	-66.0		0.5	2.0	R1 / 4
VCL20-0310LJ	0 ~ 60 ℃		Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Standard Spec	-66.0	Vacuum Pad Direct Mount	0.5	2.0	R3 / 8
VCL20-0310LJ-S3	0 ~ 60 ℃	174.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø10	Copper-Free Spec	-66.0	Vacuum Pad Direct Mount	0.5		R3 / 8
VCL20-038LJ	0 ~ 60 ℃	174.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa		Ø8	Standard Spec	-66.0	Vacuum Pad Direct Mount	0.5	2.0	R3 / 8
VCL20-038LJ-S3	0 ~ 60 ℃	174.0	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.15 ~ 0.7MPa	Centralized Exhaust Spec	Ø8	Copper-Free Spec		Vacuum Pad Direct Mount	0.5	2.0	R3 / 8

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

Genuine PISCO product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
