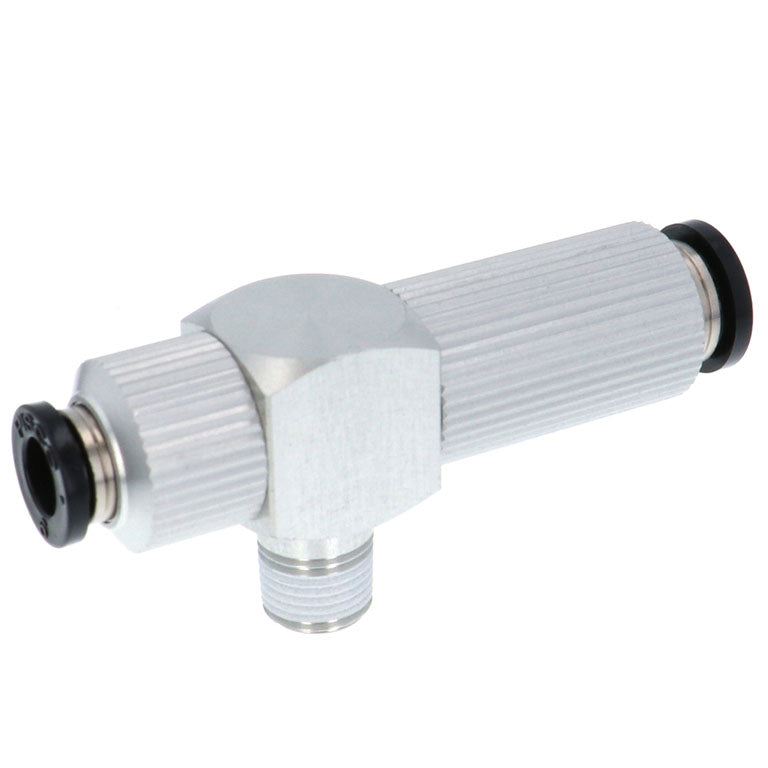

Name: PISCO Vacuum Generator Air Supply Port Straight Centralized Exhaust
Brand: PISCO
SKU: VCE07-016CJ
Price: 33.07 USD

PISCO Vacuum Generator Air Supply Port Straight Centralized Exhaust

VendorPISCO

Description

PISCO VC — Vacuum Generator Air Supply Port Straight Centralized Exhaust, genuine PISCO product.

Overview

PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.

Key Features

Genuine PISCO vacuum component
Select by pad diameter, material and mounting
Wide range of buffers and fittings

Specifications

Part No.	Vacuum Level (kPa)	Air Supply Port Size P	Fluid	Performance	Nozzle Dia.	Vacuum Port Size V	Material (Metal Hood)/Finish	Additional Function	Suction Flow (L/min)	Shape	Standard Supply Pressure (MPa)	Operating Temperature Range	Operating Pressure Range
VCE07-016CJ	-90 ~ 92	Ø6	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.7		Standard Spec	Centralized Exhaust Spec	10 ~ 10.5	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE07-016CJ-S3	-90 ~ 92	Ø6	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.7	R1 / 8	Copper-Free Spec		10 ~ 10.5	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE07-018CJ	-90 ~ 92	Ø8		Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.7	R1 / 8	Standard Spec	Centralized Exhaust Spec	10 ~ 10.5	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE07-018CJ-S3	-90 ~ 92	Ø8	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	0.7		Copper-Free Spec	Centralized Exhaust Spec	10 ~ 10.5	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE10-016CJ	-92.0	Ø6	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	1.0	R1 / 8	Standard Spec	Centralized Exhaust Spec	21.0	Vacuum Pad Direct Mount	0.35		0.15 ~ 0.7MPa
VCE10-016CJ-S3	-92.0	Ø6	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	1.0	R1 / 8	Copper-Free Spec	Centralized Exhaust Spec		Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE10-018CJ		Ø8	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	1.0	R1 / 8	Standard Spec	Centralized Exhaust Spec	21.0	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE10-018CJ-S3	-92.0	Ø8	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	1.0	R1 / 8	Copper-Free Spec	Centralized Exhaust Spec	21.0		0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE12-016CJ	-92.0	Ø6	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	1.2	R1 / 8	Standard Spec	Centralized Exhaust Spec	27.0	Vacuum Pad Direct Mount	0.35		0.15 ~ 0.7MPa
VCE12-016CJ-S3	-92.0	Ø6	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	1.2	R1 / 8	Copper-Free Spec	Centralized Exhaust Spec	27.0		0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE12-018CJ	-92.0	Ø8	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	1.2	R1 / 8	Standard Spec	Centralized Exhaust Spec		Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE12-018CJ-S3	-92.0	Ø8	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	1.2	R1 / 8	Copper-Free Spec	Centralized Exhaust Spec		Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE15-0210CJ	-92.0	Ø10	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	1.5	R1 / 4	Standard Spec		42.0	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE15-0210CJ-S3	-92.0	Ø10	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	1.5		Copper-Free Spec	Centralized Exhaust Spec	42.0	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE15-028CJ	-92.0	Ø8	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	1.5	R1 / 4	Standard Spec	Centralized Exhaust Spec	42.0		0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE15-028CJS-3	-92.0	Ø8	Air		1.5	R1 / 4	Standard Spec	Centralized Exhaust Spec	42.0	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE15-0310CJ	-92.0		Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	1.5	R3 / 8	Standard Spec	Centralized Exhaust Spec	42.0	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE15-0310CJ-S3	-92.0	Ø10	Air		1.5	R3 / 8	Copper-Free Spec	Centralized Exhaust Spec	42.0	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE15-038CJ	-92.0	Ø8	Air		1.5	R3 / 8	Standard Spec	Centralized Exhaust Spec	42.0	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE15-038CJ-S3	-92.0	Ø8	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	1.5	R3 / 8		Centralized Exhaust Spec	42.0	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE20-0210CJ	-92.0	Ø10	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	2.0		Standard Spec	Centralized Exhaust Spec	82.0	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE20-0210CJ-S3	-92.0	Ø10	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	2.0	R1 / 4	Copper-Free Spec	Centralized Exhaust Spec	82.0		0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE20-028CJ	-92.0		Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	2.0	R1 / 4	Standard Spec	Centralized Exhaust Spec	82.0	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE20-028CJ-S3	-92.0		Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	2.0	R1 / 4	Copper-Free Spec	Centralized Exhaust Spec	82.0	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE20-0310CJ	-92.0	Ø10	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)		R3 / 8	Standard Spec	Centralized Exhaust Spec	82.0	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE20-0310CJ-S3	-92.0	Ø10		Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	2.0	R3 / 8	Copper-Free Spec	Centralized Exhaust Spec	82.0	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE20-038CJ	-92.0	Ø8	Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	2.0	R3 / 8	Standard Spec	Centralized Exhaust Spec	82.0	Vacuum Pad Direct Mount		0 ~ 60 ℃	0.15 ~ 0.7MPa
VCE20-038CJ-S3	-92.0		Air	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	2.0	R3 / 8	Copper-Free Spec	Centralized Exhaust Spec	82.0	Vacuum Pad Direct Mount	0.35	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH07-016CJ	-92 ~ 93	Ø6	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.7	R1 / 8	Standard Spec	Centralized Exhaust Spec	12.5 ~ 13	Vacuum Pad Direct Mount		0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH07-016CJ-S3	-92 ~ 93	Ø6	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.7	R1 / 8	Copper-Free Spec	Centralized Exhaust Spec		Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH07-018CJ	-92 ~ 93		Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.7	R1 / 8	Standard Spec	Centralized Exhaust Spec	12.5 ~ 13	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH07-018CJ-S3	-92 ~ 93	Ø8		High Vacuum Type (Rated Supply Pressure: 0.5MPa)	0.7	R1 / 8	Copper-Free Spec	Centralized Exhaust Spec	12.5 ~ 13	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH10-016CJ	-93.0	Ø6	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	1.0		Standard Spec	Centralized Exhaust Spec	28.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH10-016CJ-S3		Ø6	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	1.0	R1 / 8	Copper-Free Spec	Centralized Exhaust Spec	28.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH10-018CJ	-93.0	Ø8	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	1.0	R1 / 8	Standard Spec	Centralized Exhaust Spec		Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH10-018CJ-S3	-93.0	Ø8	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	1.0	R1 / 8	Copper-Free Spec	Centralized Exhaust Spec	28.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃
VCH12-016CJ	-93.0	Ø6	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	1.2	R1 / 8	Standard Spec		38.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH12-016CJ-S3		Ø6	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	1.2	R1 / 8	Copper-Free Spec	Centralized Exhaust Spec	38.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH12-018CJ	-93.0	Ø8	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	1.2	R1 / 8		Centralized Exhaust Spec	38.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH12-018CJ-S3	-93.0		Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	1.2	R1 / 8	Copper-Free Spec	Centralized Exhaust Spec	38.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH15-0210CJ	-93.0	Ø10	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)		R1 / 4	Standard Spec	Centralized Exhaust Spec	63.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH15-0210CJ-S3	-93.0	Ø10	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)		R1 / 4	Copper-Free Spec	Centralized Exhaust Spec	63.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH15-028CJ		Ø8	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	1.5	R1 / 4	Standard Spec	Centralized Exhaust Spec	63.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH15-028CJ-S3	-93.0	Ø8	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	1.5	R1 / 4	Copper-Free Spec	Centralized Exhaust Spec		Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH15-0310CJ	-93.0	Ø10		High Vacuum Type (Rated Supply Pressure: 0.5MPa)	1.5	R3 / 8	Standard Spec	Centralized Exhaust Spec	63.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH15-0310CJ-S3	-93.0	Ø10	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	1.5	R3 / 8	Copper-Free Spec	Centralized Exhaust Spec		Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH15-038CJ	-93.0	Ø8	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	1.5		Standard Spec	Centralized Exhaust Spec	63.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH15-038CJ-S3	-93.0	Ø8	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)		R3 / 8	Copper-Free Spec	Centralized Exhaust Spec	63.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH20-0210CJ	-93.0	Ø10	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	2.0	R1 / 4	Standard Spec		104.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH20-0210CJ-S3		Ø10	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	2.0	R1 / 4	Copper-Free Spec	Centralized Exhaust Spec	104.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH20-028CJ	-93.0	Ø8		High Vacuum Type (Rated Supply Pressure: 0.5MPa)	2.0	R1 / 4	Standard Spec	Centralized Exhaust Spec	104.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH20-028CJ-S3	-93.0	Ø8	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	2.0	R1 / 4	Copper-Free Spec		104.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH20-0310CJ	-93.0	Ø10	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	2.0	R3 / 8	Standard Spec	Centralized Exhaust Spec	104.0		0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH20-0310CJ-S3		Ø10	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	2.0	R3 / 8	Copper-Free Spec	Centralized Exhaust Spec	104.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH20-038CJ	-93.0	Ø8		High Vacuum Type (Rated Supply Pressure: 0.5MPa)	2.0	R3 / 8	Standard Spec	Centralized Exhaust Spec	104.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCH20-038CJ-S3	-93.0	Ø8	Air	High Vacuum Type (Rated Supply Pressure: 0.5MPa)		R3 / 8	Copper-Free Spec	Centralized Exhaust Spec	104.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL07-016CJ	-66.0	Ø6		High Flow Type (Rated Supply Pressure: 0.5MPa)	0.7	R1 / 8	Standard Spec	Centralized Exhaust Spec	22 ~ 26	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL07-016CJ-S3		Ø6	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.7	R1 / 8	Copper-Free Spec	Centralized Exhaust Spec	22 ~ 26	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL07-018CJ	-66.0	Ø8	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.7	R1 / 8	Standard Spec	Centralized Exhaust Spec	22 ~ 26	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃
VCL07-018CJ-S3	-66.0	Ø8	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	0.7	R1 / 8	Copper-Free Spec	Centralized Exhaust Spec	22 ~ 26	Vacuum Pad Direct Mount	0.5		0.15 ~ 0.7MPa
VCL10-016CJ	-66.0	Ø6	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	1.0	R1 / 8	Standard Spec	Centralized Exhaust Spec	42.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃
VCL10-016CJ-S3	-66.0	Ø6	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	1.0		Copper-Free Spec	Centralized Exhaust Spec	42.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL10-018CJ	-66.0	Ø8	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	1.0		Standard Spec	Centralized Exhaust Spec	42.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL10-018CJ-S3	-66.0	Ø8	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	1.0	R1 / 8	Copper-Free Spec	Centralized Exhaust Spec	42.0	Vacuum Pad Direct Mount		0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL15-0210CJ	-66.0	Ø10	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	1.5	R1 / 4	Standard Spec	Centralized Exhaust Spec	95.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃
VCL15-0210CJ-S3	-66.0	Ø10	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	1.5	R1 / 4	Copper-Free Spec	Centralized Exhaust Spec	95.0		0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL15-028CJ	-66.0	Ø8	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	1.5	R1 / 4	Standard Spec	Centralized Exhaust Spec		Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL15-028CJ-S3	-66.0	Ø8	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	1.5	R1 / 4	Copper-Free Spec	Centralized Exhaust Spec		Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL15-0310CJ	-66.0	Ø10	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	1.5		Standard Spec	Centralized Exhaust Spec	95.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL15-0310CJ-S3	-66.0	Ø10	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	1.5	R3 / 8	Copper-Free Spec	Centralized Exhaust Spec	95.0	Vacuum Pad Direct Mount		0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL15-038CJ	-66.0	Ø8	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	1.5	R3 / 8	Standard Spec	Centralized Exhaust Spec	95.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃
VCL15-038CJ-S3	-66.0	Ø8		High Flow Type (Rated Supply Pressure: 0.5MPa)	1.5	R3 / 8	Copper-Free Spec	Centralized Exhaust Spec	95.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL20-0210CJ	-66.0	Ø10	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	2.0	R1 / 4		Centralized Exhaust Spec	174.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL20-0210CJ-S3	-66.0	Ø10	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	2.0	R1 / 4		Centralized Exhaust Spec	174.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL20-028CJ	-66.0	Ø8	Air		2.0	R1 / 4	Standard Spec	Centralized Exhaust Spec	174.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL20-028CJ-S3	-66.0	Ø8	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	2.0	R1 / 4	Copper-Free Spec	Centralized Exhaust Spec	174.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃
VCL20-0310CJ	-66.0	Ø10	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	2.0	R3 / 8	Standard Spec	Centralized Exhaust Spec		Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL20-0310CJ-S3	-66.0	Ø10	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	2.0	R3 / 8	Copper-Free Spec	Centralized Exhaust Spec		Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL20-038CJ	-66.0	Ø8	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)		R3 / 8	Standard Spec	Centralized Exhaust Spec	174.0	Vacuum Pad Direct Mount	0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa
VCL20-038CJ-S3	-66.0	Ø8	Air	High Flow Type (Rated Supply Pressure: 0.5MPa)	2.0	R3 / 8	Copper-Free Spec	Centralized Exhaust Spec	174.0		0.5	0 ~ 60 ℃	0.15 ~ 0.7MPa

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

Genuine PISCO product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
