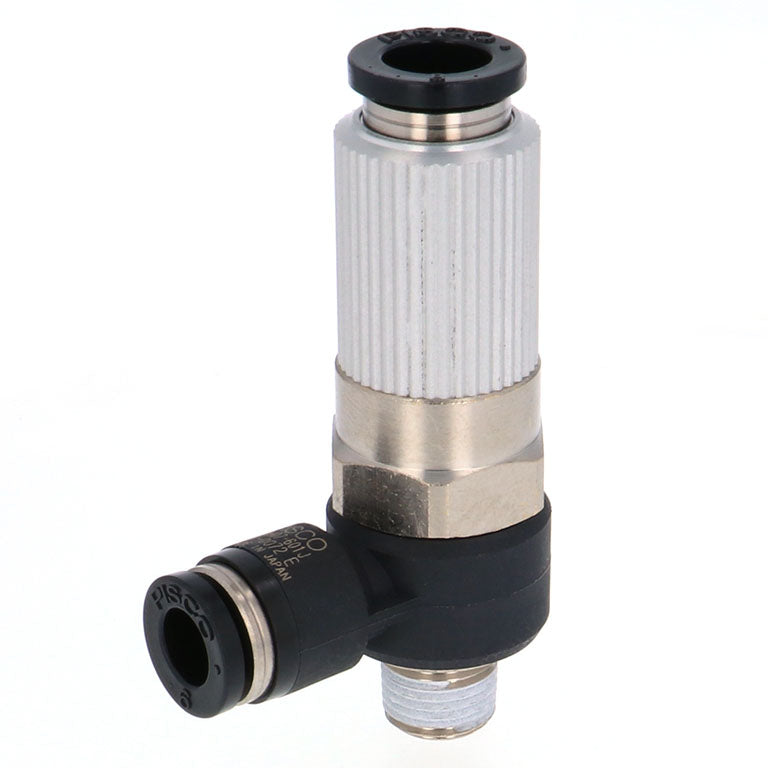

PISCO Vacuum Generator Elbow Centralized Exhaust

Description

PISCO VH — Vacuum Generator Elbow Centralized Exhaust, genuine PISCO product.

Overview

PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.

Key Features

  • Genuine PISCO vacuum component
  • Select by pad diameter, material and mounting
  • Wide range of buffers and fittings

Specifications

Part No. Performance Additional Function Suction Flow (L/min) Material (Metal Hood)/Finish Air Supply Port Size P Fluid Nozzle Dia. Standard Supply Pressure (MPa) Vacuum Level (kPa) Operating Pressure Range Shape Operating Temperature Range Vacuum Port Size V
VHE07-601J Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 10 ~ 10.5 R1 / 8 Air 0.7 0.35 -90 ~ 92 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHE07-601J-S3 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 10 ~ 10.5 Copper-Free Spec R1 / 8 Air 0.7 0.35 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHE10-601J Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 21.0 Standard Spec R1 / 8 Air 0.35 -92.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHE10-601J-S3 Centralized Exhaust Spec 21.0 Copper-Free Spec R1 / 8 Air 1.0 0.35 -92.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHE10-801J Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 21.0 Standard Spec R1 / 8 Air 1.0 0.35 -92.0 Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø8
VHE10-801J-S3 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 21.0 Copper-Free Spec R1 / 8 Air 1.0 0.35 -92.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow Ø8
VHE12-601J Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 27.0 Standard Spec R1 / 8 Air 0.35 -92.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHE12-601J-S3 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 27.0 Copper-Free Spec R1 / 8 Air 0.35 -92.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHE12-801J Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 27.0 Standard Spec R1 / 8 Air 1.2 0.35 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø8
VHE12-801J-S3 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 27.0 Copper-Free Spec R1 / 8 Air 0.35 -92.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø8
VHE15-1002J Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 42.0 Standard Spec R1 / 4 Air 1.5 0.35 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø10
VHE15-1002J-S3 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 42.0 Copper-Free Spec R1 / 4 Air 1.5 0.35 -92.0 Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø10
VHE15-802J Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 42.0 Standard Spec R1 / 4 Air 1.5 0.35 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø8
VHE15-802J-S3 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 42.0 Copper-Free Spec R1 / 4 Air 1.5 0.35 -92.0 0.15 ~ 0.7MPa 0 ~ 60 ℃ Ø8
VHE20-1002J Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 82.0 Standard Spec R1 / 4 Air 2.0 0.35 -92.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø10
VHE20-1002J-S3 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 82.0 Copper-Free Spec R1 / 4 Air 2.0 0.35 -92.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃
VHE20-1003J Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 82.0 R3 / 8 Air 2.0 0.35 -92.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø10
VHE20-1003J-S3 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec Copper-Free Spec R3 / 8 Air 2.0 0.35 -92.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø10
VHE20-1202J Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 82.0 Standard Spec Air 2.0 0.35 -92.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø12
VHE20-1202J-S3 Centralized Exhaust Spec 82.0 Copper-Free Spec R1 / 4 Air 2.0 0.35 -92.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø12
VHE20-1203J Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 82.0 Standard Spec R3 / 8 Air 0.35 -92.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø12
VHE20-1203J-S3 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) Centralized Exhaust Spec 82.0 Copper-Free Spec R3 / 8 Air 2.0 -92.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø12
VHH05-4M5J High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 7.0 Standard Spec M5 × 0.8 Air 0.5 0.5 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø4
VHH05-4M5J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 7.0 Copper-Free Spec M5 × 0.8 Air 0.5 0.5 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø4
VHH05-601J High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 7.0 Standard Spec R1 / 8 Air 0.5 -90.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHH05-601J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 7.0 Copper-Free Spec R1 / 8 Air 0.5 0.5 -90.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃
VHH07-601J High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 12.5 ~ 13 Standard Spec R1 / 8 Air 0.5 -92 ~ 93 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHH07-601J-S3 Centralized Exhaust Spec 12.5 ~ 13 Copper-Free Spec R1 / 8 Air 0.7 0.5 -92 ~ 93 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHH10-601J High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 28.0 Standard Spec Air 1.0 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHH10-601J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 28.0 Copper-Free Spec R1 / 8 Air 1.0 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHH10-801J Centralized Exhaust Spec 28.0 Standard Spec R1 / 8 Air 1.0 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø8
VHH10-801J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 28.0 Copper-Free Spec R1 / 8 1.0 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø8
VHH12-601J High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 38.0 Standard Spec R1 / 8 Air 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHH12-601J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 38.0 R1 / 8 Air 1.2 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHH12-801J High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 38.0 Standard Spec R1 / 8 1.2 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø8
VHH12-801J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 38.0 Copper-Free Spec Air 1.2 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø8
VHH15-1002J High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 63.0 Standard Spec R1 / 4 Air 1.5 0.5 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø10
VHH15-1002J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 63.0 Copper-Free Spec R1 / 4 Air 1.5 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow Ø10
VHH15-802J High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec Standard Spec R1 / 4 Air 1.5 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø8
VHH15-802J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 63.0 Copper-Free Spec R1 / 4 1.5 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø8
VHH20-1002J High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 104.0 Standard Spec R1 / 4 Air 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø10
VHH20-1002J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 104.0 Copper-Free Spec R1 / 4 Air 2.0 0.5 -93.0 Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø10
VHH20-1003J High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 104.0 R3 / 8 Air 2.0 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø10
VHH20-1003J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 104.0 Copper-Free Spec R3 / 8 Air 2.0 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø10
VHH20-1202J High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 104.0 Standard Spec Air 2.0 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø12
VHH20-1202J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 104.0 Copper-Free Spec R1 / 4 Air 2.0 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃
VHH20-1203J High Vacuum Type (Rated Supply Pressure: 0.5MPa) 104.0 Standard Spec R3 / 8 Air 2.0 0.5 -93.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø12
VHH20-1203J-S3 High Vacuum Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 104.0 Copper-Free Spec R3 / 8 Air 2.0 0.5 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø12
VHL05-4M5J High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 12.0 Standard Spec Air 0.5 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø4
VHL05-4M5J-S3 Centralized Exhaust Spec 12.0 Copper-Free Spec M5 × 0.8 Air 0.5 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø4
VHL05-601J High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 12.0 R1 / 8 Air 0.5 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHL05-601J-S3 Centralized Exhaust Spec 12.0 Copper-Free Spec R1 / 8 Air 0.5 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHL07-601J Centralized Exhaust Spec 22 ~ 26 Standard Spec R1 / 8 Air 0.7 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHL07-601J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 22 ~ 26 Copper-Free Spec R1 / 8 Air 0.7 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow Ø6
VHL07-801J High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 22 ~ 26 Standard Spec R1 / 8 Air 0.7 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow Ø8
VHL07-801J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 22 ~ 26 Copper-Free Spec R1 / 8 Air 0.7 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø8
VHL10-601J High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 42.0 Standard Spec R1 / 8 Air 1.0 0.5 -66.0 Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHL10-601J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 42.0 Copper-Free Spec R1 / 8 Air 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø6
VHL10-801J High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec Standard Spec R1 / 8 Air 1.0 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø8
VHL10-801J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 42.0 Copper-Free Spec R1 / 8 Air 1.0 0.5 -66.0 Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø8
VHL15-1002J High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 95.0 Standard Spec R1 / 4 Air 1.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø10
VHL15-1002J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) 95.0 Copper-Free Spec R1 / 4 Air 1.5 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø10
VHL15-1202J High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 95.0 Standard Spec R1 / 4 Air 1.5 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow Ø12
VHL15-1202J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 95.0 Copper-Free Spec R1 / 4 Air 1.5 0.5 -66.0 Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø12
VHL15-802J High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 95.0 Standard Spec R1 / 4 Air 1.5 0.5 -66.0 Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø8
VHL15-802J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 95.0 Copper-Free Spec R1 / 4 Air 1.5 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃
VHL20-1002J High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 174.0 Standard Spec R1 / 4 Air 2.0 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃
VHL20-1002J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 174.0 Copper-Free Spec R1 / 4 Air 2.0 0.5 -66.0 Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø10
VHL20-1003J High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec Standard Spec R3 / 8 Air 2.0 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø10
VHL20-1003J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 174.0 Copper-Free Spec R3 / 8 Air 2.0 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃
VHL20-1202J High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 174.0 Standard Spec R1 / 4 Air 2.0 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃
VHL20-1202J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 174.0 R1 / 4 Air 2.0 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø12
VHL20-1203J High Flow Type (Rated Supply Pressure: 0.5MPa) Centralized Exhaust Spec 174.0 Standard Spec R3 / 8 Air 2.0 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø12
VHL20-1203J-S3 High Flow Type (Rated Supply Pressure: 0.5MPa) 174.0 Copper-Free Spec R3 / 8 Air 2.0 0.5 -66.0 0.15 ~ 0.7MPa Solenoid Valve Direct Mount Elbow 0 ~ 60 ℃ Ø12

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
