Description

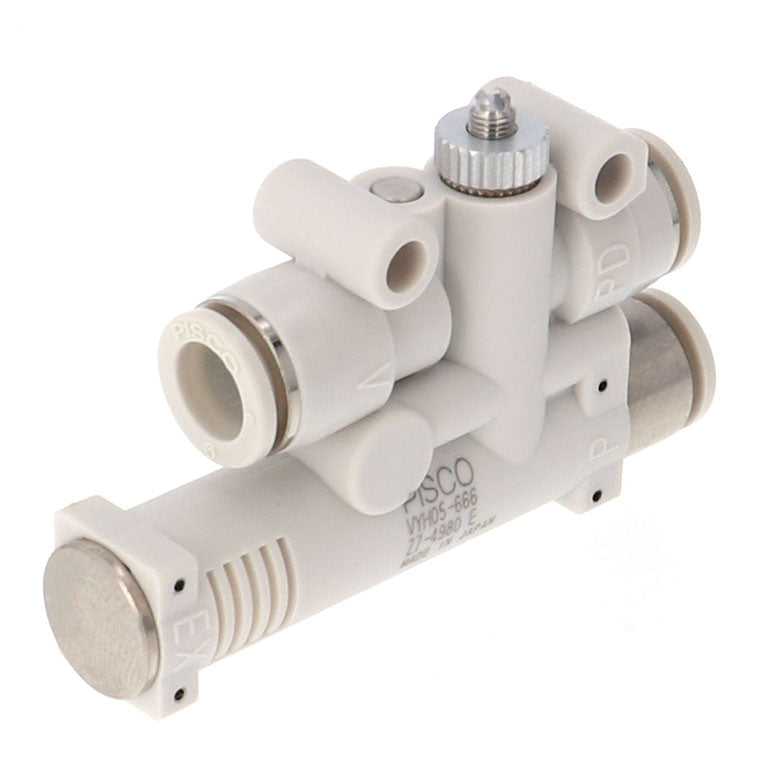

PISCO VY — Vacuum Generator Silencer Atmospheric Exhaust Spec, genuine PISCO product.
Overview
PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.
Key Features
- Genuine PISCO vacuum component
- Select by pad diameter, material and mounting
- Wide range of buffers and fittings
Specifications
| Part No. |
Fluid |
Standard Supply Pressure (MPa) |
Vacuum Level (kPa) |
Performance |
Operating Temperature Range |
Shape |
Release Air Supply Port Size |
Nozzle Dia. |
Filter |
Air Supply Port Size P |
Suction Flow (L/min) |
Lubricated |
Operating Pressure Range |
Vacuum Port Size V |
| VYE05-444 |
Air |
0.35 |
-90.0 |
Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) |
5 ~ 50 ℃ |
with Vacuum Release Function |
Ø4 |
|
No Vacuum Filter |
Ø4 |
3.0 |
Not Required |
|
Ø4 |
| VYE05-666 |
Air |
0.35 |
-90.0 |
Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) |
5 ~ 50 ℃ |
with Vacuum Release Function |
Ø6 |
0.5 |
No Vacuum Filter |
|
3.0 |
Not Required |
|
Ø6 |
| VYE07-444 |
|
0.35 |
-90.0 |
|
5 ~ 50 ℃ |
with Vacuum Release Function |
Ø4 |
0.7 |
No Vacuum Filter |
Ø4 |
9.0 |
Not Required |
0.3 ~ 0.7MPa |
Ø4 |
| VYE07-666 |
Air |
0.35 |
-90.0 |
Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) |
5 ~ 50 ℃ |
with Vacuum Release Function |
Ø6 |
|
No Vacuum Filter |
Ø6 |
9.0 |
|
0.3 ~ 0.7MPa |
Ø6 |
| VYH05-444 |
Air |
0.5 |
-90.0 |
High Vacuum Type (Rated Supply Pressure: 0.5MPa) |
5 ~ 50 ℃ |
with Vacuum Release Function |
Ø4 |
|
No Vacuum Filter |
Ø4 |
|
Not Required |
0.3 ~ 0.7MPa |
Ø4 |
| VYH05-666 |
Air |
0.5 |
|
High Vacuum Type (Rated Supply Pressure: 0.5MPa) |
5 ~ 50 ℃ |
with Vacuum Release Function |
Ø6 |
0.5 |
No Vacuum Filter |
Ø6 |
7.0 |
Not Required |
0.3 ~ 0.7MPa |
|
| VYH07-444 |
Air |
|
-92.0 |
High Vacuum Type (Rated Supply Pressure: 0.5MPa) |
5 ~ 50 ℃ |
with Vacuum Release Function |
|
0.7 |
No Vacuum Filter |
Ø4 |
12.5 |
Not Required |
0.3 ~ 0.7MPa |
Ø4 |
| VYH07-666 |
|
0.5 |
-92.0 |
High Vacuum Type (Rated Supply Pressure: 0.5MPa) |
|
with Vacuum Release Function |
Ø6 |
0.7 |
No Vacuum Filter |
Ø6 |
12.5 |
Not Required |
0.3 ~ 0.7MPa |
Ø6 |
| VYL05-444 |
Air |
|
-66.0 |
High Flow Type (Rated Supply Pressure: 0.5MPa) |
5 ~ 50 ℃ |
with Vacuum Release Function |
Ø4 |
0.5 |
|
Ø4 |
12.0 |
Not Required |
0.3 ~ 0.7MPa |
Ø4 |
| VYL05-666 |
Air |
0.5 |
-66.0 |
High Flow Type (Rated Supply Pressure: 0.5MPa) |
5 ~ 50 ℃ |
with Vacuum Release Function |
Ø6 |
0.5 |
No Vacuum Filter |
Ø6 |
12.0 |
|
0.3 ~ 0.7MPa |
|
| VYL07-444 |
|
0.5 |
-66.0 |
High Flow Type (Rated Supply Pressure: 0.5MPa) |
|
with Vacuum Release Function |
Ø4 |
0.7 |
No Vacuum Filter |
Ø4 |
18.0 |
Not Required |
0.3 ~ 0.7MPa |
Ø4 |
| VYL07-666 |
Air |
0.5 |
-66.0 |
|
5 ~ 50 ℃ |
with Vacuum Release Function |
Ø6 |
0.7 |
No Vacuum Filter |
Ø6 |
|
Not Required |
0.3 ~ 0.7MPa |
Ø6 |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
