Description

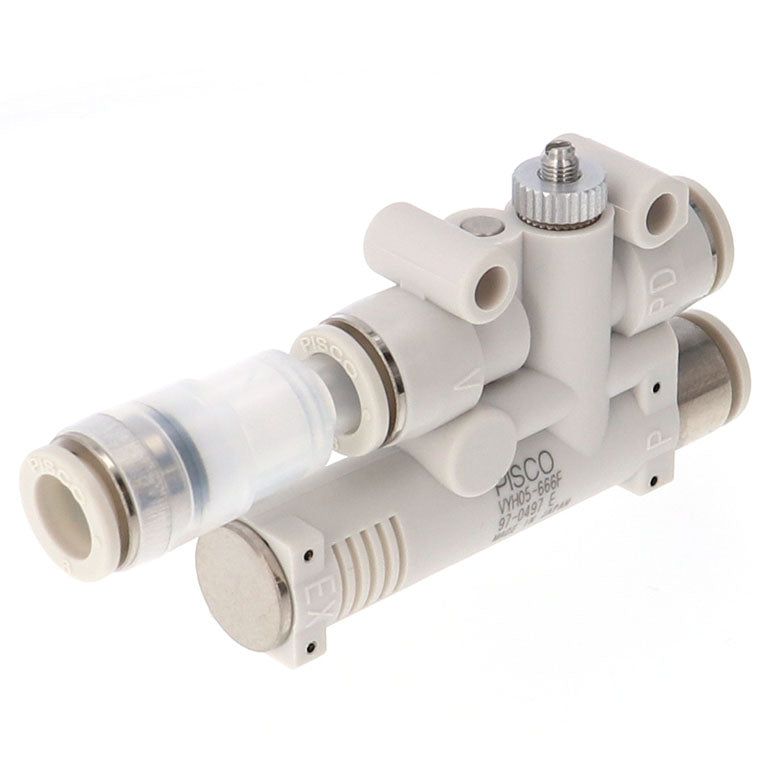

PISCO VY — Vacuum Generator Silencer Atmospheric Exhaust Spec with Vacuum Filter, genuine PISCO product.
Overview
PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.
Key Features
- Genuine PISCO vacuum component
- Select by pad diameter, material and mounting
- Wide range of buffers and fittings
Specifications
| Part No. |
Release Air Supply Port Size |
Fluid |
Lubricated |
Performance |
Vacuum Level (kPa) |
Vacuum Port Size V |
Air Supply Port Size P |
Shape |
Suction Flow (L/min) |
Nozzle Dia. |
Filter |
Operating Pressure Range |
Operating Temperature Range |
Standard Supply Pressure (MPa) |
| VYE05-444F |
Ø4 |
Air |
Not Required |
Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) |
-90.0 |
Ø4 |
|
with Vacuum Release Function |
3.0 |
0.5 |
with Vacuum Filter |
|
5 ~ 50 ℃ |
0.35 |
| VYE05-666F |
Ø6 |
Air |
Not Required |
Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) |
-90.0 |
Ø6 |
Ø6 |
|
|
0.5 |
with Vacuum Filter |
0.3 ~ 0.7MPa |
5 ~ 50 ℃ |
0.35 |
| VYE07-444F |
Ø4 |
Air |
Not Required |
Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) |
|
Ø4 |
Ø4 |
with Vacuum Release Function |
|
0.7 |
with Vacuum Filter |
0.3 ~ 0.7MPa |
5 ~ 50 ℃ |
0.35 |
| VYE07-666F |
Ø6 |
Air |
Not Required |
Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) |
-90.0 |
Ø6 |
Ø6 |
with Vacuum Release Function |
9.0 |
0.7 |
with Vacuum Filter |
|
5 ~ 50 ℃ |
|
| VYH05-444F |
Ø4 |
Air |
Not Required |
High Vacuum Type (Rated Supply Pressure: 0.5MPa) |
-90.0 |
Ø4 |
|
with Vacuum Release Function |
7.0 |
0.5 |
|
0.3 ~ 0.7MPa |
5 ~ 50 ℃ |
0.5 |
| VYH05-666F |
Ø6 |
Air |
|
|
-90.0 |
Ø6 |
Ø6 |
with Vacuum Release Function |
7.0 |
0.5 |
with Vacuum Filter |
0.3 ~ 0.7MPa |
5 ~ 50 ℃ |
0.5 |
| VYH07-444F |
|
Air |
Not Required |
High Vacuum Type (Rated Supply Pressure: 0.5MPa) |
-92.0 |
Ø4 |
Ø4 |
with Vacuum Release Function |
12.5 |
0.7 |
|
0.3 ~ 0.7MPa |
5 ~ 50 ℃ |
0.5 |
| VYH07-666F |
Ø6 |
|
Not Required |
|
-92.0 |
Ø6 |
Ø6 |
with Vacuum Release Function |
12.5 |
0.7 |
with Vacuum Filter |
0.3 ~ 0.7MPa |
5 ~ 50 ℃ |
0.5 |
| VYL05-444F |
Ø4 |
|
Not Required |
High Flow Type (Rated Supply Pressure: 0.5MPa) |
-66.0 |
Ø4 |
Ø4 |
with Vacuum Release Function |
12.0 |
0.5 |
with Vacuum Filter |
0.3 ~ 0.7MPa |
|
0.5 |
| VYL05-666F |
Ø6 |
Air |
Not Required |
High Flow Type (Rated Supply Pressure: 0.5MPa) |
-66.0 |
Ø6 |
|
with Vacuum Release Function |
12.0 |
|
with Vacuum Filter |
0.3 ~ 0.7MPa |
5 ~ 50 ℃ |
0.5 |
| VYL07-444F |
Ø4 |
Air |
Not Required |
|
-66.0 |
Ø4 |
Ø4 |
with Vacuum Release Function |
18.0 |
|
with Vacuum Filter |
0.3 ~ 0.7MPa |
5 ~ 50 ℃ |
0.5 |
| VYL07-666F |
Ø6 |
Air |
Not Required |
High Flow Type (Rated Supply Pressure: 0.5MPa) |
|
Ø6 |
Ø6 |
with Vacuum Release Function |
|
0.7 |
with Vacuum Filter |
0.3 ~ 0.7MPa |
5 ~ 50 ℃ |
0.5 |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
