Description

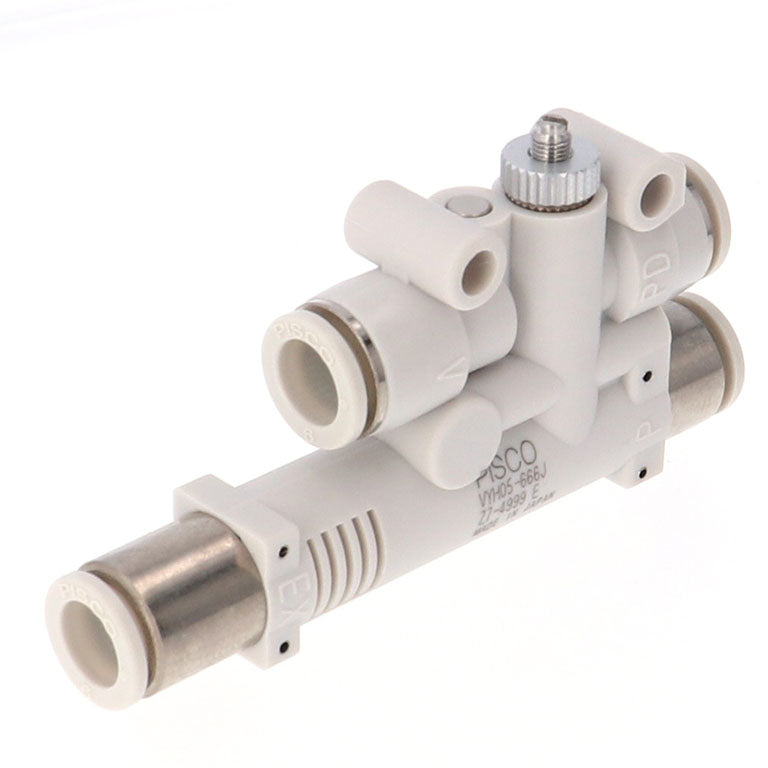

PISCO VY — Vacuum Generator Centralized Exhaust Spec, genuine PISCO product.
Overview
PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.
Key Features
- Genuine PISCO vacuum component
- Select by pad diameter, material and mounting
- Wide range of buffers and fittings
Specifications
| Part No. |
Shape |
Lubricated |
Operating Pressure Range |
Suction Flow (L/min) |
Performance |
Vacuum Port Size V |
Operating Temperature Range |
Vacuum Level (kPa) |
Nozzle Dia. |
Air Supply Port Size P |
Fluid |
Release Air Supply Port Size |
Standard Supply Pressure (MPa) |
Filter |
| VYE05-444J |
with Vacuum Release Function |
Not Required |
0.3 ~ 0.7MPa |
3.0 |
Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) |
Ø4 |
|
-90.0 |
0.5 |
|
Air |
Ø4 |
0.35 |
No Vacuum Filter |
| VYE05-666J |
with Vacuum Release Function |
Not Required |
0.3 ~ 0.7MPa |
3.0 |
Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) |
Ø6 |
5 ~ 50 ℃ |
|
0.5 |
Ø6 |
Air |
Ø6 |
|
No Vacuum Filter |
| VYE07-444J |
with Vacuum Release Function |
Not Required |
0.3 ~ 0.7MPa |
9.0 |
Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) |
Ø4 |
5 ~ 50 ℃ |
-90.0 |
0.7 |
|
Air |
Ø4 |
0.35 |
|
| VYE07-666J |
with Vacuum Release Function |
Not Required |
0.3 ~ 0.7MPa |
|
Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) |
Ø6 |
5 ~ 50 ℃ |
|
0.7 |
Ø6 |
Air |
Ø6 |
0.35 |
No Vacuum Filter |
| VYH05-444J |
with Vacuum Release Function |
Not Required |
0.3 ~ 0.7MPa |
7.0 |
|
|
5 ~ 50 ℃ |
-90.0 |
0.5 |
Ø4 |
Air |
Ø4 |
0.5 |
No Vacuum Filter |
| VYH05-666J |
with Vacuum Release Function |
Not Required |
|
7.0 |
High Vacuum Type (Rated Supply Pressure: 0.5MPa) |
Ø6 |
|
-90.0 |
0.5 |
Ø6 |
Air |
Ø6 |
0.5 |
No Vacuum Filter |
| VYH07-444J |
|
Not Required |
|
12.5 |
High Vacuum Type (Rated Supply Pressure: 0.5MPa) |
Ø4 |
5 ~ 50 ℃ |
-92.0 |
0.7 |
Ø4 |
Air |
Ø4 |
0.5 |
No Vacuum Filter |
| VYH07-666J |
with Vacuum Release Function |
Not Required |
0.3 ~ 0.7MPa |
|
High Vacuum Type (Rated Supply Pressure: 0.5MPa) |
Ø6 |
5 ~ 50 ℃ |
-92.0 |
0.7 |
|
Air |
Ø6 |
0.5 |
No Vacuum Filter |
| VYL05-444J |
with Vacuum Release Function |
Not Required |
0.3 ~ 0.7MPa |
12.0 |
High Flow Type (Rated Supply Pressure: 0.5MPa) |
Ø4 |
|
-66.0 |
0.5 |
Ø4 |
Air |
Ø4 |
0.5 |
|
| VYL05-666J |
with Vacuum Release Function |
Not Required |
0.3 ~ 0.7MPa |
12.0 |
High Flow Type (Rated Supply Pressure: 0.5MPa) |
|
5 ~ 50 ℃ |
|
0.5 |
Ø6 |
Air |
Ø6 |
0.5 |
No Vacuum Filter |
| VYL07-444J |
with Vacuum Release Function |
|
0.3 ~ 0.7MPa |
|
High Flow Type (Rated Supply Pressure: 0.5MPa) |
Ø4 |
5 ~ 50 ℃ |
-66.0 |
0.7 |
Ø4 |
Air |
Ø4 |
0.5 |
No Vacuum Filter |
| VYL07-666J |
with Vacuum Release Function |
Not Required |
0.3 ~ 0.7MPa |
21.0 |
High Flow Type (Rated Supply Pressure: 0.5MPa) |
Ø6 |
5 ~ 50 ℃ |
-66.0 |
0.7 |
Ø6 |
Air |
|
|
No Vacuum Filter |
How to Order
Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About PISCO
PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.
Ordering & Shipping
- Genuine PISCO product sourced through Korean distribution
- Lead time varies by model; most items ship within 2-3 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
