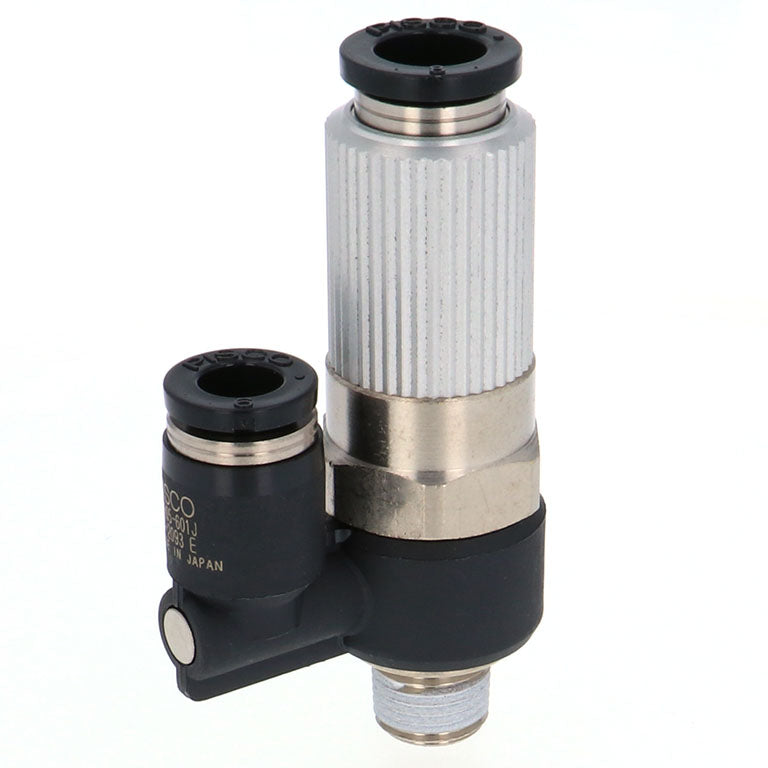

Name: PISCO Vacuum Generator Straight Centralized Exhaust
Brand: PISCO
SKU: VSE07-601J
Price: 23.84 USD

PISCO Vacuum Generator Straight Centralized Exhaust

VendorPISCO

Description

PISCO VS — Vacuum Generator Straight Centralized Exhaust, genuine PISCO product.

Overview

PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.

Key Features

Genuine PISCO vacuum component
Select by pad diameter, material and mounting
Wide range of buffers and fittings

Specifications

Part No.	Performance	Material (Metal Hood)/Finish	Vacuum Port Size V	Operating Pressure Range	Nozzle Dia.	Standard Supply Pressure (MPa)	Operating Temperature Range	Suction Flow (L/min)	Vacuum Level (kPa)	Fluid	Air Supply Port Size P	Shape	Additional Function
VSE07-601J	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	Standard Spec	Ø6	0.15 ~ 0.7MPa	0.7	0.35	0 ~ 60 ℃	10 ~ 10.5		Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE07-601J-S3	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)		Ø6	0.15 ~ 0.7MPa	0.7	0.35	0 ~ 60 ℃	10 ~ 10.5	-90 ~ 92	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE10-601J	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)		Ø6	0.15 ~ 0.7MPa	1.0	0.35	0 ~ 60 ℃	21.0	-92.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE10-601J-S3	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	Copper-Free Spec	Ø6	0.15 ~ 0.7MPa	1.0	0.35		21.0	-92.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE10-801J	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	Standard Spec	Ø8	0.15 ~ 0.7MPa	1.0		0 ~ 60 ℃	21.0	-92.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE10-801J-S3	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	Copper-Free Spec	Ø8	0.15 ~ 0.7MPa	1.0	0.35	0 ~ 60 ℃	21.0		Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE12-601J	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	Standard Spec		0.15 ~ 0.7MPa	1.2	0.35	0 ~ 60 ℃	27.0	-92.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE12-601J-S3	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	Copper-Free Spec	Ø6	0.15 ~ 0.7MPa		0.35	0 ~ 60 ℃	27.0	-92.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE12-801J	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	Standard Spec	Ø8	0.15 ~ 0.7MPa	1.2	0.35	0 ~ 60 ℃	27.0		Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE12-801J-S3	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	Copper-Free Spec	Ø8	0.15 ~ 0.7MPa	1.2	0.35	0 ~ 60 ℃	27.0	-92.0	Air	R1 / 8		Centralized Exhaust Spec
VSE15-1002J	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	Standard Spec	Ø10	0.15 ~ 0.7MPa	1.5		0 ~ 60 ℃	42.0	-92.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE15-1002J-S3	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)		Ø10	0.15 ~ 0.7MPa	1.5	0.35	0 ~ 60 ℃	42.0	-92.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE15-802J	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	Standard Spec		0.15 ~ 0.7MPa	1.5	0.35	0 ~ 60 ℃	42.0	-92.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE15-802J-S3	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	Copper-Free Spec	Ø8	0.15 ~ 0.7MPa	1.5	0.35		42.0	-92.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE20-1202J	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)		Ø12	0.15 ~ 0.7MPa	2.0	0.35	0 ~ 60 ℃	82.0	-92.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE20-1202J-S3		Copper-Free Spec	Ø12	0.15 ~ 0.7MPa	2.0	0.35	0 ~ 60 ℃	82.0	-92.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE20-1203J	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	Standard Spec	Ø12	0.15 ~ 0.7MPa		0.35	0 ~ 60 ℃	82.0	-92.0	Air	R3 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSE20-1203J-S3	Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa)	Copper-Free Spec	Ø12	0.15 ~ 0.7MPa	2.0	0.35	0 ~ 60 ℃	82.0		Air	R3 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH05-601J		Standard Spec	Ø6	0.15 ~ 0.7MPa	0.5	0.5	0 ~ 60 ℃	7.0	-90.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH05-601J-S3	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø6	0.15 ~ 0.7MPa	0.5	0.5	0 ~ 60 ℃	7.0		Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH07-601J	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Standard Spec		0.15 ~ 0.7MPa	0.7	0.5	0 ~ 60 ℃	12.5 ~ 13	-92 ~ 93	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH07-601J-S3	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø6	0.15 ~ 0.7MPa	0.7	0.5	0 ~ 60 ℃	12.5 ~ 13	-92 ~ 93	Air	R1 / 8	Solenoid Valve Direct Mount Straight
VSH10-601J		Standard Spec	Ø6	0.15 ~ 0.7MPa	1.0	0.5	0 ~ 60 ℃	28.0	-93.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH10-601J-S3	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø6	0.15 ~ 0.7MPa		0.5	0 ~ 60 ℃	28.0	-93.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH10-801J	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø8	0.15 ~ 0.7MPa	1.0	0.5		28.0	-93.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH10-801J-S3	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø8	0.15 ~ 0.7MPa	1.0	0.5	0 ~ 60 ℃	28.0		Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH12-601J	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø6		1.2	0.5	0 ~ 60 ℃	38.0	-93.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH12-601J-S3	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø6	0.15 ~ 0.7MPa	1.2		0 ~ 60 ℃	38.0	-93.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH12-801J	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø8	0.15 ~ 0.7MPa	1.2		0 ~ 60 ℃	38.0	-93.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH12-801J-S3	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø8	0.15 ~ 0.7MPa	1.2	0.5		38.0	-93.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH15-1002J	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø10	0.15 ~ 0.7MPa	1.5	0.5	0 ~ 60 ℃	63.0	-93.0	Air		Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH15-1002J-S3	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø10	0.15 ~ 0.7MPa	1.5	0.5	0 ~ 60 ℃		-93.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH15-802J	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø8	0.15 ~ 0.7MPa	1.5	0.5	0 ~ 60 ℃	63.0		Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH15-802J-S3		Copper-Free Spec	Ø8	0.15 ~ 0.7MPa	1.5	0.5	0 ~ 60 ℃	63.0	-93.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH20-1202J	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø12	0.15 ~ 0.7MPa	2.0	0.5	0 ~ 60 ℃	104.0	-93.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight
VSH20-1202J-S3	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø12	0.15 ~ 0.7MPa	2.0	0.5	0 ~ 60 ℃	104.0	-93.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight
VSH20-1203J	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø12	0.15 ~ 0.7MPa		0.5	0 ~ 60 ℃	104.0	-93.0	Air	R3 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSH20-1203J-S3	High Vacuum Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø12	0.15 ~ 0.7MPa	2.0	0.5	0 ~ 60 ℃	104.0	-93.0	Air	R3 / 8		Centralized Exhaust Spec
VSL05-601J	High Flow Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø6	0.15 ~ 0.7MPa		0.5	0 ~ 60 ℃	12.0	-66.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL05-601J-S3	High Flow Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø6		0.5	0.5	0 ~ 60 ℃	12.0	-66.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL07-601J	High Flow Type (Rated Supply Pressure: 0.5MPa)		Ø6	0.15 ~ 0.7MPa	0.7	0.5	0 ~ 60 ℃	22 ~ 26	-66.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL07-601J-S3	High Flow Type (Rated Supply Pressure: 0.5MPa)		Ø6	0.15 ~ 0.7MPa	0.7	0.5	0 ~ 60 ℃	22 ~ 26	-66.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL07-801J	High Flow Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø8	0.15 ~ 0.7MPa	0.7	0.5	0 ~ 60 ℃	22 ~ 26	-66.0		R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL07-801J-S3	High Flow Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø8	0.15 ~ 0.7MPa	0.7	0.5	0 ~ 60 ℃	22 ~ 26	-66.0	Air	R1 / 8		Centralized Exhaust Spec
VSL10-601J	High Flow Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø6	0.15 ~ 0.7MPa	1.0	0.5	0 ~ 60 ℃	42.0	-66.0	Air		Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL10-601J-S3	High Flow Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø6	0.15 ~ 0.7MPa	1.0	0.5	0 ~ 60 ℃	42.0	-66.0		R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL10-801J	High Flow Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø8	0.15 ~ 0.7MPa		0.5	0 ~ 60 ℃	42.0	-66.0	Air	R1 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL10-801J-S3	High Flow Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø8	0.15 ~ 0.7MPa	1.0	0.5	0 ~ 60 ℃	42.0	-66.0	Air		Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL15-1002J	High Flow Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø10		1.5	0.5	0 ~ 60 ℃	95.0	-66.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL15-1002J-S3	High Flow Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø10	0.15 ~ 0.7MPa	1.5	0.5	0 ~ 60 ℃	95.0	-66.0	Air		Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL15-1202J	High Flow Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø12	0.15 ~ 0.7MPa	1.5	0.5	0 ~ 60 ℃	95.0	-66.0		R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL15-1202J-S3	High Flow Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø12	0.15 ~ 0.7MPa	1.5	0.5	0 ~ 60 ℃	95.0		Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL15-802J	High Flow Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø8	0.15 ~ 0.7MPa	1.5	0.5	0 ~ 60 ℃		-66.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL15-802J-S3	High Flow Type (Rated Supply Pressure: 0.5MPa)		Ø8	0.15 ~ 0.7MPa	1.5	0.5	0 ~ 60 ℃	95.0	-66.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL20-1202J	High Flow Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø12	0.15 ~ 0.7MPa		0.5	0 ~ 60 ℃	174.0	-66.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL20-1202J-S3	High Flow Type (Rated Supply Pressure: 0.5MPa)		Ø12	0.15 ~ 0.7MPa	2.0	0.5	0 ~ 60 ℃	174.0	-66.0	Air	R1 / 4	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL20-1203J	High Flow Type (Rated Supply Pressure: 0.5MPa)	Standard Spec	Ø12	0.15 ~ 0.7MPa	2.0	0.5	0 ~ 60 ℃	174.0		Air	R3 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec
VSL20-1203J-S3	High Flow Type (Rated Supply Pressure: 0.5MPa)	Copper-Free Spec	Ø12	0.15 ~ 0.7MPa	2.0	0.5		174.0	-66.0	Air	R3 / 8	Solenoid Valve Direct Mount Straight	Centralized Exhaust Spec

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

Genuine PISCO product sourced through Korean distribution
Lead time varies by model; most items ship within 2-3 weeks
Ships worldwide from South Korea by FedEx International Priority Express
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
