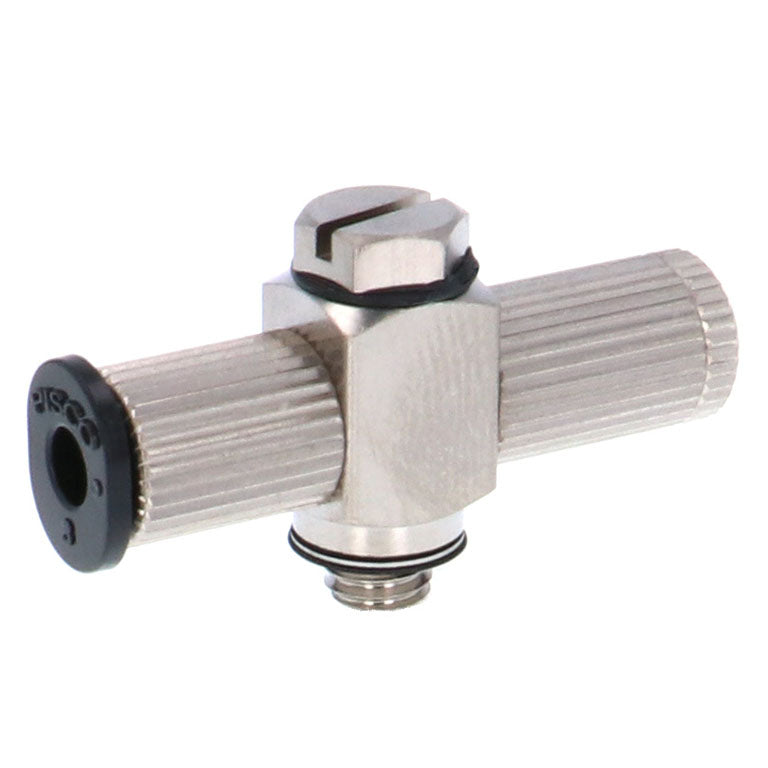

PISCO Vacuum Generator Straight Atmospheric Exhaust

Description

PISCO V — Vacuum Generator Straight Atmospheric Exhaust, genuine PISCO product.

Overview

PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.

Key Features

  • Genuine PISCO vacuum component
  • Select by pad diameter, material and mounting
  • Wide range of buffers and fittings

Specifications

Part No. Operating Temperature Range Shape Suction Flow (L/min) Vacuum Level (kPa) Vacuum Port Size V Air Supply Port Size P Standard Supply Pressure (MPa) Performance Operating Pressure Range Fluid Nozzle Dia. Material (Metal Hood)/Finish
VCH03-M53 0 ~ 60 ℃ Vacuum Pad Direct Mount 2.0 -90.0 M5 × 0.8 Ø3 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.3 Standard Spec
VCH03-M54 0 ~ 60 ℃ Vacuum Pad Direct Mount 2.0 -90.0 M5 × 0.8 Ø4 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.3 Standard Spec
VCH04-M53 0 ~ 60 ℃ Vacuum Pad Direct Mount 4.0 -90.0 M5 × 0.8 Ø3 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.4 Standard Spec
VCH04-M54 0 ~ 60 ℃ Vacuum Pad Direct Mount 4.0 -90.0 M5 × 0.8 Ø4 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.4 Standard Spec
VCH05-M54 0 ~ 60 ℃ Vacuum Pad Direct Mount 7.0 -90.0 M5 × 0.8 Ø4 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.5 Standard Spec
VCH05-M64 0 ~ 60 ℃ Vacuum Pad Direct Mount 7.0 -90.0 M6 × 1 Ø4 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.5 Standard Spec
VCL03-M53 0 ~ 60 ℃ Vacuum Pad Direct Mount 4.0 -66.0 M5 × 0.8 Ø3 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.3 Standard Spec
VCL03-M54 0 ~ 60 ℃ Vacuum Pad Direct Mount 4.0 -66.0 M5 × 0.8 Ø4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.3 Standard Spec
VCL04-M53 0 ~ 60 ℃ Vacuum Pad Direct Mount 7.5 -66.0 M5 × 0.8 Ø3 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.4 Standard Spec
VCL04-M54 0 ~ 60 ℃ Vacuum Pad Direct Mount 7.5 -66.0 M5 × 0.8 Ø4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.4 Standard Spec
VCL05-M54 0 ~ 60 ℃ Vacuum Pad Direct Mount 12.0 -66.0 M5 × 0.8 Ø4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.5 Standard Spec
VCL05-M64 0 ~ 60 ℃ Vacuum Pad Direct Mount 12.0 -66.0 M6 × 1 Ø4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.5 Standard Spec
VSE07-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 10 ~ 10.5 -90 ~ 92 Ø6 R1 / 8 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 0.7 Standard Spec
VSE10-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 21.0 -92.0 Ø6 R1 / 8 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 1.0 Standard Spec
VSE10-801 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 21.0 -92.0 Ø8 R1 / 8 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 1.0 Standard Spec
VSE12-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 27.0 -92.0 Ø6 R1 / 8 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 1.2 Standard Spec
VSE12-801 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 27.0 -92.0 Ø8 R1 / 8 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 1.2 Standard Spec
VSE15-1002 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 42.0 -92.0 Ø10 R1 / 4 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 1.5 Standard Spec
VSE15-802 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 42.0 -92.0 Ø8 R1 / 4 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 1.5 Standard Spec
VSE20-1202 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 82.0 -92.0 Ø12 R1 / 4 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 2.0 Standard Spec
VSE20-1203 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 82.0 -92.0 Ø12 R3 / 8 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 2.0 Standard Spec
VSH05-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 7.0 -90.0 Ø6 R1 / 8 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.5 Standard Spec
VSH07-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 12.5 ~ 13 -92 ~ 93 Ø6 R1 / 8 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.7 Standard Spec
VSH10-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 28.0 -93.0 Ø6 R1 / 8 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.0 Standard Spec
VSH10-801 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 28.0 -93.0 Ø8 R1 / 8 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.0 Standard Spec
VSH12-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 38.0 -93.0 Ø6 R1 / 8 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.2 Standard Spec
VSH12-801 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 38.0 -93.0 Ø8 R1 / 8 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.2 Standard Spec
VSH15-1002 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 63.0 -93.0 Ø10 R1 / 4 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.5 Standard Spec
VSH15-802 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 63.0 -93.0 Ø8 R1 / 4 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.5 Standard Spec
VSH20-1202 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 104.0 -93.0 Ø12 R1 / 4 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 2.0 Standard Spec
VSH20-1203 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 104.0 -93.0 Ø12 R3 / 8 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 2.0 Standard Spec
VSL05-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 12.0 -66.0 Ø6 R1 / 8 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.5 Standard Spec
VSL07-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 22 ~ 26 -66.0 Ø6 R1 / 8 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.7 Standard Spec
VSL07-801 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 22 ~ 26 -66.0 Ø8 R1 / 8 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.7 Standard Spec
VSL10-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 42.0 -66.0 Ø6 R1 / 8 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.0 Standard Spec
VSL10-801 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 42.0 -66.0 Ø8 R1 / 8 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.0 Standard Spec
VSL15-1002 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 95.0 -66.0 Ø10 R1 / 4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.5 Standard Spec
VSL15-1202 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 95.0 -66.0 Ø12 R1 / 4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.5 Standard Spec
VSL15-802 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 95.0 -66.0 Ø8 R1 / 4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.5 Standard Spec
VSL20-1202 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 174.0 -66.0 Ø12 R1 / 4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 2.0 Standard Spec
VSL20-1203 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 174.0 -66.0 Ø12 R3 / 8 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 2.0 Standard Spec

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

PISCO V — Vacuum Generator Straight Atmospheric Exhaust, genuine PISCO product.OverviewPISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories... Read more

SKU: VCH03-M53

$17.68 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    PISCO V — Vacuum Generator Straight Atmospheric Exhaust, genuine PISCO product.

    Overview

    PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.

    Key Features

    • Genuine PISCO vacuum component
    • Select by pad diameter, material and mounting
    • Wide range of buffers and fittings

    Specifications

    Part No. Operating Temperature Range Shape Suction Flow (L/min) Vacuum Level (kPa) Vacuum Port Size V Air Supply Port Size P Standard Supply Pressure (MPa) Performance Operating Pressure Range Fluid Nozzle Dia. Material (Metal Hood)/Finish
    VCH03-M53 0 ~ 60 ℃ Vacuum Pad Direct Mount 2.0 -90.0 M5 × 0.8 Ø3 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.3 Standard Spec
    VCH03-M54 0 ~ 60 ℃ Vacuum Pad Direct Mount 2.0 -90.0 M5 × 0.8 Ø4 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.3 Standard Spec
    VCH04-M53 0 ~ 60 ℃ Vacuum Pad Direct Mount 4.0 -90.0 M5 × 0.8 Ø3 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.4 Standard Spec
    VCH04-M54 0 ~ 60 ℃ Vacuum Pad Direct Mount 4.0 -90.0 M5 × 0.8 Ø4 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.4 Standard Spec
    VCH05-M54 0 ~ 60 ℃ Vacuum Pad Direct Mount 7.0 -90.0 M5 × 0.8 Ø4 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.5 Standard Spec
    VCH05-M64 0 ~ 60 ℃ Vacuum Pad Direct Mount 7.0 -90.0 M6 × 1 Ø4 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.5 Standard Spec
    VCL03-M53 0 ~ 60 ℃ Vacuum Pad Direct Mount 4.0 -66.0 M5 × 0.8 Ø3 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.3 Standard Spec
    VCL03-M54 0 ~ 60 ℃ Vacuum Pad Direct Mount 4.0 -66.0 M5 × 0.8 Ø4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.3 Standard Spec
    VCL04-M53 0 ~ 60 ℃ Vacuum Pad Direct Mount 7.5 -66.0 M5 × 0.8 Ø3 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.4 Standard Spec
    VCL04-M54 0 ~ 60 ℃ Vacuum Pad Direct Mount 7.5 -66.0 M5 × 0.8 Ø4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.4 Standard Spec
    VCL05-M54 0 ~ 60 ℃ Vacuum Pad Direct Mount 12.0 -66.0 M5 × 0.8 Ø4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.5 Standard Spec
    VCL05-M64 0 ~ 60 ℃ Vacuum Pad Direct Mount 12.0 -66.0 M6 × 1 Ø4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.5 Standard Spec
    VSE07-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 10 ~ 10.5 -90 ~ 92 Ø6 R1 / 8 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 0.7 Standard Spec
    VSE10-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 21.0 -92.0 Ø6 R1 / 8 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 1.0 Standard Spec
    VSE10-801 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 21.0 -92.0 Ø8 R1 / 8 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 1.0 Standard Spec
    VSE12-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 27.0 -92.0 Ø6 R1 / 8 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 1.2 Standard Spec
    VSE12-801 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 27.0 -92.0 Ø8 R1 / 8 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 1.2 Standard Spec
    VSE15-1002 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 42.0 -92.0 Ø10 R1 / 4 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 1.5 Standard Spec
    VSE15-802 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 42.0 -92.0 Ø8 R1 / 4 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 1.5 Standard Spec
    VSE20-1202 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 82.0 -92.0 Ø12 R1 / 4 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 2.0 Standard Spec
    VSE20-1203 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 82.0 -92.0 Ø12 R3 / 8 0.35 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.15 ~ 0.7MPa Air 2.0 Standard Spec
    VSH05-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 7.0 -90.0 Ø6 R1 / 8 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.5 Standard Spec
    VSH07-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 12.5 ~ 13 -92 ~ 93 Ø6 R1 / 8 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.7 Standard Spec
    VSH10-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 28.0 -93.0 Ø6 R1 / 8 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.0 Standard Spec
    VSH10-801 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 28.0 -93.0 Ø8 R1 / 8 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.0 Standard Spec
    VSH12-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 38.0 -93.0 Ø6 R1 / 8 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.2 Standard Spec
    VSH12-801 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 38.0 -93.0 Ø8 R1 / 8 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.2 Standard Spec
    VSH15-1002 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 63.0 -93.0 Ø10 R1 / 4 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.5 Standard Spec
    VSH15-802 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 63.0 -93.0 Ø8 R1 / 4 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.5 Standard Spec
    VSH20-1202 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 104.0 -93.0 Ø12 R1 / 4 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 2.0 Standard Spec
    VSH20-1203 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 104.0 -93.0 Ø12 R3 / 8 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 2.0 Standard Spec
    VSL05-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 12.0 -66.0 Ø6 R1 / 8 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.5 Standard Spec
    VSL07-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 22 ~ 26 -66.0 Ø6 R1 / 8 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.7 Standard Spec
    VSL07-801 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 22 ~ 26 -66.0 Ø8 R1 / 8 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 0.7 Standard Spec
    VSL10-601 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 42.0 -66.0 Ø6 R1 / 8 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.0 Standard Spec
    VSL10-801 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 42.0 -66.0 Ø8 R1 / 8 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.0 Standard Spec
    VSL15-1002 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 95.0 -66.0 Ø10 R1 / 4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.5 Standard Spec
    VSL15-1202 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 95.0 -66.0 Ø12 R1 / 4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.5 Standard Spec
    VSL15-802 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 95.0 -66.0 Ø8 R1 / 4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 1.5 Standard Spec
    VSL20-1202 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 174.0 -66.0 Ø12 R1 / 4 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 2.0 Standard Spec
    VSL20-1203 0 ~ 60 ℃ Solenoid Valve Direct Mount Straight 174.0 -66.0 Ø12 R3 / 8 0.5 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.15 ~ 0.7MPa Air 2.0 Standard Spec

    How to Order

    Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

    About PISCO

    PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

    Ordering & Shipping

    • Genuine PISCO product sourced through Korean distribution
    • Lead time varies by model; most items ship within 2-3 weeks
    • Ships worldwide from South Korea by FedEx International Priority Express
    • Import duties and taxes are payable by the recipient
    • Bulk and trade pricing available on request
