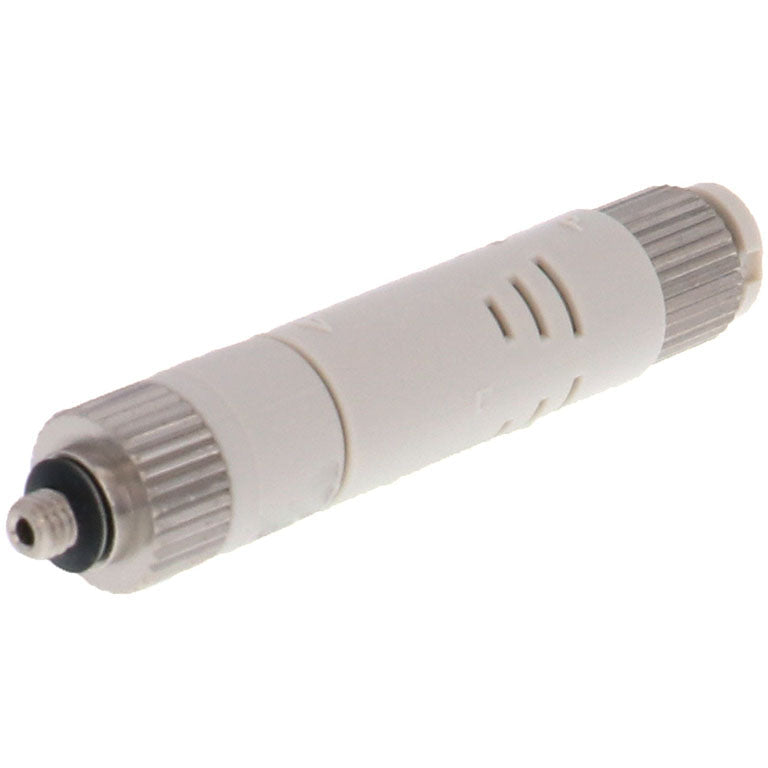

PISCO Vacuum Generator Straight Atmospheric Exhaust (VUM)

Description

PISCO VUM — Vacuum Generator Straight Atmospheric Exhaust (VUM), genuine PISCO product.

Overview

PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.

Key Features

  • Genuine PISCO vacuum component
  • Select by pad diameter, material and mounting
  • Wide range of buffers and fittings

Specifications

Part No. Operating Pressure Range Shape Standard Supply Pressure (MPa) Vacuum Level (kPa) Vacuum Port Size V Air Supply Port Size P Operating Temperature Range Suction Flow (L/min) Performance Nozzle Dia. Material (Metal Hood)/Finish Fluid
VUME03-M33 0.15 ~ 0.7MPa Compact Tubular 0.35 -88.0 M3 × 0.5 Ø3 0 ~ 60 ℃ 1.0 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.3 Standard Spec Air
VUME03-M34 0.15 ~ 0.7MPa Compact Tubular 0.35 -88.0 M3 × 0.5 Ø4 0 ~ 60 ℃ 1.0 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.3 Standard Spec Air
VUME03-M53 0.15 ~ 0.7MPa Compact Tubular 0.35 -88.0 M5 × 0.8 Ø3 0 ~ 60 ℃ 1.0 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.3 Standard Spec Air
VUME03-M54 0.15 ~ 0.7MPa Compact Tubular 0.35 -88.0 M5 × 0.8 Ø4 0 ~ 60 ℃ 1.0 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.3 Standard Spec Air
VUME04-M33 0.15 ~ 0.7MPa Compact Tubular 0.35 -90.0 M3 × 0.5 Ø3 0 ~ 60 ℃ 2.0 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.4 Standard Spec Air
VUME04-M34 0.15 ~ 0.7MPa Compact Tubular 0.35 -90.0 M3 × 0.5 Ø4 0 ~ 60 ℃ 2.0 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.4 Standard Spec Air
VUME04-M53 0.15 ~ 0.7MPa Compact Tubular 0.35 -90.0 M5 × 0.8 Ø3 0 ~ 60 ℃ 2.0 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.4 Standard Spec Air
VUME04-M54 0.15 ~ 0.7MPa Compact Tubular 0.35 -90.0 M5 × 0.8 Ø4 0 ~ 60 ℃ 2.0 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.4 Standard Spec Air
VUME05-M33 0.15 ~ 0.7MPa Compact Tubular 0.35 -90.0 M3 × 0.5 Ø3 0 ~ 60 ℃ 3.0 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.5 Standard Spec Air
VUME05-M34 0.15 ~ 0.7MPa Compact Tubular 0.35 -90.0 M3 × 0.5 Ø4 0 ~ 60 ℃ 3.0 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.5 Standard Spec Air
VUME05-M53 0.15 ~ 0.7MPa Compact Tubular 0.35 -90.0 M5 × 0.8 Ø3 0 ~ 60 ℃ 3.0 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.5 Standard Spec Air
VUME05-M54 0.15 ~ 0.7MPa Compact Tubular 0.35 -90.0 M5 × 0.8 Ø4 0 ~ 60 ℃ 3.0 Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0.5 Standard Spec Air
VUMH03-M33 0.15 ~ 0.7MPa Compact Tubular 0.5 -90.0 M3 × 0.5 Ø3 0 ~ 60 ℃ 2.0 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.3 Standard Spec Air
VUMH03-M34 0.15 ~ 0.7MPa Compact Tubular 0.5 -90.0 M3 × 0.5 Ø4 0 ~ 60 ℃ 2.0 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.3 Standard Spec Air
VUMH03-M53 0.15 ~ 0.7MPa Compact Tubular 0.5 -90.0 M5 × 0.8 Ø3 0 ~ 60 ℃ 2.0 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.3 Standard Spec Air
VUMH03-M54 0.15 ~ 0.7MPa Compact Tubular 0.5 -90.0 M5 × 0.8 Ø4 0 ~ 60 ℃ 2.0 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.3 Standard Spec Air
VUMH04-M33 0.15 ~ 0.7MPa Compact Tubular 0.5 -90.0 M3 × 0.5 Ø3 0 ~ 60 ℃ 4.0 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.4 Standard Spec Air
VUMH04-M34 0.15 ~ 0.7MPa Compact Tubular 0.5 -90.0 M3 × 0.5 Ø4 0 ~ 60 ℃ 4.0 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.4 Standard Spec Air
VUMH04-M53 0.15 ~ 0.7MPa Compact Tubular 0.5 -90.0 M5 × 0.8 Ø3 0 ~ 60 ℃ 4.0 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.4 Standard Spec Air
VUMH04-M54 0.15 ~ 0.7MPa Compact Tubular 0.5 -90.0 M5 × 0.8 Ø4 0 ~ 60 ℃ 4.0 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.4 Standard Spec Air
VUMH05-M33 0.15 ~ 0.7MPa Compact Tubular 0.5 -90.0 M3 × 0.5 Ø3 0 ~ 60 ℃ 7.0 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.5 Standard Spec Air
VUMH05-M34 0.15 ~ 0.7MPa Compact Tubular 0.5 -90.0 M3 × 0.5 Ø4 0 ~ 60 ℃ 7.0 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.5 Standard Spec Air
VUMH05-M53 0.15 ~ 0.7MPa Compact Tubular 0.5 -90.0 M5 × 0.8 Ø3 0 ~ 60 ℃ 7.0 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.5 Standard Spec Air
VUMH05-M54 0.15 ~ 0.7MPa Compact Tubular 0.5 -90.0 M5 × 0.8 Ø4 0 ~ 60 ℃ 7.0 High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0.5 Standard Spec Air
VUML03-M33 0.15 ~ 0.7MPa Compact Tubular 0.5 -66.0 M3 × 0.5 Ø3 0 ~ 60 ℃ 4.0 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.3 Standard Spec Air
VUML03-M34 0.15 ~ 0.7MPa Compact Tubular 0.5 -66.0 M3 × 0.5 Ø4 0 ~ 60 ℃ 4.0 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.3 Standard Spec Air
VUML03-M53 0.15 ~ 0.7MPa Compact Tubular 0.5 -66.0 M5 × 0.8 Ø3 0 ~ 60 ℃ 4.0 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.3 Standard Spec Air
VUML03-M54 0.15 ~ 0.7MPa Compact Tubular 0.5 -66.0 M5 × 0.8 Ø4 0 ~ 60 ℃ 4.0 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.3 Standard Spec Air
VUML04-M33 0.15 ~ 0.7MPa Compact Tubular 0.5 -66.0 M3 × 0.5 Ø3 0 ~ 60 ℃ 7.0 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.4 Standard Spec Air
VUML04-M34 0.15 ~ 0.7MPa Compact Tubular 0.5 -66.0 M3 × 0.5 Ø4 0 ~ 60 ℃ 7.0 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.4 Standard Spec Air
VUML04-M53 0.15 ~ 0.7MPa Compact Tubular 0.5 -66.0 M5 × 0.8 Ø3 0 ~ 60 ℃ 7.0 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.4 Standard Spec Air
VUML04-M54 0.15 ~ 0.7MPa Compact Tubular 0.5 -66.0 M5 × 0.8 Ø4 0 ~ 60 ℃ 7.0 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.4 Standard Spec Air
VUML05-M33 0.15 ~ 0.7MPa Compact Tubular 0.5 -66.0 M3 × 0.5 Ø3 0 ~ 60 ℃ 12.0 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.5 Standard Spec Air
VUML05-M34 0.15 ~ 0.7MPa Compact Tubular 0.5 -66.0 M3 × 0.5 Ø4 0 ~ 60 ℃ 12.0 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.5 Standard Spec Air
VUML05-M53 0.15 ~ 0.7MPa Compact Tubular 0.5 -66.0 M5 × 0.8 Ø3 0 ~ 60 ℃ 12.0 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.5 Standard Spec Air
VUML05-M54 0.15 ~ 0.7MPa Compact Tubular 0.5 -66.0 M5 × 0.8 Ø4 0 ~ 60 ℃ 12.0 High Flow Type (Rated Supply Pressure: 0.5MPa) 0.5 Standard Spec Air

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
