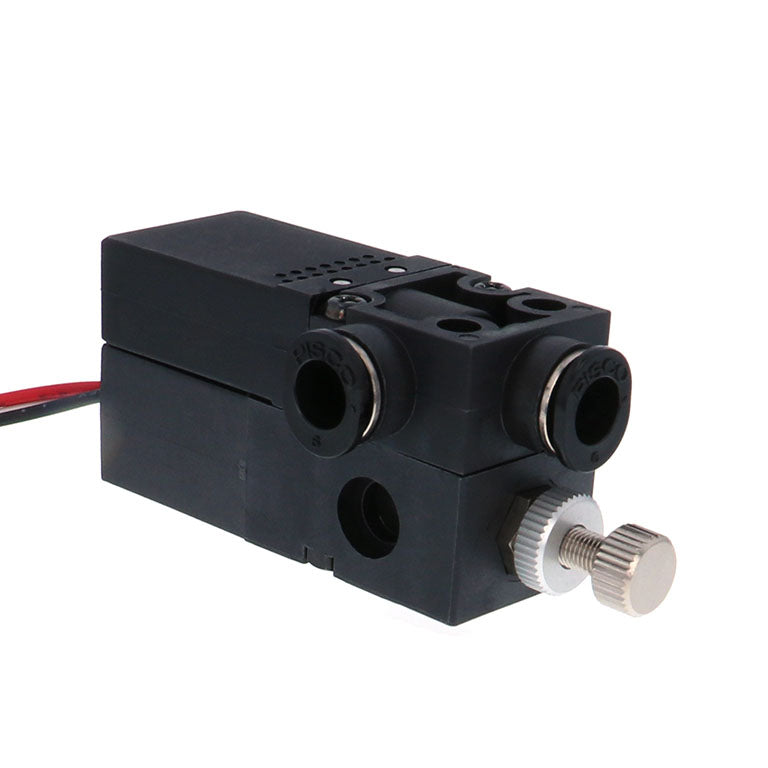

PISCO Vacuum Generator Union with Built-in Vacuum Switch Atmospheric Exhaust

Description

PISCO VB — Vacuum Generator Union with Built-in Vacuum Switch Atmospheric Exhaust, genuine PISCO product.

Overview

PISCO vacuum pads, pad holders, vacuum ejectors and vacuum accessories for pick-and-place handling.

Key Features

  • Genuine PISCO vacuum component
  • Select by pad diameter, material and mounting
  • Wide range of buffers and fittings

Specifications

Part No. Detection Method Shape Vacuum Port Size V Operating Pressure Range Accuracy Air Supply Port Size P Suction Flow (L/min) Nozzle Dia. Fluid Vacuum Level (kPa) Standard Supply Pressure (MPa) Material (Metal Hood)/Finish Electrical Rating Performance Operating Temperature Range Set Pressure (kPa) Hysteresis Pressure Setting Range (kPa)
VBE07-66S Square Ø6 ± 5kPa Ø6 0.7 0.35 Copper-Free Spec 3A250V 0 ~ 60 ℃ Factory Setting / -53kPa 22kPa -20 ~ -66
VBE10-66S Diaphragm - Micro Switch Square 0.15 ~ 0.7MPa Ø6 Air -92.0 Copper-Free Spec 3A250V Low Supply Pressure High Vacuum Type (Rated Supply Pressure: 0.35Mpa) 0 ~ 60 ℃ 22kPa -20 ~ -66
VBE12-66S Diaphragm - Micro Switch Square Ø6 0.15 ~ 0.7MPa Ø6 27.0 1.2 0.35 Copper-Free Spec 3A250V 22kPa -20 ~ -66
VBH05-44S Ø4 ± 5kPa Ø4 Air 0.5 Copper-Free Spec High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0 ~ 60 ℃ Factory Setting / -53kPa 22kPa -20 ~ -66
VBH07-66S Square 0.15 ~ 0.7MPa ± 5kPa 12.5 ~ 13 0.7 Air -92 ~ 93 0.5 Copper-Free Spec High Vacuum Type (Rated Supply Pressure: 0.5MPa) 0 ~ 60 ℃ Factory Setting / -53kPa
VBH10-66S Diaphragm - Micro Switch Square 0.15 ~ 0.7MPa Ø6 28.0 -93.0 0.5 High Vacuum Type (Rated Supply Pressure: 0.5MPa) Factory Setting / -53kPa 22kPa -20 ~ -66
VBH12-66S Diaphragm - Micro Switch Ø6 0.15 ~ 0.7MPa 1.2 Air -93.0 0.5 Copper-Free Spec 3A250V 0 ~ 60 ℃ Factory Setting / -53kPa 22kPa
VBL05-44S Diaphragm - Micro Switch Ø4 0.15 ~ 0.7MPa 0.5 Air -66.0 0.5 Copper-Free Spec 3A250V High Flow Type (Rated Supply Pressure: 0.5MPa) Factory Setting / -53kPa 22kPa
VBL07-66S Diaphragm - Micro Switch Ø6 0.15 ~ 0.7MPa ± 5kPa 22 ~ 26 0.7 -66.0 Copper-Free Spec High Flow Type (Rated Supply Pressure: 0.5MPa) 0 ~ 60 ℃ Factory Setting / -53kPa 22kPa
VBL10-66S Ø6 0.15 ~ 0.7MPa Ø6 1.0 Air -66.0 0.5 Copper-Free Spec 3A250V 0 ~ 60 ℃ 22kPa -20 ~ -66

How to Order

Select the exact part number from the options. PISCO part numbers encode color, contacts, LED voltage, terminal type and options, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.

About PISCO

PISCO (Nihon Pisco) is a Japanese manufacturer of pneumatic components, including push-to-connect fittings, tubing, speed controllers, vacuum pads and ejectors used in factory automation worldwide.

Ordering & Shipping

  • Genuine PISCO product sourced through Korean distribution
  • Lead time varies by model; most items ship within 2-3 weeks
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
