Description

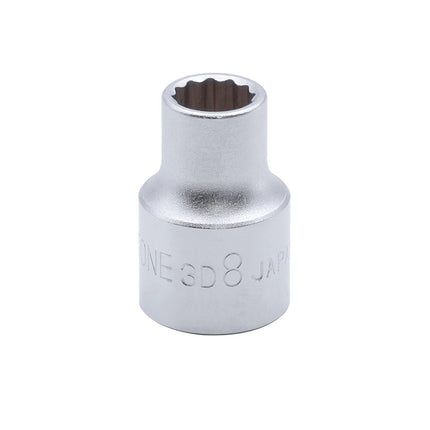

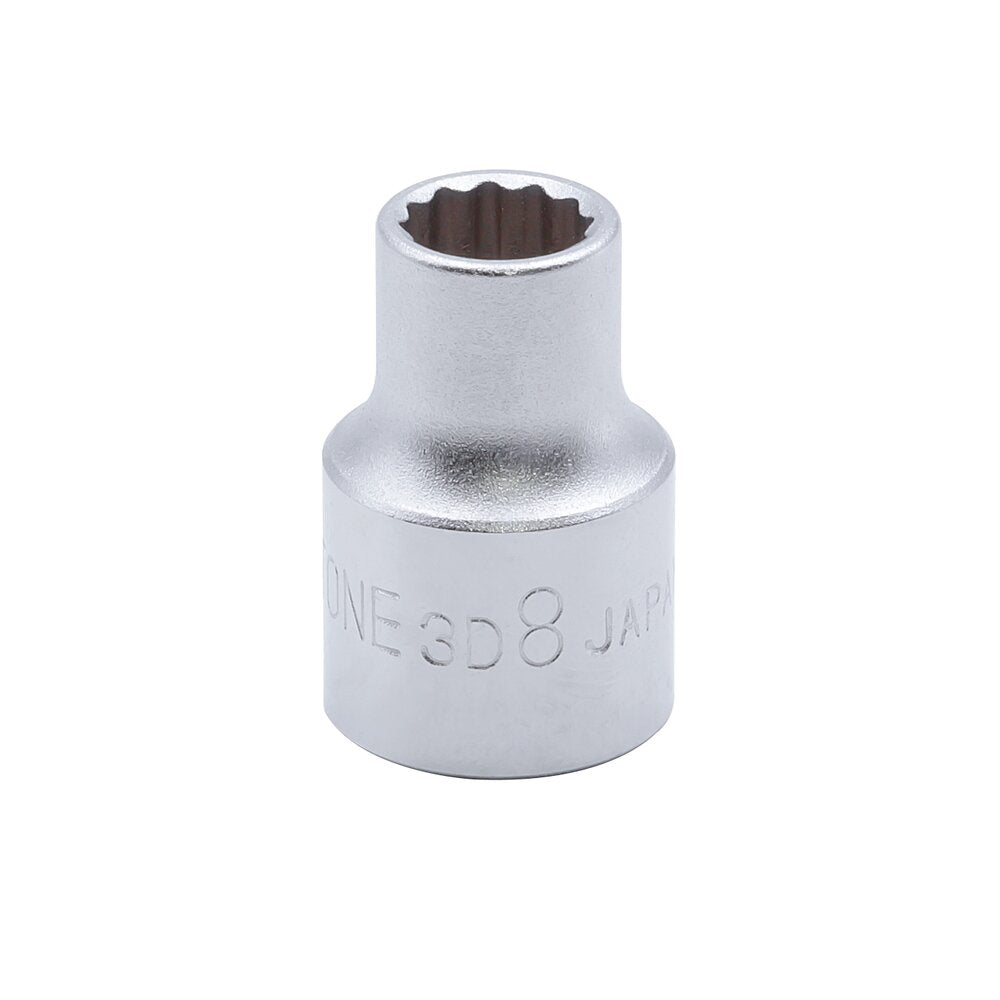

TONE HP — Socket, genuine TONE product.
Overview
TONE hand sockets, ratchets, extension bars, adapters and handles for professional mechanics and industrial maintenance.
Key Features
- Genuine TONE socket tool from Japan
- Precision fit reduces fastener rounding
- Select by drive size and size across flats
Specifications
| Part No. |
Weight (g) |
Dimension l (mm) |
Drive Size (mm) |
Dimension d |
L1(mm) |
D1(mm) |
Dimension D2 (mm) |
Retail Box Dimensions (mm) |
Across Flats S (mm) |
Socket Shape |
| HP3D-08 |
20 |
26 |
9.5 |
7.0 |
6 |
11.7 |
17 |
HP3D-08 |
8 |
12-point |
| HP3D-10 |
25 |
26 |
9.5 |
8.0 |
7 |
14.7 |
17 |
HP3D-10 |
10 |
12-point |
| HP3D-12 |
30 |
26 |
9.5 |
10.0 |
8 |
17.0 |
18 |
HP3D-12 |
12 |
12-point |
| HP3D-13 |
35 |
27 |
9.5 |
10.0 |
9 |
18.5 |
18 |
HP3D-13 |
13 |
12-point |
| HP3D-14 |
40 |
27 |
9.5 |
11.0 |
9 |
19.5 |
18 |
HP3D-14 |
14 |
12-point |
| HP3D-15 |
50 |
29 |
9.5 |
11.0 |
10 |
21 |
18 |
HP3D-15 |
15 |
12-point |
| HP3D-16 |
50 |
29 |
9.5 |
14.0 |
10 |
22 |
19 |
HP3D-16 |
16 |
12-point |
| HP3D-17 |
70 |
30 |
9.5 |
14.0 |
11 |
23 |
19 |
HP3D-17 |
17 |
12-point |
| HP3D-18 |
60 |
32 |
9.5 |
15.0 |
12 |
24.5 |
21 |
HP3D-18 |
18 |
12-point |
| HP3D-19 |
70 |
32 |
9.5 |
16.0 |
13 |
26 |
21 |
HP3D-19 |
19 |
12-point |
| HP3D-21 |
75 |
32 |
9.5 |
18.0 |
13 |
28 |
22.5 |
HP3D-21 |
21 |
12-point |
| HP3D-22 |
95 |
33 |
9.5 |
18.0 |
14 |
30 |
23.5 |
HP3D-22 |
22 |
12-point |
| HP3D-24 |
110 |
34 |
9.5 |
20.0 |
15 |
32 |
25.5 |
HP3D-24 |
24 |
12-point |
| HP3S-06 |
20 |
26 |
9.5 |
4.5 |
5 |
9.3 |
17 |
|
6 |
6-point |
| HP3S-07 |
20 |
26 |
9.5 |
5.0 |
5 |
10.7 |
17 |
|
7 |
6-point |
| HP3S-08 |
20 |
26 |
9.5 |
7.0 |
6 |
11.7 |
17 |
|
8 |
6-point |
| HP3S-09 |
25 |
26 |
9.5 |
7.0 |
6 |
13.2 |
17 |
|
9 |
6-point |
| HP3S-10 |
30 |
26 |
9.5 |
8.0 |
7 |
14.7 |
17 |
|
10 |
6-point |
| HP3S-12 |
35 |
26 |
9.5 |
10.0 |
8 |
17.0 |
18 |
|
12 |
6-point |
| HP3S-5.5 |
20 |
26 |
9.5 |
4.0 |
4 |
8.8 |
17 |
|
5.5 |
6-point |
| HP4D-10 |
40 |
35 |
12.7 |
8 |
10 |
15.0 |
22 |
|
10 |
12-point |
| HP4D-12 |
50 |
35 |
12.7 |
10 |
10 |
17.5 |
22 |
|
12 |
12-point |
| HP4D-13 |
50 |
35 |
12.7 |
11 |
10 |
18.8 |
22 |
|
13 |
12-point |
| HP4D-14 |
50 |
35 |
12.7 |
12 |
12 |
20.0 |
22 |
|
14 |
12-point |
| HP4D-15 |
55 |
35 |
12.7 |
12 |
12 |
22 |
21.5 |
|
15 |
12-point |
| HP4D-17 |
65 |
37 |
12.7 |
14 |
13 |
24 |
23.0 |
|
17 |
12-point |
| HP4D-21 |
90 |
39 |
12.7 |
18 |
15 |
29 |
25.0 |
|
21 |
12-point |
| HP4D-22 |
105 |
40 |
12.7 |
18 |
15 |
30 |
26.0 |
|
22 |
12-point |
| HP4D-23 |
130 |
41 |
12.7 |
20 |
16 |
32 |
27.0 |
|
23 |
12-point |
| HP4D-24 |
130 |
41 |
12.7 |
20 |
17 |
33 |
28.0 |
|
24 |
12-point |
| HP4D-26 |
135 |
43.5 |
12.7 |
22 |
19 |
35 |
28.0 |
|
26 |
12-point |
| HP4D-27 |
145 |
43.5 |
12.7 |
22 |
19 |
36 |
29.0 |
|
27 |
12-point |
| HP4D-30 |
200 |
47 |
12.7 |
25 |
21 |
40 |
32.0 |
|
30 |
12-point |
| HP4D-32 |
250 |
47 |
12.7 |
25 |
21 |
43 |
34.5 |
|
32 |
12-point |
| HP4D-33 |
250 |
47 |
12.7 |
25 |
21 |
44 |
35.5 |
|
33 |
12-point |
| HP4D-36 |
310 |
52 |
12.7 |
30 |
24 |
48 |
38.0 |
|
36 |
12-point |
| HP4S-10 |
50 |
35 |
12.7 |
8 |
10 |
15.0 |
22 |
|
10 |
6-point |
| HP4S-12 |
55 |
35 |
12.7 |
10 |
10 |
17.5 |
22 |
|
12 |
6-point |
| HP6D-24 |
200 |
52 |
19.0 |
20 |
17.0 |
34.0 |
34 |
|
24 |
12-point |
| HP6D-27 |
245 |
53 |
19.0 |
22 |
19.0 |
38 |
36.0 |
|
27 |
12-point |
| HP6D-30 |
310 |
56 |
19.0 |
25 |
21.0 |
42 |
39.0 |
|
30 |
12-point |
| HP6D-32 |
345 |
56 |
19.0 |
25 |
21.0 |
44 |
40.0 |
|
32 |
12-point |
| HP6D-36 |
420 |
58 |
19.0 |
30 |
24.0 |
50 |
40.0 |
|
36 |
12-point |
| HP6D-41 |
525 |
63 |
19.0 |
35 |
27.0 |
55.5 |
44.0 |
|
41 |
12-point |
| HP6D-46 |
580 |
65 |
19.0 |
35 |
30.0 |
62 |
45.0 |
|
46 |
12-point |
| HP6D-50 |
830 |
70 |
19.0 |
38 |
32.0 |
67.5 |
48.0 |
|
50 |
12-point |
How to Order
Select the exact part number from the options. TONE part numbers encode drive size, size and type, so please check every character against your existing part or drawing. Contact us if you need help identifying a replacement.
About TONE
TONE Co., Ltd. is a Japanese manufacturer of professional hand tools founded in 1938 in Osaka, known for sockets, ratchets, torque wrenches, impact tools and tool sets used by mechanics and industrial maintenance teams worldwide.
Ordering & Shipping
- Genuine TONE product sourced through Korean distribution
- Lead time varies by model; most items ship within 1-2 weeks
- Ships worldwide from South Korea by FedEx International Priority Express
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
