TSUBAKI Power Cylinder, LPTC (Part 1)

Description

TSUBAKI LPTC — Power Cylinder, genuine TSUBAKI product.

Overview

The TSUBAKI Power Cylinder is an electric linear actuator that uses a motor-driven screw to produce push and pull motion. It replaces hydraulic or pneumatic cylinders where clean, controllable operation is preferred. It is used in gate and damper operation, lifting, tilting and positioning equipment in industrial plants.

Key Features

  • Electric motor-driven linear motion
  • No hydraulic or pneumatic supply needed
  • Holds position when stopped

Specifications

Part No. Stroke (mm) Type Motor Capacity (kW) Max. Speed (min-1r.p.m) Normal Torque (N·m) Holding Torque (N.m) Speed Code Allowable Torque (N.m) Rated Thrust (N)
LPTC1000BR2 200 TC type 4.74 4900
LPTC1000BR4 400 TC type 4.74 9800
LPTC1000BR6 600 TC type 4.74 9.8
LPTC1000BR8 800 TC type 4.74
LPTC1000H10 1000 TC type 1.5 14.7 H 7.84k
LPTC1000H2 200 TC type 1.5 H
LPTC1000H3 300 TC type 1.5 H
LPTC1000H4 400 TC type 1.5 H
LPTC1000H5 500 TC type 1.5 H
LPTC1000H6 600 TC type 1.5 H
LPTC1000H8 800 TC type 1.5 H
LPTC1000L10 1000 TC type 0.4 L
LPTC1000L2 200 TC type 0.4 L 9.8k
LPTC1000L3 300 TC type 0.4 L 9.8K
LPTC1000L4 400 TC type 0.4 L 9.8K
LPTC1000L5 500 TC type 0.4 L 9.8k
LPTC1000L6 600 TC type 0.4 L 9.8k
LPTC1000L8 800 TC type 0.4 L
LPTC1000M10 1000 TC type 0.75 M
LPTC1000M2 200 TC type 0.75 M 9.8k
LPTC1000M3 300 TC type 0.75 M
LPTC1000M4 400 TC type 0.75 M
LPTC1000M5 500 TC type 0.75 M
LPTC1000M6 600 TC type 0.75 M
LPTC1000M8 800 TC type 0.75 M
LPTC1000S10 1000 TC type 0.2 S
LPTC1000S2 200 TC type 0.2 14.7 S
LPTC1000S3 300 TC type 0.2 S 9.8k
LPTC1000S4 400 TC type 0.2 S 9.8k
LPTC1000S5 500 TC type 0.2 S
LPTC1000S6 600 TC type 0.2 S
LPTC1000S8 800 TC type 0.2 S
LPTC2000BR2 200 TC type 11.9 9.8
LPTC2000BR4 400 TC type 11.9 19.6k
LPTC2000BR6 600 TC type 11.9
LPTC2000BR8 800 TC type 11.9
LPTC2000H10 1000 TC type 2.2 H 15.7k
LPTC2000H12 1200 TC type 2.2 H 12.3k
LPTC2000H2 200 TC type 2.2 H
LPTC2000H3 300 TC type 2.2 H
LPTC2000H4 400 TC type 2.2 H
LPTC2000H5 500 TC type 2.2 H 19.6k
LPTC2000H6 600 TC type 2.2 H 19.6k
LPTC2000H8 800 TC type 2.2 H 19.6k
LPTC2000L10 1000 TC type 0.75 L
LPTC2000L12 1200 TC type 0.75 L
LPTC2000L2 200 TC type 0.75 L
LPTC2000L3 300 TC type 0.75 L
LPTC2000L4 400 TC type 0.75 L
LPTC2000L5 500 TC type 0.75 L
LPTC2000L6 600 TC type 0.75 L
LPTC2000L8 800 TC type 0.75 L
LPTC2000M10 1000 TC type 1.5 M 15.7k
LPTC2000M12 1200 TC type 1.5 35.3 M
LPTC2000M2 200 TC type 1.5 M
LPTC2000M3 300 TC type 1.5 M
LPTC2000M4 400 TC type 1.5 M
LPTC2000M5 500 TC type 1.5 M
LPTC2000M6 600 TC type 1.5 M
LPTC2000M8 800 TC type 1.5 M
LPTC2000S10 1000 TC type 0.4 S
LPTC2000S12 1200 TC type 0.4 S 12.3k
LPTC2000S2 200 TC type 0.4 S
LPTC2000S3 300 TC type 0.4 S
LPTC2000S4 400 TC type 0.4 S
LPTC2000S5 500 TC type 0.4 S
LPTC2000S6 600 TC type 0.4 S
LPTC2000S8 800 TC type 0.4 S
LPTC250H2 200 TC type 0.4 H 2450
LPTC250H3 300 TC type 0.4 H 2450
LPTC250H4 400 TC type 0.4 H 2450
LPTC250H5 500 TC type 0.4 H 2.45k
LPTC250H6 600 TC type 0.4 H 2.45k
LPTC250L2 200 TC type 0.1 L 2450
LPTC250L3 300 TC type 0.1 L 2450
LPTC250L4 400 TC type 0.1 L 2450
LPTC250L5 500 TC type 0.1 L 2450
LPTC250L6 600 TC type 0.1 L 2450
LPTC250M2 200 TC type 0.2 M 2450
LPTC250M3 300 TC type 0.2 M 2.45K
LPTC250M4 400 TC type 0.2 M 2.45K
LPTC250M5 500 TC type 0.2 M 2450
LPTC250M6 600 TC type 0.2 M 2450
LPTC250S2 200 TC type 0.1 S 2450
LPTC250S3 300 TC type 0.1 S 2.45k
LPTC250S4 400 TC type 0.1 S 2.45k
LPTC250S5 500 TC type 0.1 S 2450
LPTC250S6 600 TC type 0.1 S 2450
LPTC4000BR10 1000 TC type 420 28.4 176 39.2k
LPTC4000BR12 1200 TC type 28.4 39.2k
LPTC4000BR2 200 TC type 28.4
LPTC4000BR4 400 TC type 28.4
LPTC4000BR6 600 TC type 28.4
LPTC4000BR8 800 TC type 28.4
LPTC4000H10 1000 TC type 3.7 H 39.2k
LPTC4000H12 1200 TC type 3.7 H 39.2k
LPTC4000H15 1500 TC type 3.7 H 33.3k
LPTC4000H2 200 TC type 3.7 H 39.2k
LPTC4000H3 300 TC type 3.7 83.3 H
LPTC4000H4 400 TC type 3.7 83.3 H

How to Order

Confirm the thrust, stroke, speed and mounting style. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

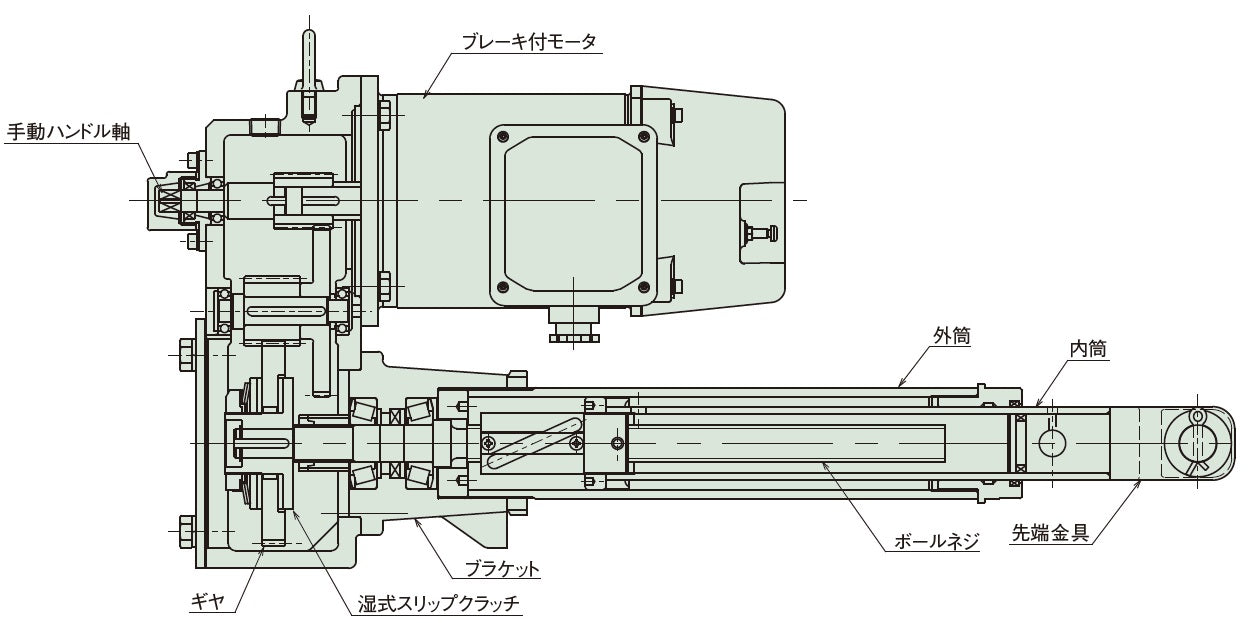

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

  • Genuine TSUBAKI product sourced through Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Lead time varies by model; please inquire for exact delivery
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
  • High-value or heavy item: online checkout is disabled. Please request a quote for freight and pricing.
