Name: TSUBAKI Power Cylinder, LPGC (Part 1)
Brand: TSUBAKI
SKU: LPGC070HK1
Price: 2713.15 USD

TSUBAKI Power Cylinder, LPGC (Part 1)

VendorTSUBAKI

Description

TSUBAKI LPGC — Power Cylinder, genuine TSUBAKI product.

Overview

The TSUBAKI Power Cylinder is an electric linear actuator that uses a motor-driven screw to produce push and pull motion. It replaces hydraulic or pneumatic cylinders where clean, controllable operation is preferred. It is used in gate and damper operation, lifting, tilting and positioning equipment in industrial plants.

Key Features

Electric motor-driven linear motion
No hydraulic or pneumatic supply needed
Holds position when stopped

Specifications

Part No.	Stroke (mm)	Type	Body Shape	Motor Capacity (kW)	Normal Torque (N·m)	Speed Code	Rated Thrust (N)
LPGC070HK1	100	With thrust detection mechanism	Parallel	0.2		H	700
LPGC070HK10	1000	With thrust detection mechanism	Parallel	0.2		H	700
LPGC070HK12	1200	With thrust detection mechanism	Parallel	0.2		H	700
LPGC070HK2	200	With thrust detection mechanism	Parallel	0.2		H	700
LPGC070HK3	300	With thrust detection mechanism	Parallel	0.2		H	700
LPGC070HK4	400	With thrust detection mechanism	Parallel	0.2		H	700
LPGC070HK5	500	With thrust detection mechanism	Parallel	0.2		H	700
LPGC070HK6	600	With thrust detection mechanism	Parallel	0.2		H	700
LPGC070HK8	800	With thrust detection mechanism	Parallel	0.2		H	700
LPGC070HT1	100	With thrust detection mechanism	Straight	0.2		H	700
LPGC070HT10	1000	With thrust detection mechanism	Straight	0.2		H	700
LPGC070HT12	1200	With thrust detection mechanism	Straight	0.2		H	700
LPGC070HT2	200	With thrust detection mechanism	Straight	0.2		H	700
LPGC070HT3	300	With thrust detection mechanism	Straight	0.2		H	700
LPGC070HT4	400	With thrust detection mechanism	Straight	0.2		H	700
LPGC070HT5	500	With thrust detection mechanism	Straight	0.2		H	700
LPGC070HT6	600	With thrust detection mechanism	Straight	0.2		H	700
LPGC070HT8	800	With thrust detection mechanism	Straight	0.2		H	700
LPGC070LK1	100	With thrust detection mechanism	Parallel	0.1		L	700
LPGC070LK10	1000	With thrust detection mechanism	Parallel	0.1		L	700
LPGC070LK12	1200	With thrust detection mechanism	Parallel	0.1		L	700
LPGC070LK2	200	With thrust detection mechanism	Parallel	0.1		L	700
LPGC070LK3	300	With thrust detection mechanism	Parallel	0.1		L	700
LPGC070LK4	400	With thrust detection mechanism	Parallel	0.1		L	700
LPGC070LK5	500	With thrust detection mechanism	Parallel	0.1		L	700
LPGC070LK6	600	With thrust detection mechanism	Parallel	0.1		L	700
LPGC070LK8	800	With thrust detection mechanism	Parallel	0.1		L	700
LPGC070LT1	100	With thrust detection mechanism	Straight	0.1		L	700
LPGC070LT10	1000	With thrust detection mechanism	Straight	0.1		L	700
LPGC070LT12	1200	With thrust detection mechanism	Straight	0.1		L	700
LPGC070LT2	200	With thrust detection mechanism	Straight	0.1		L	700
LPGC070LT3	300	With thrust detection mechanism	Straight	0.1		L	700
LPGC070LT4	400	With thrust detection mechanism	Straight	0.1		L	700
LPGC070LT5	500	With thrust detection mechanism	Straight	0.1		L	700
LPGC070LT6	600	With thrust detection mechanism	Straight	0.1		L	700
LPGC070LT8	800	With thrust detection mechanism	Straight	0.1		L	700
LPGC070MK1	100	With thrust detection mechanism	Parallel	0.2		M	700
LPGC070MK10	1000	With thrust detection mechanism	Parallel	0.2		M	700
LPGC070MK12	1200	With thrust detection mechanism	Parallel	0.2		M	700
LPGC070MK2	200	With thrust detection mechanism	Parallel	0.2		M	700
LPGC070MK3	300	With thrust detection mechanism	Parallel	0.2		M	700
LPGC070MK4	400	With thrust detection mechanism	Parallel	0.2		M	700
LPGC070MK5	500	With thrust detection mechanism	Parallel	0.2		M	700
LPGC070MK6	600	With thrust detection mechanism	Parallel	0.2		M	700
LPGC070MK8	800	With thrust detection mechanism	Parallel	0.2		M	700
LPGC070MT1	100	With thrust detection mechanism	Straight	0.2		M	700
LPGC070MT10	1000	With thrust detection mechanism	Straight	0.2		M	700
LPGC070MT12	1200	With thrust detection mechanism	Straight	0.2		M	700
LPGC070MT2	200	With thrust detection mechanism	Straight	0.2		M	700
LPGC070MT3	300	With thrust detection mechanism	Straight	0.2		M	700
LPGC070MT4	400	With thrust detection mechanism	Straight	0.2		M	700
LPGC070MT5	500	With thrust detection mechanism	Straight	0.2		M	700
LPGC070MT6	600	With thrust detection mechanism	Straight	0.2		M	700
LPGC070MT8	800	With thrust detection mechanism	Straight	0.2		M	700
LPGC070UK1	100	With thrust detection mechanism	Parallel	0.4		U	700
LPGC070UK10	1000	With thrust detection mechanism	Parallel	0.4		U	700
LPGC070UK12	1200	With thrust detection mechanism	Parallel	0.4		U	700
LPGC070UK2	200	With thrust detection mechanism	Parallel	0.4		U	700
LPGC070UK3	300	With thrust detection mechanism	Parallel	0.4		U	700
LPGC070UK4	400	With thrust detection mechanism	Parallel	0.4		U	700
LPGC070UK5	500	With thrust detection mechanism	Parallel	0.4		U	700
LPGC070UK6	600	With thrust detection mechanism	Parallel	0.4		U	700
LPGC070UK8	800	With thrust detection mechanism	Parallel	0.4		U	700
LPGC070UT1	100	With thrust detection mechanism	Straight	0.4		U	700
LPGC070UT10	1000	With thrust detection mechanism	Straight	0.4		U	700
LPGC070UT12	1200	With thrust detection mechanism	Straight	0.4		U	700
LPGC070UT2	200	With thrust detection mechanism	Straight	0.4		U	700
LPGC070UT3	300	With thrust detection mechanism	Straight	0.4		U	700
LPGC070UT4	400	With thrust detection mechanism	Straight	0.4		U	700
LPGC070UT5	500	With thrust detection mechanism	Straight	0.4		U	700
LPGC070UT6	600	With thrust detection mechanism	Straight	0.4		U	700
LPGC070UT8	800	With thrust detection mechanism	Straight	0.4		U	700
LPGC100HK1	100	With thrust detection mechanism	Parallel	0.2		H	1000
LPGC100HK10	1000	With thrust detection mechanism	Parallel	0.2		H	1000
LPGC100HK12	1200	With thrust detection mechanism	Parallel	0.2		H	1.00k
LPGC100HK2	200	With thrust detection mechanism	Parallel	0.2		H	1000
LPGC100HK3	300	With thrust detection mechanism	Parallel	0.2		H	1000
LPGC100HK4	400	With thrust detection mechanism	Parallel	0.2		H	1000
LPGC100HK5	500	With thrust detection mechanism	Parallel	0.2		H	1000
LPGC100HK6	600	With thrust detection mechanism	Parallel	0.2		H	1.00K
LPGC100HK8	800	With thrust detection mechanism	Parallel	0.2		H	1000
LPGC100HT1	100	With thrust detection mechanism	Straight	0.2		H	1.00K
LPGC100HT10	1000	With thrust detection mechanism	Straight	0.2	2.20	H	1.00K
LPGC100HT12	1200	With thrust detection mechanism	Straight	0.2		H	1000
LPGC100HT2	200	With thrust detection mechanism	Straight	0.2		H	1000
LPGC100HT3	300	With thrust detection mechanism	Straight	0.2		H	1000
LPGC100HT4	400	With thrust detection mechanism	Straight	0.2		H	1.00K
LPGC100HT5	500	With thrust detection mechanism	Straight	0.2		H	1000
LPGC100HT6	600	With thrust detection mechanism	Straight	0.2		H	1000
LPGC100HT8	800	With thrust detection mechanism	Straight	0.2		H	1000
LPGC100LK1	100	With thrust detection mechanism	Parallel	0.1		L	1.00k
LPGC100LK10	1000	With thrust detection mechanism	Parallel	0.1		L	1000
LPGC100LK12	1200	With thrust detection mechanism	Parallel	0.1		L	1000
LPGC100LK2	200	With thrust detection mechanism	Parallel	0.1		L	1000
LPGC100LK3	300	With thrust detection mechanism	Parallel	0.1		L	1000
LPGC100LK4	400	With thrust detection mechanism	Parallel	0.1		L	1000
LPGC100LK5	500	With thrust detection mechanism	Parallel	0.1		L	1000
LPGC100LK6	600	With thrust detection mechanism	Parallel	0.1		L	1000
LPGC100LK8	800	With thrust detection mechanism	Parallel	0.1		L	1000
LPGC100LT1	100	With thrust detection mechanism	Straight	0.1		L	1.00K

How to Order

Confirm the thrust, stroke, speed and mounting style. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

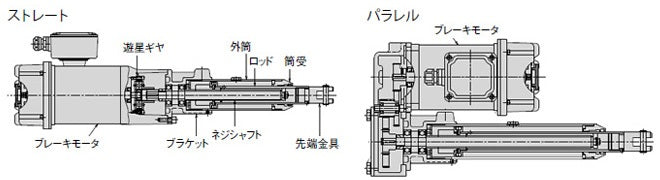

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

Genuine TSUBAKI product sourced through Korean distribution
Ships worldwide from South Korea by FedEx International Priority Express
Lead time varies by model; please inquire for exact delivery
Import duties and taxes are payable by the recipient
Bulk and trade pricing available on request
High-value or heavy item: online checkout is disabled. Please request a quote for freight and pricing.
