TSUBAKI Power Cylinder, LPGB (Part 1)

Description

TSUBAKI LPGB — Power Cylinder, genuine TSUBAKI product.

Overview

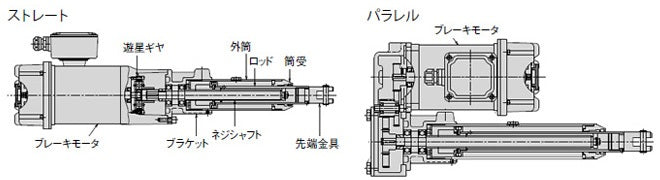

The TSUBAKI Power Cylinder is an electric linear actuator that uses a motor-driven screw to produce push and pull motion. It replaces hydraulic or pneumatic cylinders where clean, controllable operation is preferred. It is used in gate and damper operation, lifting, tilting and positioning equipment in industrial plants.

Key Features

  • Electric motor-driven linear motion
  • No hydraulic or pneumatic supply needed
  • Holds position when stopped

Specifications

Part No. Stroke (mm) Type Body Shape Motor Capacity (kW) Normal Torque (N·m) Speed Code Rated Thrust (N)
LPGB070HK1 100 With torque limiter Parallel 0.4 H 700
LPGB070HK10 1000 With torque limiter Parallel 0.4 H 700
LPGB070HK12 1200 With torque limiter Parallel 0.4 H 700
LPGB070HK2 200 With torque limiter Parallel 0.4 H 700
LPGB070HK3 300 With torque limiter Parallel 0.4 H 700
LPGB070HK4 400 With torque limiter Parallel 0.4 H 700
LPGB070HK5 500 With torque limiter Parallel 0.4 H 700
LPGB070HK6 600 With torque limiter Parallel 0.4 H 700
LPGB070HK8 800 With torque limiter Parallel 0.4 1.54 H 700
LPGB070LK1 100 With torque limiter Parallel 0.1 L 700
LPGB070LK10 1000 With torque limiter Parallel 0.1 L 700
LPGB070LK12 1200 With torque limiter Parallel 0.1 L 700
LPGB070LK2 200 With torque limiter Parallel 0.1 L 700
LPGB070LK3 300 With torque limiter Parallel 0.1 L 700
LPGB070LK4 400 With torque limiter Parallel 0.1 L 700
LPGB070LK5 500 With torque limiter Parallel 0.1 L 700
LPGB070LK6 600 With torque limiter Parallel 0.1 L 700
LPGB070LK8 800 With torque limiter Parallel 0.1 L 700
LPGB070MK1 100 With torque limiter Parallel 0.2 M 700
LPGB070MK10 1000 With torque limiter Parallel 0.2 2.31 M 700
LPGB070MK12 1200 With torque limiter Parallel 0.2 M 700
LPGB070MK2 200 With torque limiter Parallel 0.2 M 700
LPGB070MK3 300 With torque limiter Parallel 0.2 M 700
LPGB070MK4 400 With torque limiter Parallel 0.2 M 700
LPGB070MK5 500 With torque limiter Parallel 0.2 M 700
LPGB070MK6 600 With torque limiter Parallel 0.2 M 700
LPGB070MK8 800 With torque limiter Parallel 0.2 M 700
LPGB070UK1 100 With torque limiter Parallel 0.4 U 700
LPGB070UK10 1000 With torque limiter Parallel 0.4 U 700
LPGB070UK12 1200 With torque limiter Parallel 0.4 U 700
LPGB070UK2 200 With torque limiter Parallel 0.4 U 700
LPGB070UK3 300 With torque limiter Parallel 0.4 U 700
LPGB070UK4 400 With torque limiter Parallel 0.4 U 700
LPGB070UK5 500 With torque limiter Parallel 0.4 U 700
LPGB070UK6 600 With torque limiter Parallel 0.4 U 700
LPGB070UK8 800 With torque limiter Parallel 0.4 0.99 U 700
LPGB100HK1 100 With torque limiter Parallel 0.4 H 1.00K
LPGB100HK10 1000 With torque limiter Parallel 0.4 H 1000
LPGB100HK12 1200 With torque limiter Parallel 0.4 H 1.00K
LPGB100HK2 200 With torque limiter Parallel 0.4 H 1.00k
LPGB100HK3 300 With torque limiter Parallel 0.4 H 1000
LPGB100HK4 400 With torque limiter Parallel 0.4 H 1000
LPGB100HK5 500 With torque limiter Parallel 0.4 H 1.00k
LPGB100HK6 600 With torque limiter Parallel 0.4 H 1000
LPGB100HK8 800 With torque limiter Parallel 0.4 2.20 H 1.00K
LPGB100LK1 100 With torque limiter Parallel 0.1 L 1000
LPGB100LK10 1000 With torque limiter Parallel 0.1 L 1000
LPGB100LK12 1200 With torque limiter Parallel 0.1 L 1000
LPGB100LK2 200 With torque limiter Parallel 0.1 L 1000
LPGB100LK3 300 With torque limiter Parallel 0.1 L 1000
LPGB100LK4 400 With torque limiter Parallel 0.1 L 1000
LPGB100LK5 500 With torque limiter Parallel 0.1 L 1000
LPGB100LK6 600 With torque limiter Parallel 0.1 L 1000
LPGB100LK8 800 With torque limiter Parallel 0.1 L 1.00k
LPGB100MK1 100 With torque limiter Parallel 0.2 M 1000
LPGB100MK10 1000 With torque limiter Parallel 0.2 3.29 M 1.00K
LPGB100MK12 1200 With torque limiter Parallel 0.2 M 1000
LPGB100MK2 200 With torque limiter Parallel 0.2 M 1000
LPGB100MK3 300 With torque limiter Parallel 0.2 M 1000
LPGB100MK4 400 With torque limiter Parallel 0.2 M 1.00k
LPGB100MK5 500 With torque limiter Parallel 0.2 M 1000
LPGB100MK6 600 With torque limiter Parallel 0.2 M 1000
LPGB100MK8 800 With torque limiter Parallel 0.2 M 1000
LPGB100UK1 100 With torque limiter Parallel 0.4 U 1.00K
LPGB100UK10 1000 With torque limiter Parallel 0.4 U 1000
LPGB100UK12 1200 With torque limiter Parallel 0.4 U 1.00K
LPGB100UK2 200 With torque limiter Parallel 0.4 U 1.00k
LPGB100UK3 300 With torque limiter Parallel 0.4 U 1000
LPGB100UK4 400 With torque limiter Parallel 0.4 U 1000
LPGB100UK5 500 With torque limiter Parallel 0.4 U 1.00k
LPGB100UK6 600 With torque limiter Parallel 0.4 U 1000
LPGB100UK8 800 With torque limiter Parallel 0.4 1.41 U 1.00K
LPGB150HK1 100 With torque limiter Parallel 0.4 H 1.50K
LPGB150HK10 1000 With torque limiter Parallel 0.4 H 1500
LPGB150HK12 1200 With torque limiter Parallel 0.4 H 1.50k
LPGB150HK2 200 With torque limiter Parallel 0.4 H 1.50k
LPGB150HK3 300 With torque limiter Parallel 0.4 H 1500
LPGB150HK4 400 With torque limiter Parallel 0.4 H 1500
LPGB150HK5 500 With torque limiter Parallel 0.4 H 1.50k
LPGB150HK6 600 With torque limiter Parallel 0.4 H 1500
LPGB150HK8 800 With torque limiter Parallel 0.4 4.94 H 1.50K
LPGB150LK1 100 With torque limiter Parallel 0.2 L 1500
LPGB150LK10 1000 With torque limiter Parallel 0.2 L 1.50k
LPGB150LK12 1200 With torque limiter Parallel 0.2 L 1500
LPGB150LK2 200 With torque limiter Parallel 0.2 L 1500
LPGB150LK3 300 With torque limiter Parallel 0.2 L 1500
LPGB150LK4 400 With torque limiter Parallel 0.2 L 1.50k
LPGB150LK5 500 With torque limiter Parallel 0.2 L 1500
LPGB150LK6 600 With torque limiter Parallel 0.2 L 1500
LPGB150LK8 800 With torque limiter Parallel 0.2 L 1500
LPGB150MK1 100 With torque limiter Parallel 0.4 M 1500
LPGB150MK10 1000 With torque limiter Parallel 0.4 M 1500
LPGB150MK12 1200 With torque limiter Parallel 0.4 M 1.50k
LPGB150MK2 200 With torque limiter Parallel 0.4 M 1.50k
LPGB150MK3 300 With torque limiter Parallel 0.4 M 1.50k
LPGB150MK4 400 With torque limiter Parallel 0.4 M 1500
LPGB150MK5 500 With torque limiter Parallel 0.4 M 1.50k
LPGB150MK6 600 With torque limiter Parallel 0.4 M 1500
LPGB150MK8 800 With torque limiter Parallel 0.4 4.94 M 1.50K
LPGB300HK1 100 With torque limiter Parallel 0.4 H 3000

How to Order

Confirm the thrust, stroke, speed and mounting style. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

  • Genuine TSUBAKI product sourced through Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Lead time varies by model; please inquire for exact delivery
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
  • High-value or heavy item: online checkout is disabled. Please request a quote for freight and pricing.
