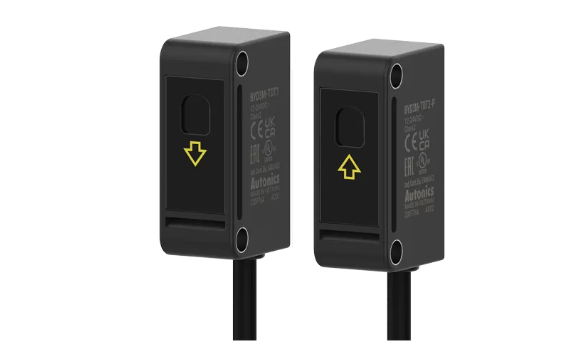

Autonics Photoelectric Sensor, Photoelectric Type BYD3M-TDT-P

Description

Sensing type Through-beam type
Sensing distance 3m
Sensing target Opaque material of min. Ø6mm
Response time Max. 1ms
Light source Infrared LED
Operation mode Dark ON
Weight Approx. 105g(approx. 80g)
Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
Current consumption Emitter/Receiver: Max. 30mA
Control output PNP open collector
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -20 to 65℃, storage: -25 to 70℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Protection structure IP64
Connection type Cable type(Ø3.5, 2m)
Material Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate
Product form

Sensing type Through-beam type Sensing distance 3m Sensing target Opaque material of min. Ø6mm Response time Max. 1ms Light source... Read more

SKU: BYD3M-TDT-P

$25.50 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    Sensing type Through-beam type
    Sensing distance 3m
    Sensing target Opaque material of min. Ø6mm
    Response time Max. 1ms
    Light source Infrared LED
    Operation mode Dark ON
    Weight Approx. 105g(approx. 80g)
    Power voltage 12-24VDC specialstring ±10%(ripple P-P: max. 10%)
    Current consumption Emitter/Receiver: Max. 30mA
    Control output PNP open collector
    Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
    Environment_Ambient temperature -20 to 65℃, storage: -25 to 70℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Protection structure IP64
    Connection type Cable type(Ø3.5, 2m)
    Material Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate
