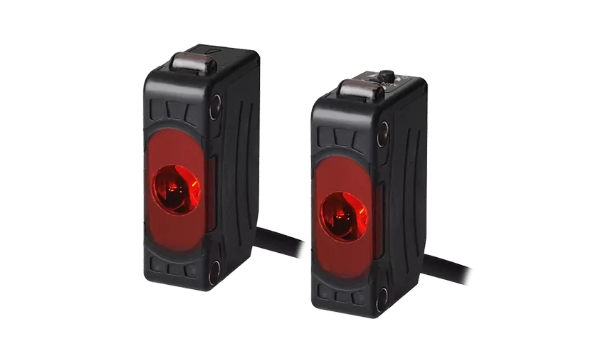

| Sensing type |
Through-beam type |
| Sensing distance |
10m |
| Sensing target |
Opaque material of min. Ø12mm |
| Light source |
Red LED(660nm) |
| Response time |
Max. 1ms |
| Power voltage |
12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption |
Emitter/Receiver: Max. 20mA |
| Sensitivity adjustment |
Sensitivity adjuster |
| Operation mode |
Light ON/Dark ON(set by switch) |
| Control output |
NPN open collector |
| Connection type |
Cable type(Ø3.5, 2m) |
| Environment_Ambient illumination |
Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature |
-25 to 55℃, storage: -40 to 70℃ |
| Protection structure |
IP65 |
| Environment_Ambient humidity |
35 to 85% RH, storage: 35 to 85% RH |
| Material |
Case: Polycarbonate+Acrylonitrile butadiene styrene, LED Cap: Polycarbonate, Sensing part: Polymethyl methacrylate,
Bracket: SUS304(steel use stainless 304), Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum,
Sleeve: Brass, Ni-plate |
| Accessories_Common |
Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver |
| Weight |
Approx. 115g (approx. 90g) |
