Peacock Dial Thickness Gauges G-3

  • VendorPEACOCK

Description

Peacock Dial Thickness Gauges G-3

  • These thickness gauges are especially handy for measuring thickness of small parts, metal, rubber, vinyl, paper, foil and other sheet material.
  • The objects to be measured is clamped by simple lever operation.
  • The measured values are read directly on the dial gauge.
  • Since the anvil and the contact point are adjusted for parallelism, accurate measured values are obtained.
Model G-3
Graduation 0.01mm
Range 30mm (Anvil 20mm )

  • Ø10mm flat contact point and anvil (ceramic)
  • Anvil side is adjustable



Specifications
Model Graduation(mm) Range (mm) Throat depth (mm) Accuracy (µm) Contact Point Measuring force less than (N)
Dia (mm) Parallelism (µm)
G-3 0.01 30 (Anvil 20mm) 20 ±20 10 5 1.8

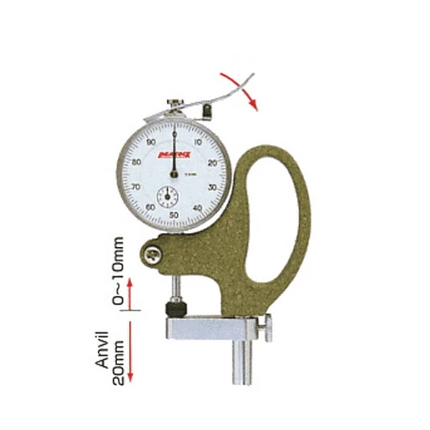

[PEACOCK] Dial Thickness Gauges G-3

Product form

Peacock Dial Thickness Gauges G-3 These thickness gauges are especially handy for measuring thickness of small parts, metal, rubber, vinyl,... Read more

SKU: G-3

$375.49 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    Peacock Dial Thickness Gauges G-3

    • These thickness gauges are especially handy for measuring thickness of small parts, metal, rubber, vinyl, paper, foil and other sheet material.
    • The objects to be measured is clamped by simple lever operation.
    • The measured values are read directly on the dial gauge.
    • Since the anvil and the contact point are adjusted for parallelism, accurate measured values are obtained.
    Model G-3
    Graduation 0.01mm
    Range 30mm (Anvil 20mm )

    • Ø10mm flat contact point and anvil (ceramic)
    • Anvil side is adjustable



    Specifications
    Model Graduation(mm) Range (mm) Throat depth (mm) Accuracy (µm) Contact Point Measuring force less than (N)
    Dia (mm) Parallelism (µm)
    G-3 0.01 30 (Anvil 20mm) 20 ±20 10 5 1.8



    [PEACOCK] Dial Thickness Gauges G-3
