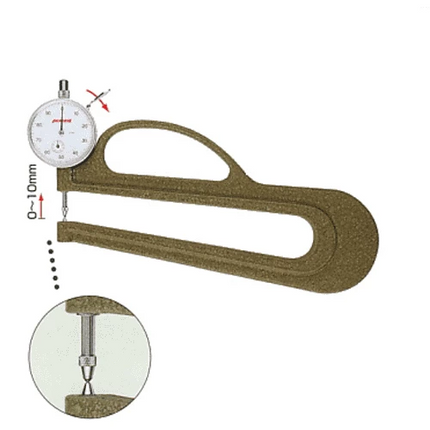

Peacock Dial Thickness Gauges H-2

  • VendorPEACOCK

Description

Peacock Dial Thickness Gauges H-2

  • These thickness gauges are especially handy for measuring thickness of small parts, metal, rubber, vinyl, paper, foil and other sheet material.
  • The objects to be measured is clamped by simple lever operation.
  • The measured values are read directly on the dial gauge.
  • Since the anvil and the contact point are adjusted for parallelism, accurate measured values are obtained.
    Model H-2
    Graduation 0.01mm
    Range 0~10mm
    • Spherical contact point and anvil



    Specifications
    Model Graduation(mm) Range (mm) Throat depth (mm) Accuracy (µm) Contact Point Measuring force less than (N)
    Dia (mm) Parallelism (µm)
    H-2 0.01 0~10 170 ±20 Spherical -- 1.8



     [PEACOCK] Dial Thickness Gauges H-2



    Product form

    Peacock Dial Thickness Gauges H-2 These thickness gauges are especially handy for measuring thickness of small parts, metal, rubber, vinyl,... Read more

    SKU: H-2

    $426.36 Excl. VAT

      • Ships within 5–10 business days
      • Ships from South Korea
      • Export packing available
      • Worldwide shipping
      • Secure payments Paypal

      Description

      Peacock Dial Thickness Gauges H-2

      • These thickness gauges are especially handy for measuring thickness of small parts, metal, rubber, vinyl, paper, foil and other sheet material.
      • The objects to be measured is clamped by simple lever operation.
      • The measured values are read directly on the dial gauge.
      • Since the anvil and the contact point are adjusted for parallelism, accurate measured values are obtained.
        Model H-2
        Graduation 0.01mm
        Range 0~10mm
        • Spherical contact point and anvil



        Specifications
        Model Graduation(mm) Range (mm) Throat depth (mm) Accuracy (µm) Contact Point Measuring force less than (N)
        Dia (mm) Parallelism (µm)
        H-2 0.01 0~10 170 ±20 Spherical -- 1.8



         [PEACOCK] Dial Thickness Gauges H-2
