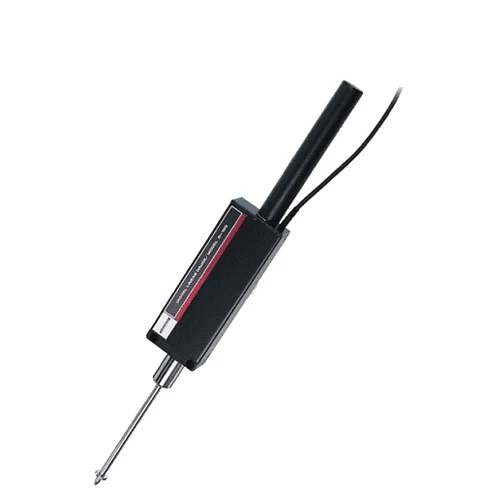

Peacock Linear Gauges ; Measurement range 0 - 100mm , D-100

VendorPEACOCK

Product form

Peacock Linear Gauges ; Measurement range 0 - 100mm , D-100 Model D-100 Resolution 0.01mm Range 0 - 100mm With... Read more

SKU: D-100

$1,447.01 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Reviews

Name: Peacock Linear Gauges ; Measurement range 0 - 100mm , D-100
Brand: PEACOCK
SKU: D-100
Price: 1447.01 USD
Availability: InStock

Peacock Linear Gauges ; Measurement range 0 - 100mm , D-100

0 out of 5 stars

This product has no reviews yet

Write a review

Specifications
Model		D-100
Range		100mm
Resolution		0.01mm
Accuracy (excluding quantized error)		0.01mm

Measuring force		Less than 3.5N
Cable length		2m
Mounting method		ø 20mm stem or fastening by M4 screws at two positions
Contact point		M2.5 × 0.45 Sø 2.4mm steel
Operating temperature		0 - 40ºC
Weight		520g
Output signal		90º phase difference, 20µm pitch (R03-PB8M Tajimi connector)
Compatible standard counters		C-500 / C-700 / CM-5B
Accessories		Finger lever for lifting spindle ---> 1 pc
Featuares		If Spindle inner spring is removed, measuring force will be that of spindle itself (only when in upright position) D-50 , D-50S ---> 1.0N D-100 , D-100S ---> 1.1N Recommended stand is PDS-2



Option		Level mounting clamp ( GB-50 ) Customer must specify if application is up-side-down. The measuring force changes when the gauge is inverted.
